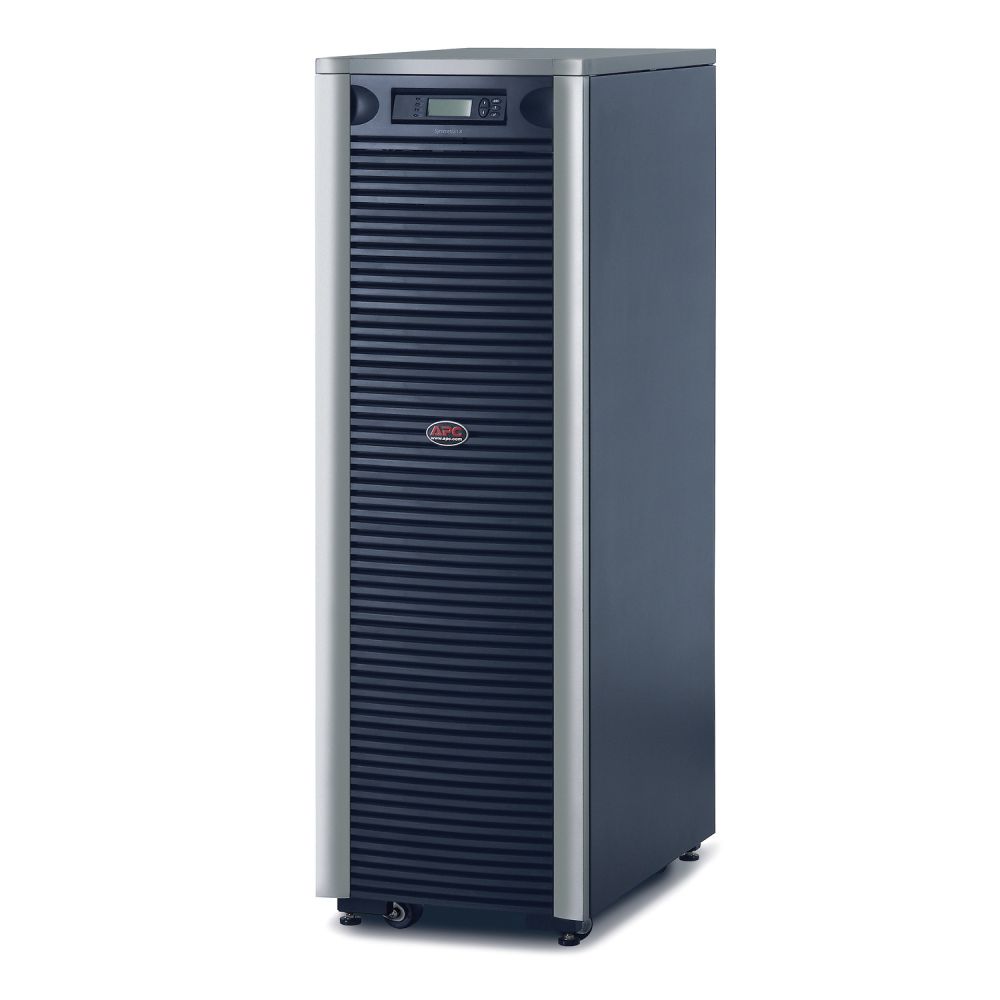

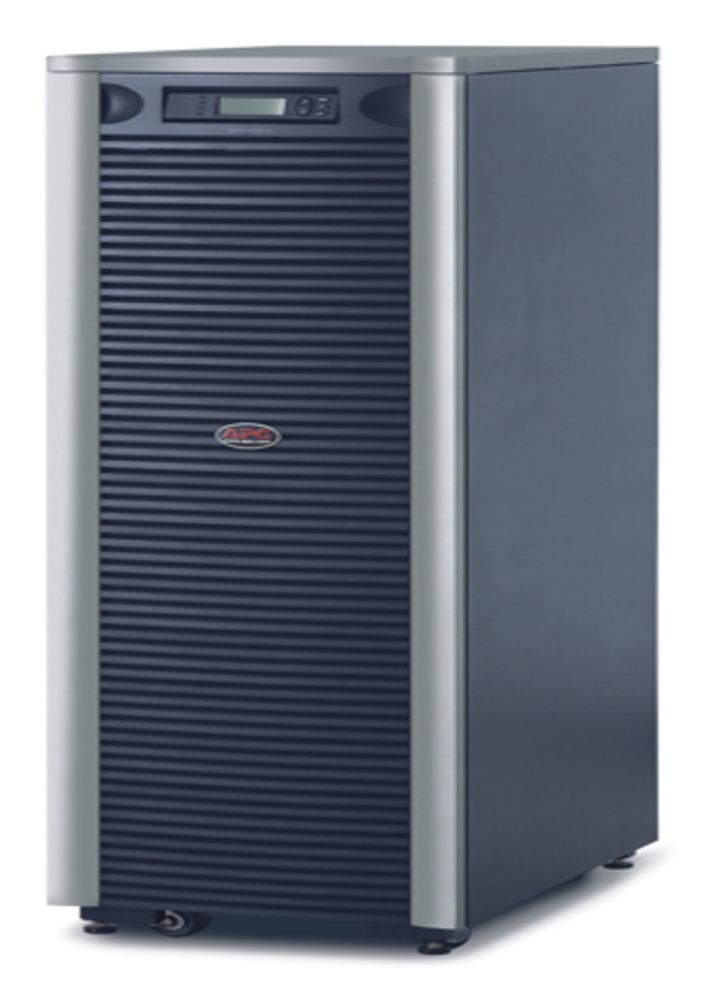

APC SYA12K16IXR SYMMETRA LX 8KVA TO 16KVA
|
26.980,00 EUR |
|
|
( 32.106,20 EUR incl. VAT ) ≈ £22,906.02 | ≈ $30,406.46 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1688676 |
|---|---|
| Mfg Part No: | SYA12K16IXR |
| UPC/EAN: | 0731304308102 |
| Weight: | 543 kg |
| Type: | ACCS |
Product information for APC SYA12K16IXR:
| Battery | |
| Battery replacement accessibility | End-user |
| Typical backup time at full load | 35.4 min |
| Typical backup time at half load | 77.4 min |
| Battery recharge time | 7.5 h |
| Replacement battery cartridge | SYBT5 |
| Certificates | |
| Compliance certificates | RoHS, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | |
| Design | |
| Product colour | Black, Silver |
| Features | |
| Output power capacity | 12 kVA |
| Output power | 8400 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Country of origin | Philippines |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Other features | |
| I/O ports | Pre-Installed SmartSlot Cards - AP9619 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 480 x 730 x 1520 mm |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Networking features | Y |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output voltage | 220 V |
| Mounting | front |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Power | |
| Input current (max) | 55 A |
| Technical details | |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Sustainable packaging | |
| Take-back system | |
| Packaging without single use plastic | |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 1516 mm |
| Weight | 488.6 kg |
