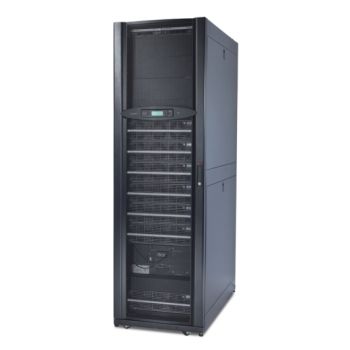

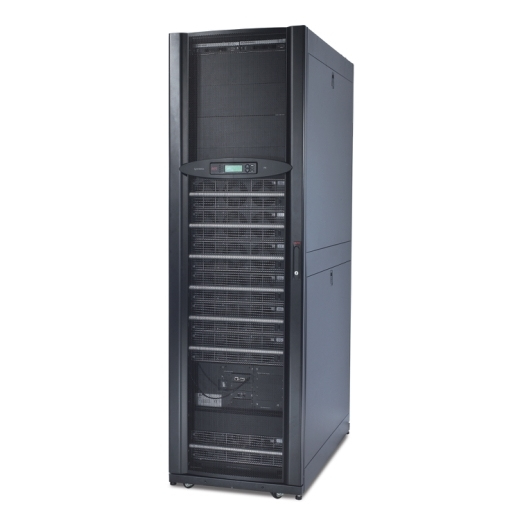

APC SY96K96H-NB Symmetra PX 96 kW without bypass distribution or batteries, 400 V, 3-phase, RS-232, 1 PFC, BK,
|
43.795,00 EUR |
|
|
( 52.116,05 EUR incl. VAT ) ≈ £36,875.39 | ≈ $49,181.79 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2213645 |
| Mfg Part No: | SY96K96H-NB |
| UPC/EAN: | 0731304832461 |
| Weight: | 547 kg |
| Type: | ACCS |
Product information for APC SY96K96H-NB:
| Certificates | |
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Design | |
| Form factor | Tower |
| Rack capacity | 42U |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 160 kVA |
| Output power | 160000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | +/- 3 Hz |
| Maximum current | 240 A |
| Number of output phases | 3 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 63 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Package weight | 547 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| RS-232 ports | 1 |
| SmartSlot | |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 496 kg |
Questions & answers
What is the delivery time of APC SY96K96H-NB Symmetra PX 96 kW without bypass distribution or batteries, 400 V, 3-phase, RS-232, 1 PFC, BK, ?
The article APC SY96K96H-NB Symmetra PX 96 kW without bypass distribution or batteries, 400 V, 3-phase, RS-232, 1 PFC, BK, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SY96K96H-NB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC SY96K96H-NB Symmetra PX 96 kW without bypass distribution or batteries, 400 V, 3-phase, RS-232, 1 PFC, BK, always at the best possible price. We can give you a discount of 2% on APC SY96K96H-NB Symmetra PX 96 kW without bypass distribution or batteries, 400 V, 3-phase, RS-232, 1 PFC, BK, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
