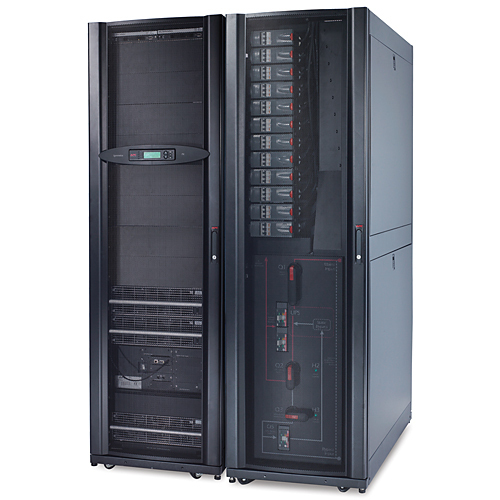

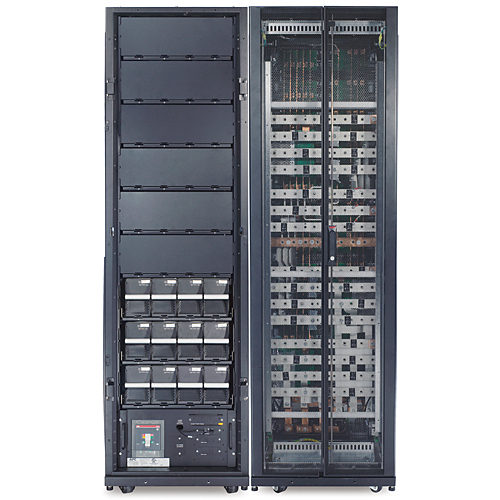

APC Symmetra PX 32kW Scalable to 96kW 400V with Modular
|
50.825,00 EUR |
|
|
( 60.481,75 EUR incl. VAT ) ≈ £42,540.53 | ≈ $56,873.18 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1688977 |
|---|---|
| Mfg Part No: | SY32K96H-PD |
| Weight: | 1189 kg |
| Type: | ACCS |
Product information for APC SY32K96H-PD:
| Battery | |
| Battery recharge time | 3.50 h |
| Hot-swap battery | |
| Certificates | |
| Certification | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Design | |
| Product colour | Black |
| Display type | LCD |
| Features | |
| Output power capacity | 96 kVA |
| Output power | 96000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 59 A |
| Efficiency | 95% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 61 dB |
| Power protection features | Over current, Overload |
| Emergency Power Off (EPO) | |
| EMI/RFI noise filtering | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Number of phases | 3 |
| Battery type | VRLA |
| Interface | 2 x SmartSlot |
| Nominal output voltage | 400 V |
| Output voltage note | 380: 400 / 415 V 3 Ph |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 1696 x 1210 x 2140 mm |
| Overload protection | |
| Packaging data | |
| Package weight | 1963 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Weight & dimensions | |
| Width | 1200 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 1814 kg |
Questions & answers
What is the delivery time of APC Symmetra PX 32kW Scalable to 96kW 400V with Modular?
The article APC Symmetra PX 32kW Scalable to 96kW 400V with Modular is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SY32K96H-PD to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Symmetra PX 32kW Scalable to 96kW 400V with Modular always at the best possible price. We can give you a discount of 2% on APC Symmetra PX 32kW Scalable to 96kW 400V with Modular if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
