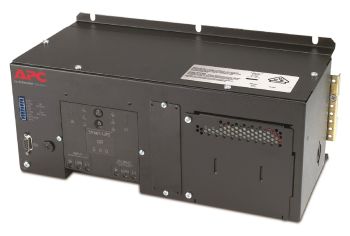

APC SUA500PDRI DIN-Rail-Panel-Mount-UPS
|
-7% 521,55 EUR 560,92 EUR |
|
|
( 620,64 EUR incl. VAT ) ≈ £436.54 | ≈ $583.61 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1167958 |
| Mfg Part No: | SUA500PDRI |
| UPC/EAN: | 0731304290841 |
| Weight: | 9.34 kg |
| Type: | ACCS |
Product information for APC SUA500PDRI:
| Battery | |
| Number of batteries supported | 1 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, VDE |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.5 kVA |
| Output power | 325 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 47/53 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 94% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Surge protection | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 441.6 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 297 mm |
| Package depth | 481 mm |
| Package height | 297 mm |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| AC outlets quantity | 0 AC outlet(s) |
| RS-232 ports | 1 |
| Weight & dimensions | |
| Width | 362 mm |
| Depth | 171 mm |
| Height | 148 mm |
Questions & answers
What is the delivery time of APC SUA500PDRI DIN-Rail-Panel-Mount-UPS?
The article APC SUA500PDRI DIN-Rail-Panel-Mount-UPS is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SUA500PDRI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC SUA500PDRI DIN-Rail-Panel-Mount-UPS always at the best possible price. We can give you a discount of 2% on APC SUA500PDRI DIN-Rail-Panel-Mount-UPS if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
