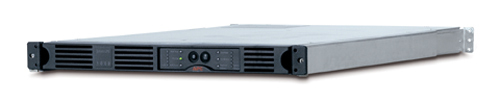

APC Smart-UPS SUA1000RMI1U Line-interactive UPS - 1000 VA/640 W - 1U - Sealed Lead Acid content_copy

APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.

With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (all major operating systems are supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS is a UPS you can count on.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	216 VAh
Typical backup time at full load	5.4 min
Typical backup time at half load	14.5 min
Battery life (max)	6 year(s)
Battery recharge time	2 h
Hot-swap battery
Automatic battery test
Certificates
Compliance certificates	RoHS
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI
Design
Form factor	Rackmount
Rack capacity	1U
Product colour	Black
LED indicators	Battery replacement
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	640 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Surge energy rating	480 J
Noise level	55 dB
Surge protection
Audible alarm(s)
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Interface	DB-9 RS-232, SmartSlot, USB
Input connection type	IEC-320 C14
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content
Cables included	RS-232, USB cable
Rack mount kit
Manual
Packaging data
Package width	559 mm
Package depth	775 mm
Package height	191 mm
Package weight	25.4 kg
Software CD
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Serial interface type	RS-232
USB port
Serial interface
SmartSlot
Weight & dimensions
Width	432 mm
Depth	660 mm
Height	44 mm
Weight	21.8 kg

---
