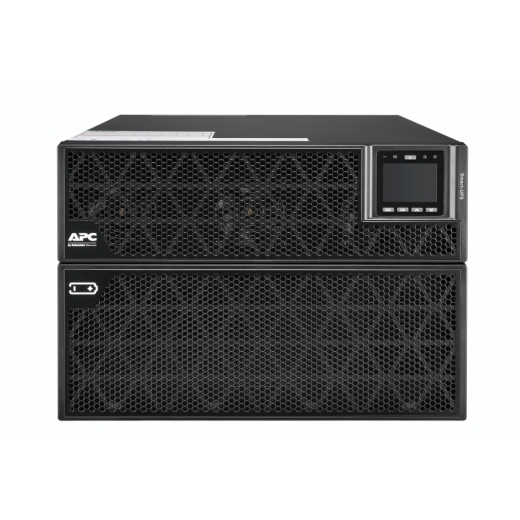

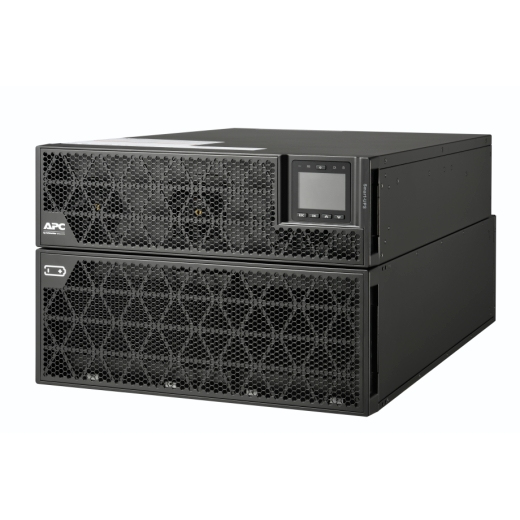

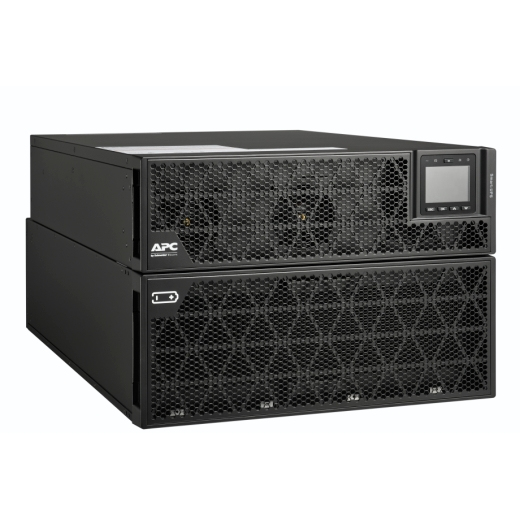

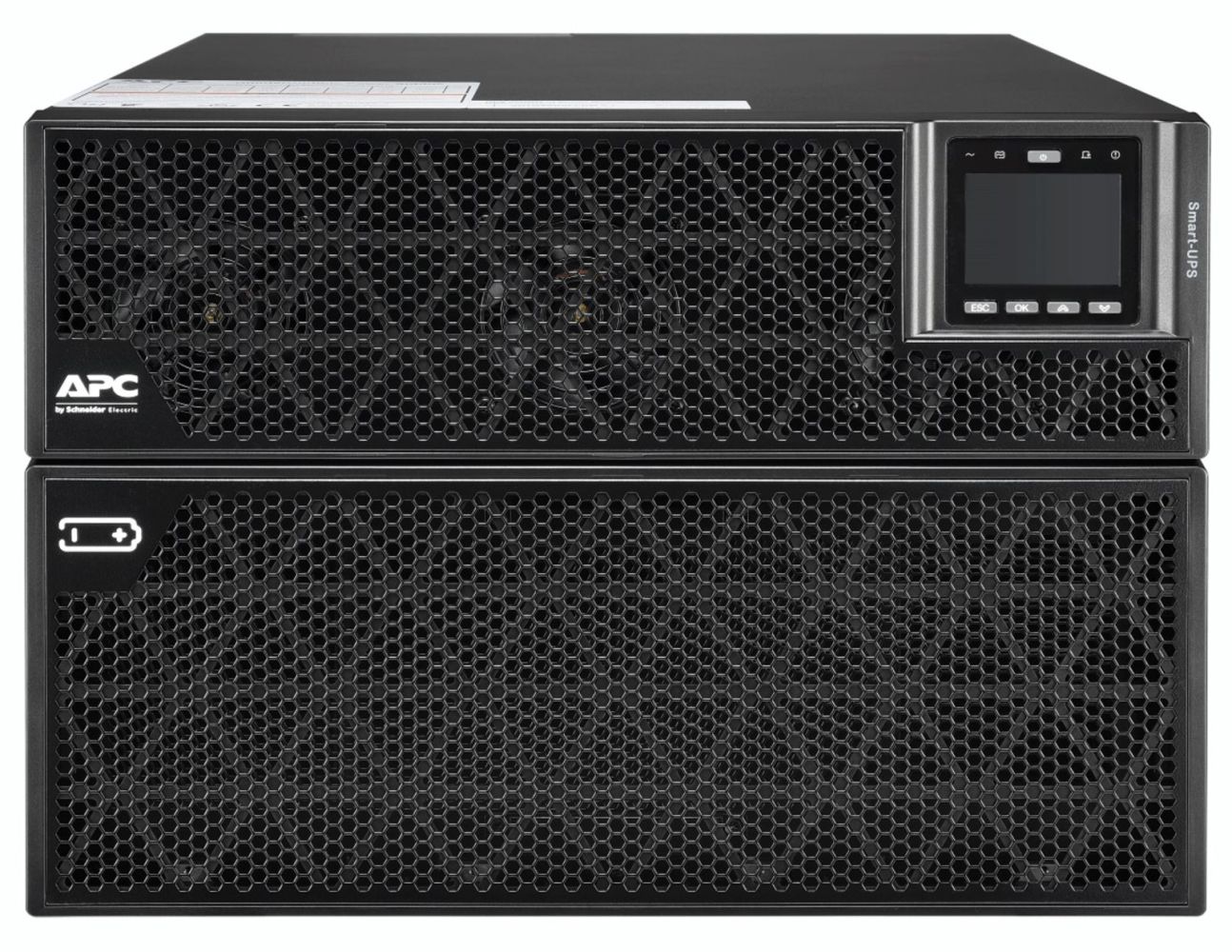

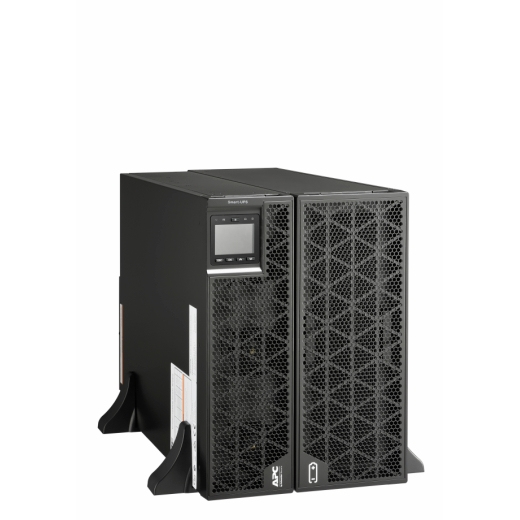

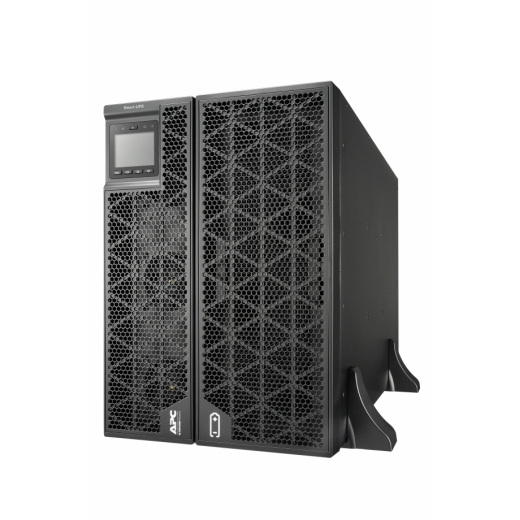

APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black
|
26.536,35 EUR 27.653,67 EUR |
|||||||||||
|
( 31.578,26 EUR incl. VAT ) ≈ £22,396.68 | ≈ $29,720.71 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2145674 | ||||||||||
| Mfg Part No: | SRTG20KXLI | ||||||||||
| UPC/EAN: | 0731304411901 | ||||||||||
| Weight: | 198 kg | ||||||||||
| Type: | SRTG20KXLI | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC SRTG20KXLI:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 192 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Cold start | |
| Design | |

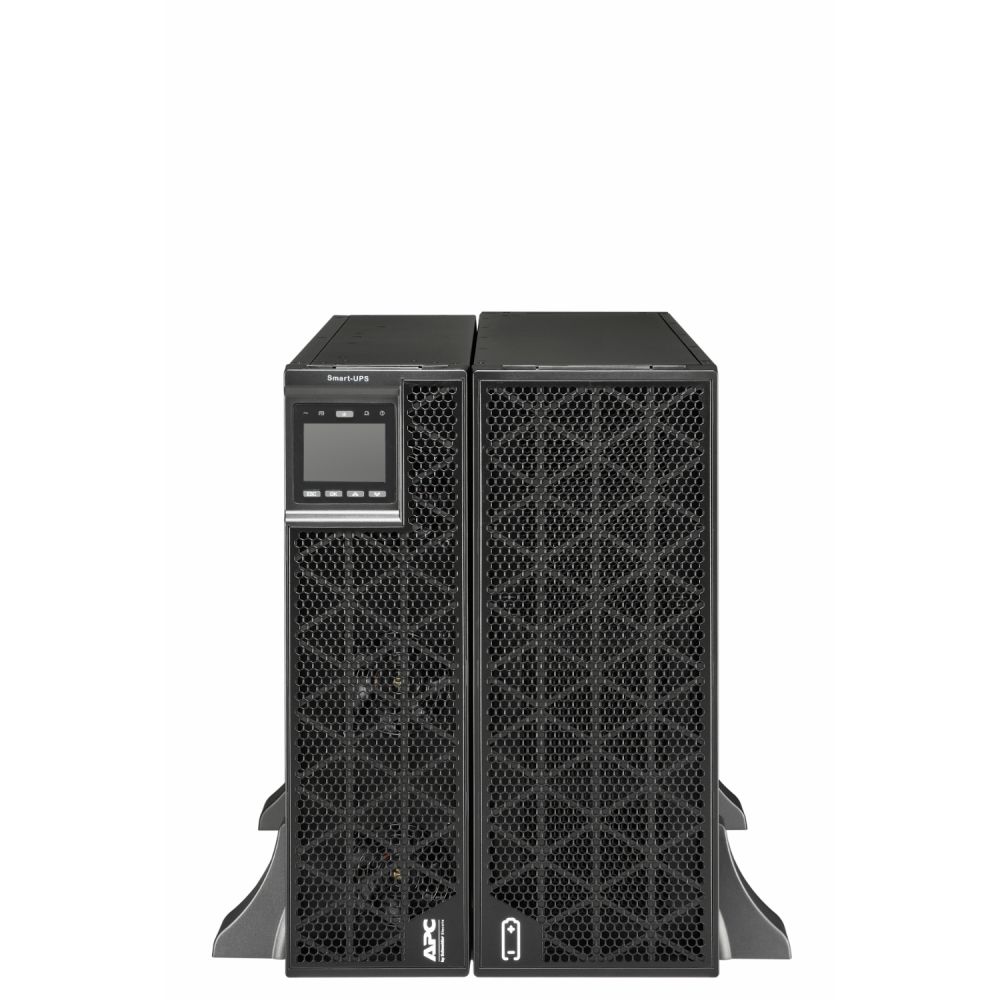

| Form factor | Rackmount/Tower |
| Product colour | Black |

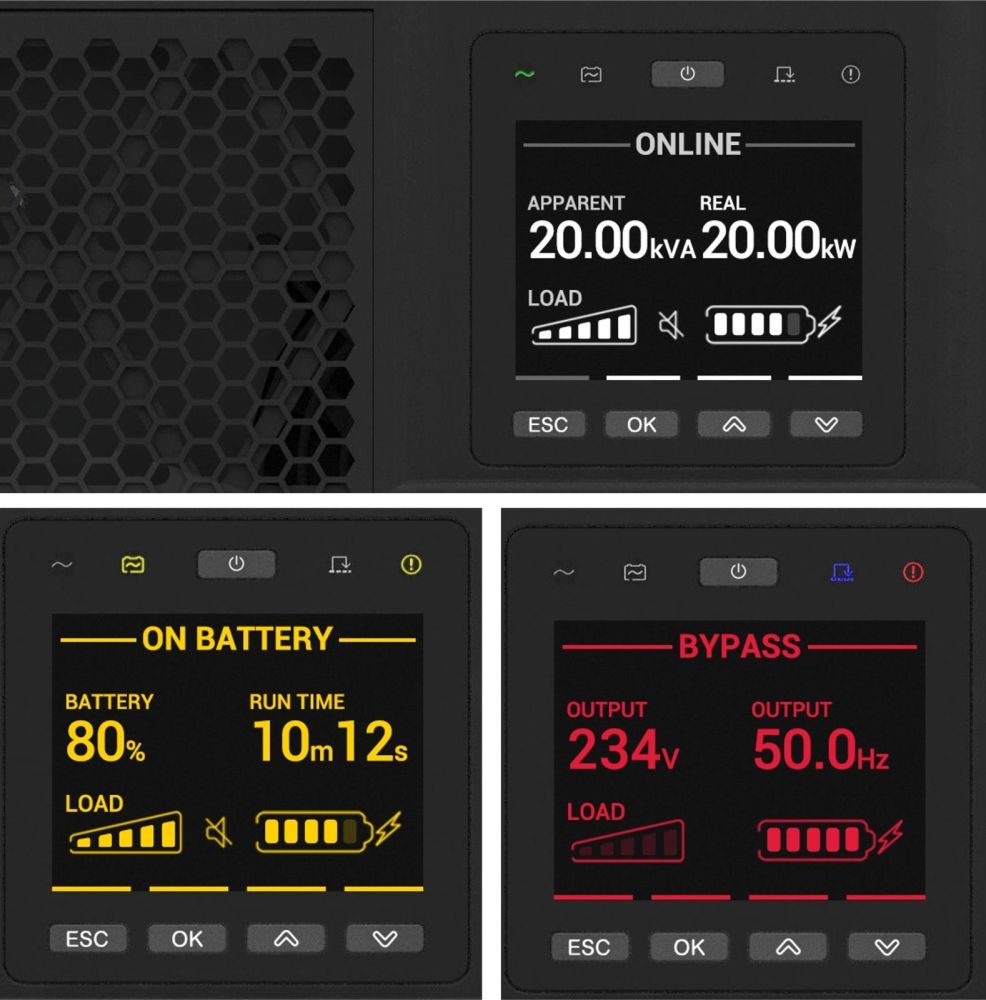

| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.1 Hz |
| Maximum current | 87 A |
| Number of output phases | 3 |
| Efficiency | 93% |
| Crest factor | 3:1 |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 58 dB |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Emergency Power Off (EPO) | |
| Surge protection | |
| Audible alarm(s) | |
| Auto-restart | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011.68 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
| Cables included | RS-232 |
| Management card included | |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 535 mm |

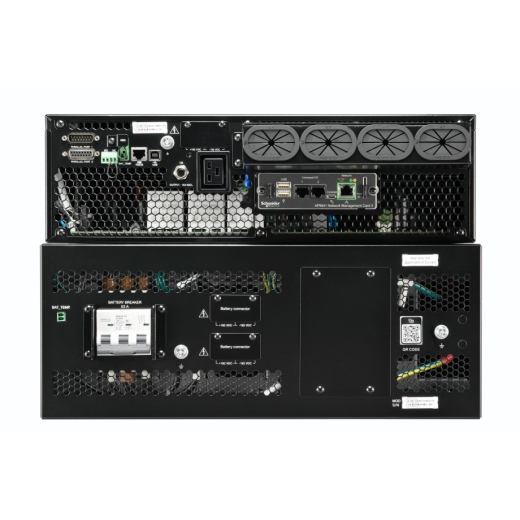

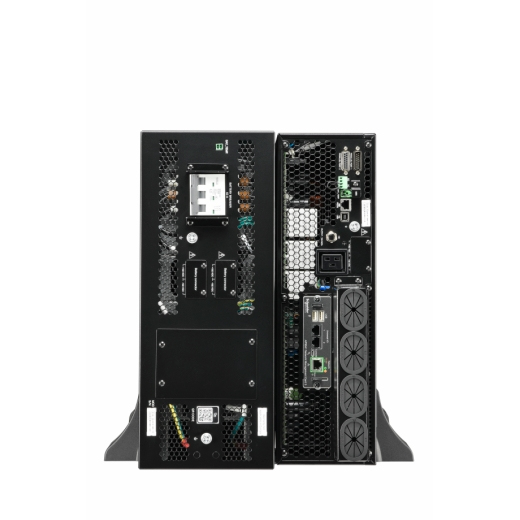

| Ports & interfaces | |
| AC outlet types | Hard Wire 3-wire (1PH + N + G), Hard Wire 5-wire (3PH + N + G) |
| Serial interface type | RS-232 |
| USB port | |
| Serial interface | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 700 mm |
| Height | 306 mm |
| Weight | 142.5 kg |
Questions & answers
What is the delivery time of APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black?
The article APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SRTG20KXLI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black always at the best possible price. We can give you a discount of 2% on APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC SRTG20KXLI Smart-UPS RT 20kVA UPS rack-mountable AC 230/380V 20000W 20000VA 3-phase/1-phase RS-232 output connection 1 7U Black we can offer you a price of 24.745,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
