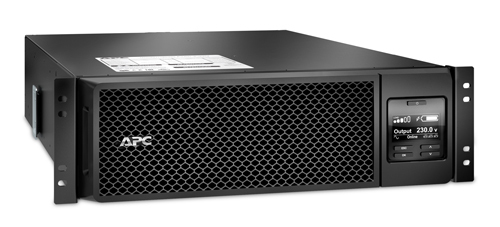

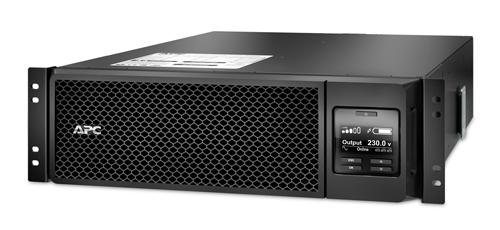

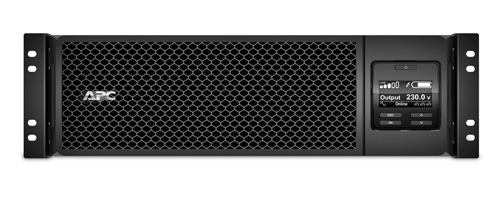

APC USV APC Smart-UPS SRT 5000VA 230V Rack Mount with 6 year (forwarding) content_copy

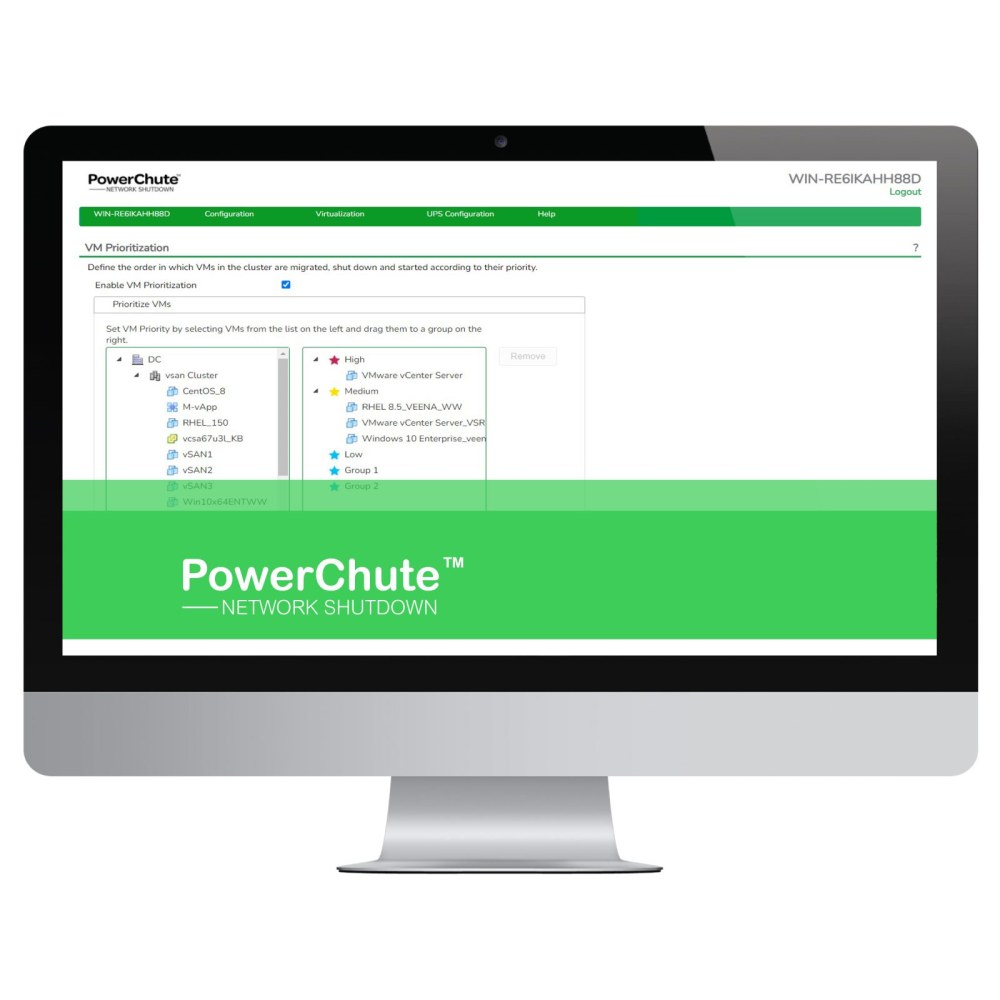

A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	845 VAh

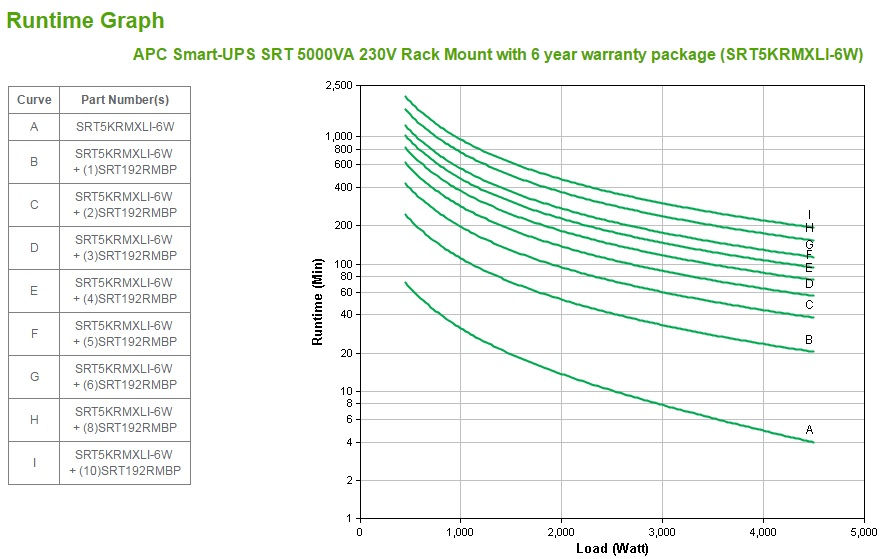

Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Battery life (max)	5 year(s)
Battery recharge time	1.5 h
Replacement battery cartridge	APCRBC140
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
Design
Form factor	Rackmount
Rack capacity	3U
Product colour	Black

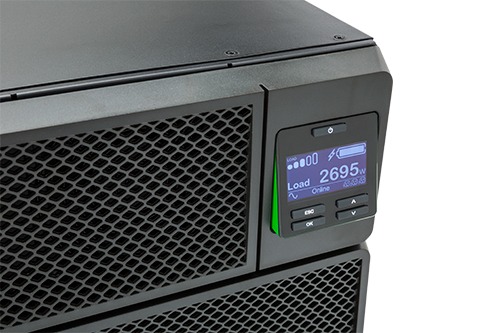

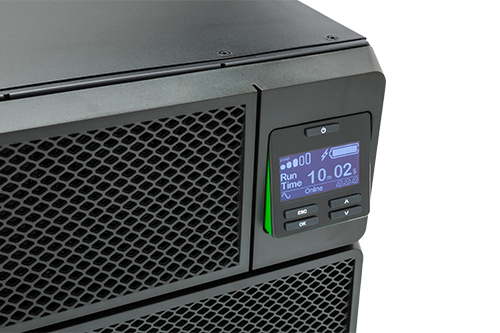

Display type	LCD
International Protection (IP) code	IP20
Features
UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Output power	4500 W
Waveform	Sine
Input operation voltage (min)	160 V
Input operation voltage (max)	275 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Surge energy rating	480 J
Efficiency	94.1%
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	55 dB
Emergency Power Off (EPO)
Surge protection
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	8408.59
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Packaging content	Web/SNMP Management Card
Packaging content
Rack mount kit
Management card included
Quick installation guide
Packaging data
Package width	610 mm
Package depth	960 mm
Package height	330 mm
Package weight	66.9 kg
Bracket
Temperature sensor
Warranty card
Ports & interfaces

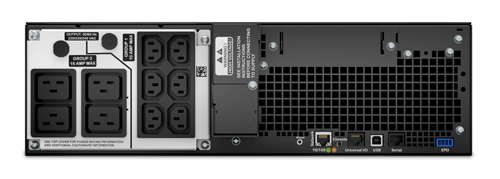

AC outlet types	C13 coupler, C19 coupler
Power plug	Hardwire
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	2
Serial interface type	RJ-45
USB port
Serial interface
SmartSlot
SmartConnect port
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	432 mm
Depth	719 mm
Height	130 mm
Weight	54.4 kg

---
