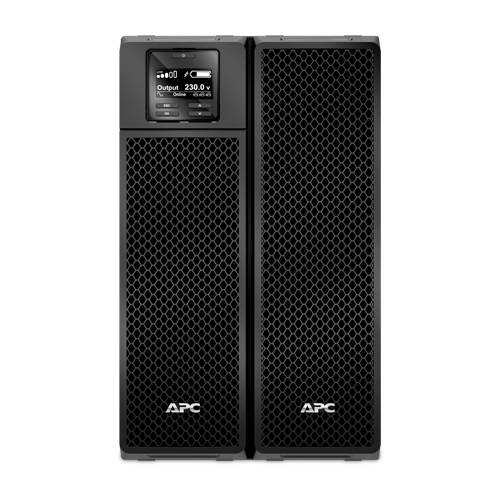

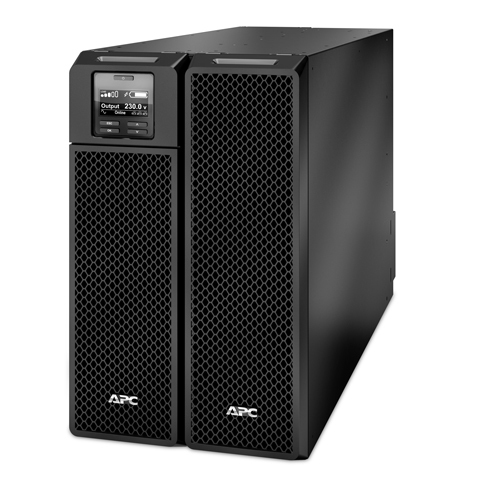

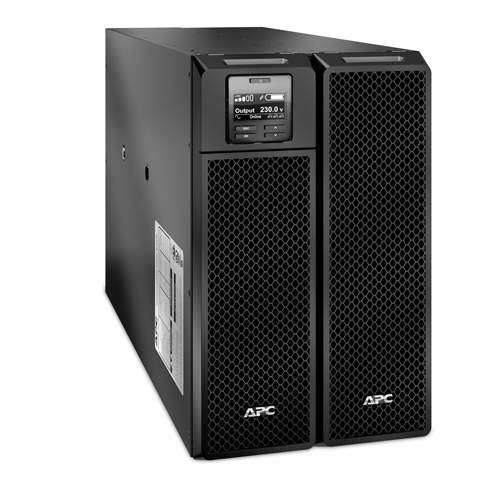

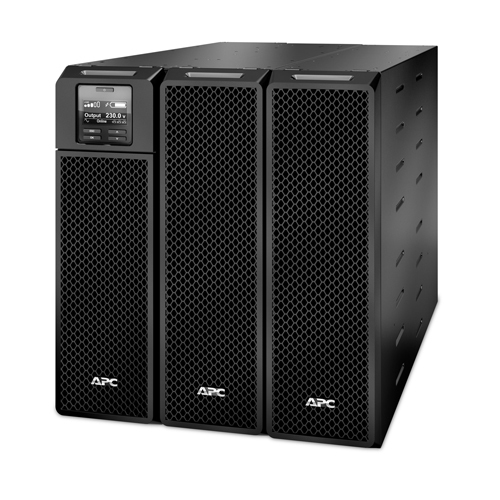

APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid
|
10.450,00 EUR |
|||||||||||
|
( 12.435,50 EUR incl. VAT ) ≈ £8,798.90 | ≈ $11,735.35 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 769438 | ||||||||||
| Mfg Part No: | SRT10KXLI | ||||||||||
| UPC/EAN: | 0731304304272 | ||||||||||
| Weight: | 126.82 kg | ||||||||||
| Type: | ACCS | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC SRT10KXLI:
A versatile UPS developed for the harshest power conditions in the world.

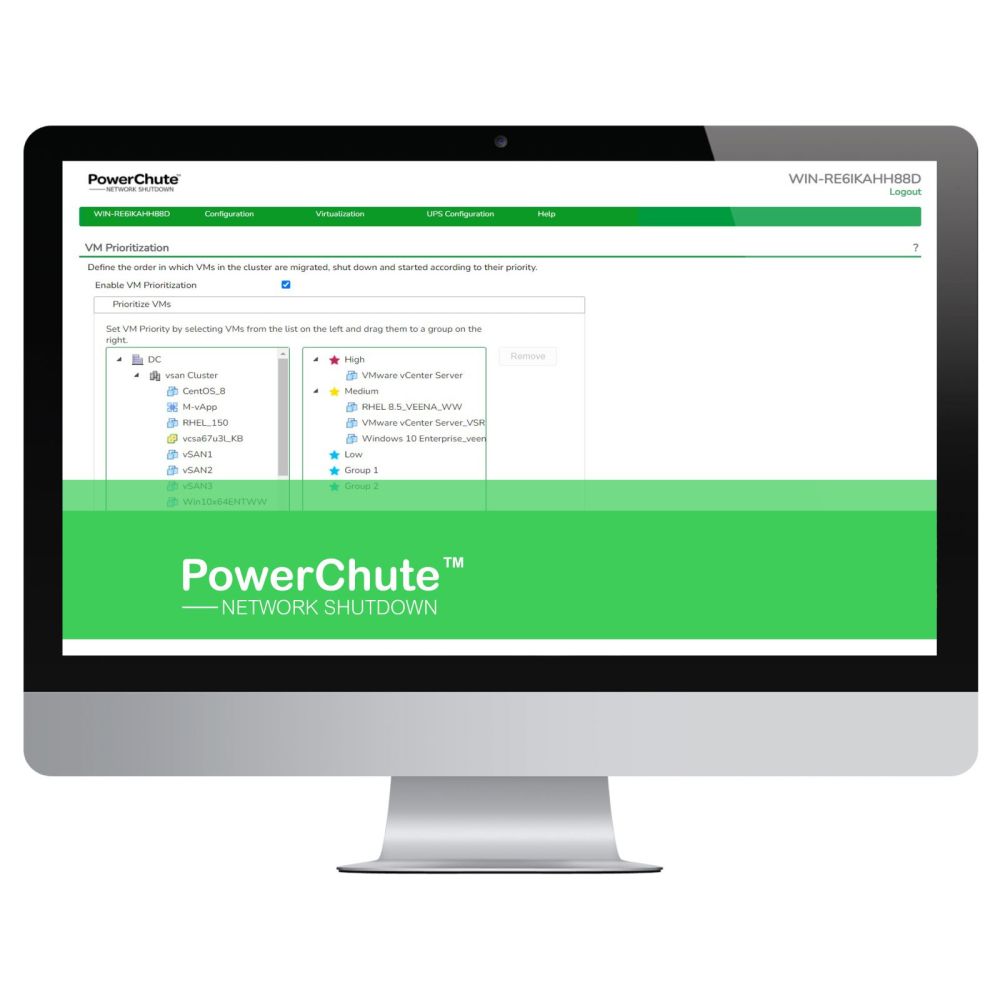

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 VAh |

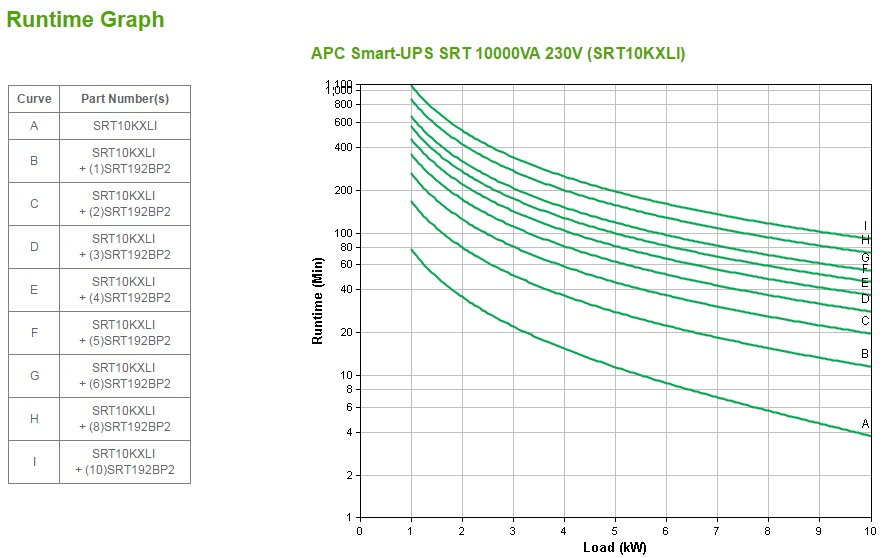

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | |
| Automatic battery test | |
| Cold start | |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 476 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 480 J |
| Number of output phases | 1 |
| Efficiency | 94.6% |
| Crest factor | 3:1 |
| Noise level | 55 dB |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Auto-restart | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 22851.99 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Interface | RJ-45 10/100 Base-T |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | Web/SNMP Management Card |
| Packaging content | |
| Cables included | USB cable |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 126.8 kg |
| Temperature sensor | |
| Warranty card | |
| Software CD | |
| Ports & interfaces | |

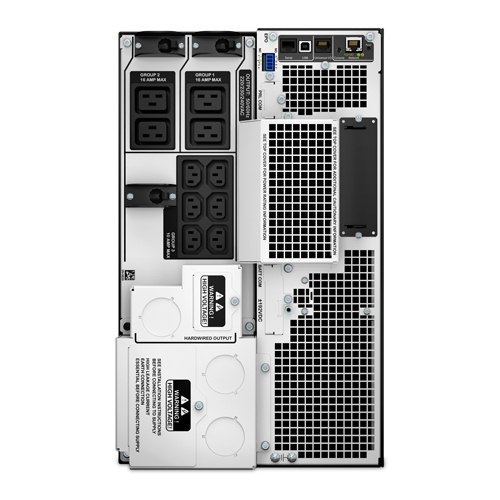

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| Serial interface type | RJ-45 |
| USB port | |
| Serial interface | |
| SmartSlot | |
| SmartConnect port | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 263 mm |
| Depth | 715 mm |
| Height | 432 mm |
| Weight | 111.8 kg |
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid?
The article APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SRT10KXLI to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid always at the best possible price. We can give you a discount of 2% on APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC Smart-UPS On-Line Dual Conversion Online UPS - 10000 VA/10 kWTower - 1.50 Hour Sealed Lead Acid we can offer you a price of 10.371,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
