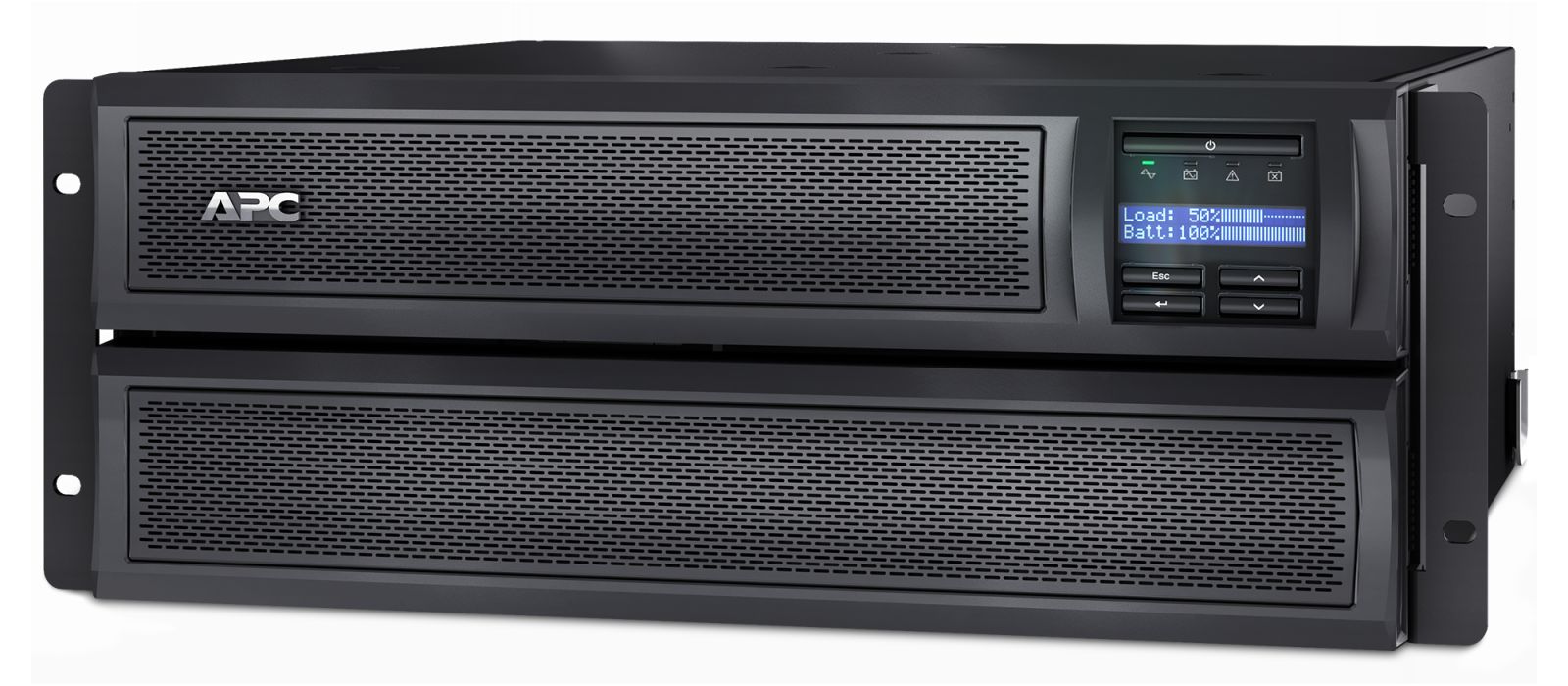

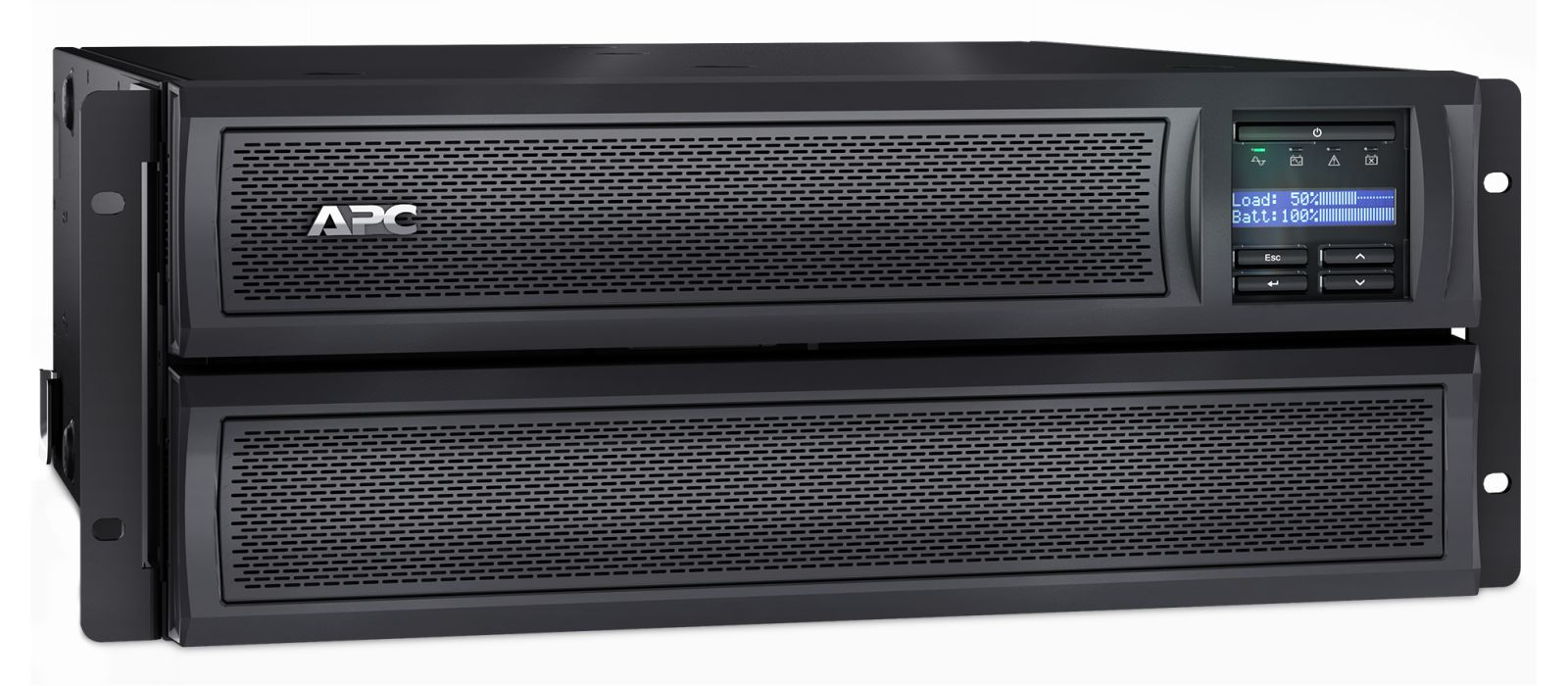

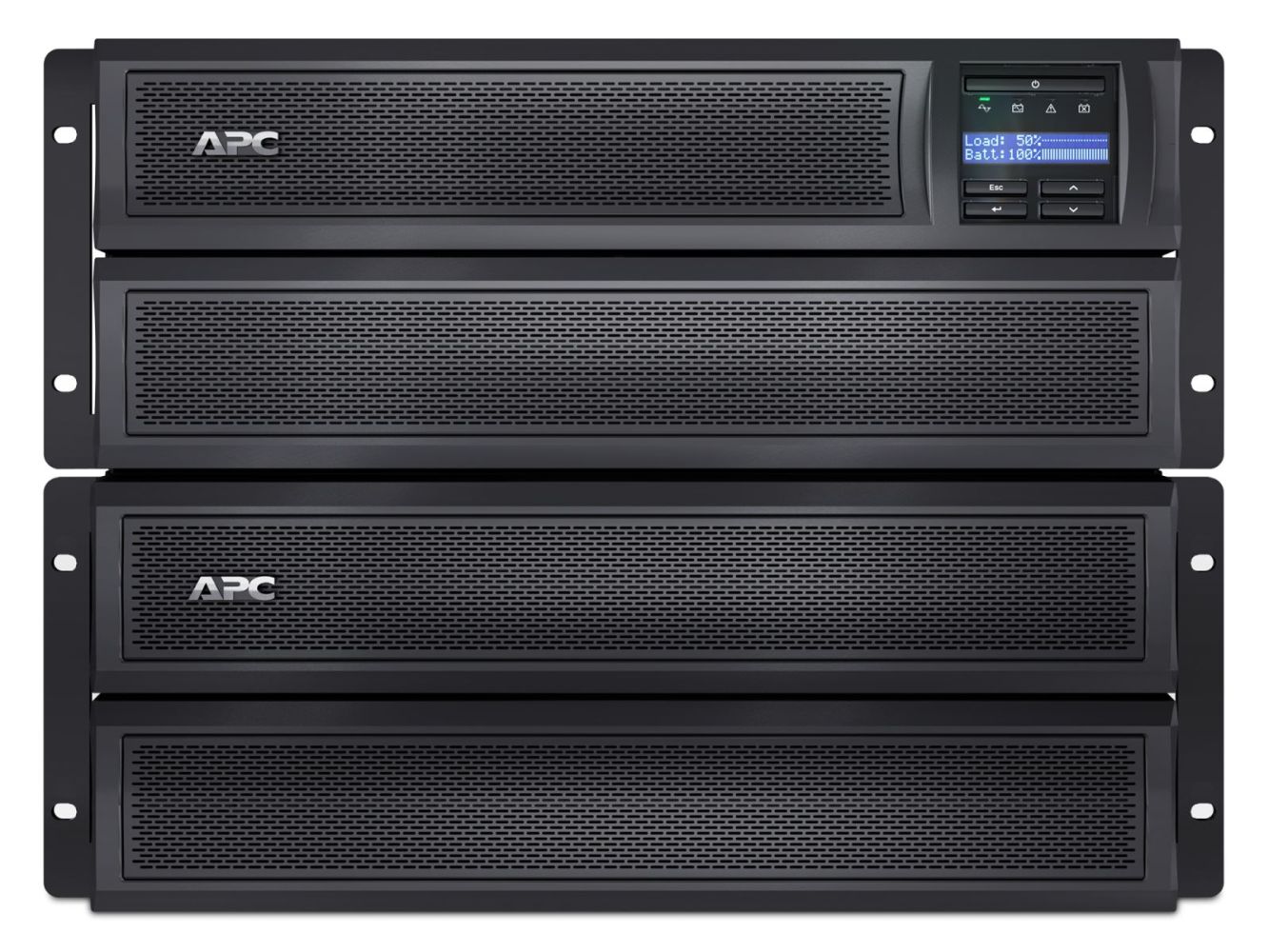

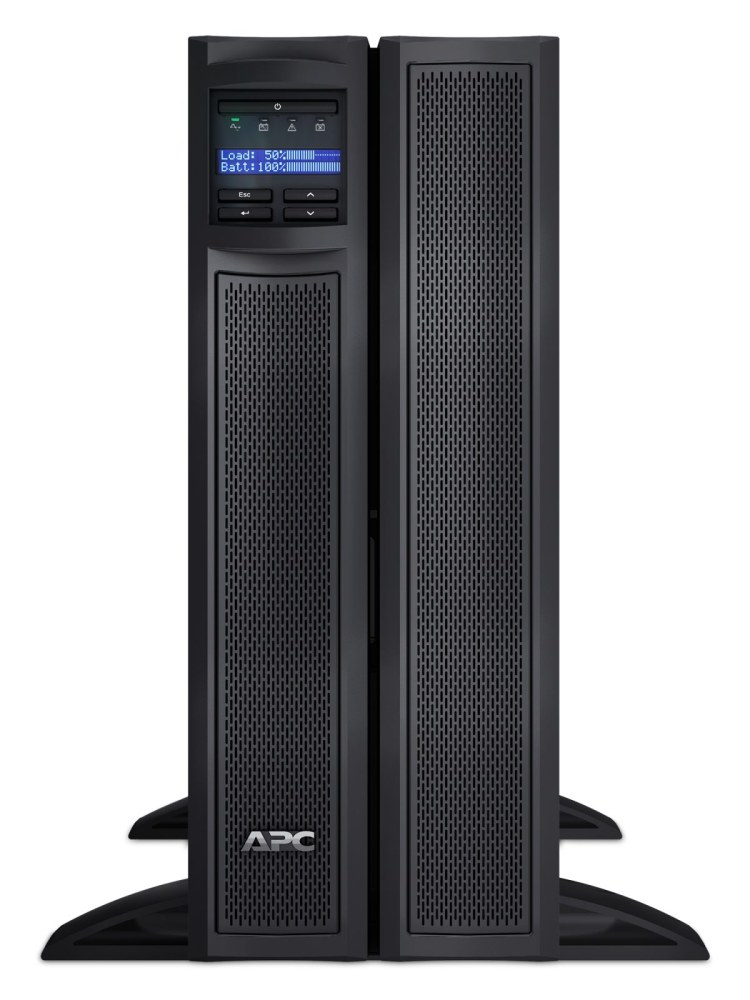

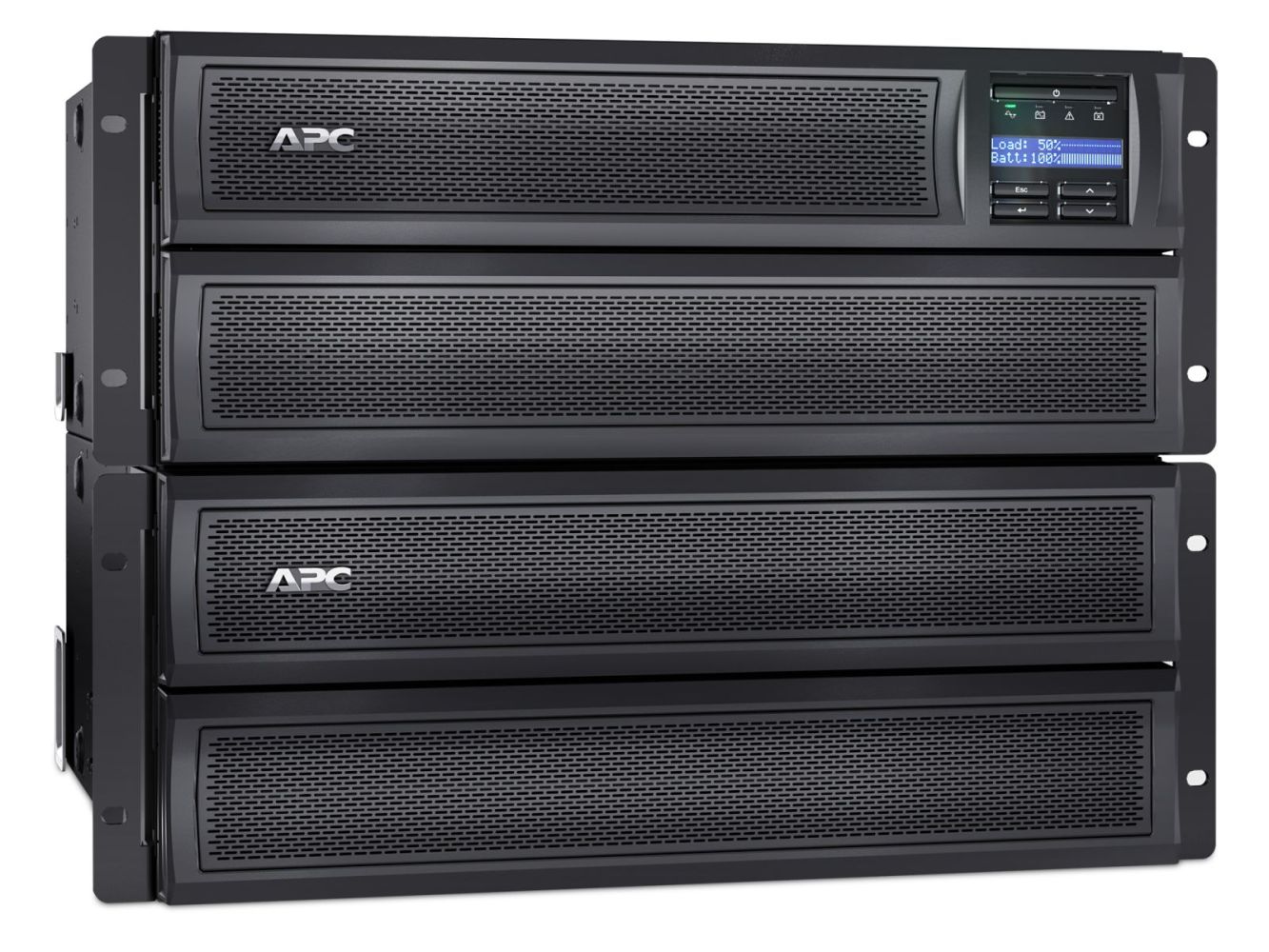

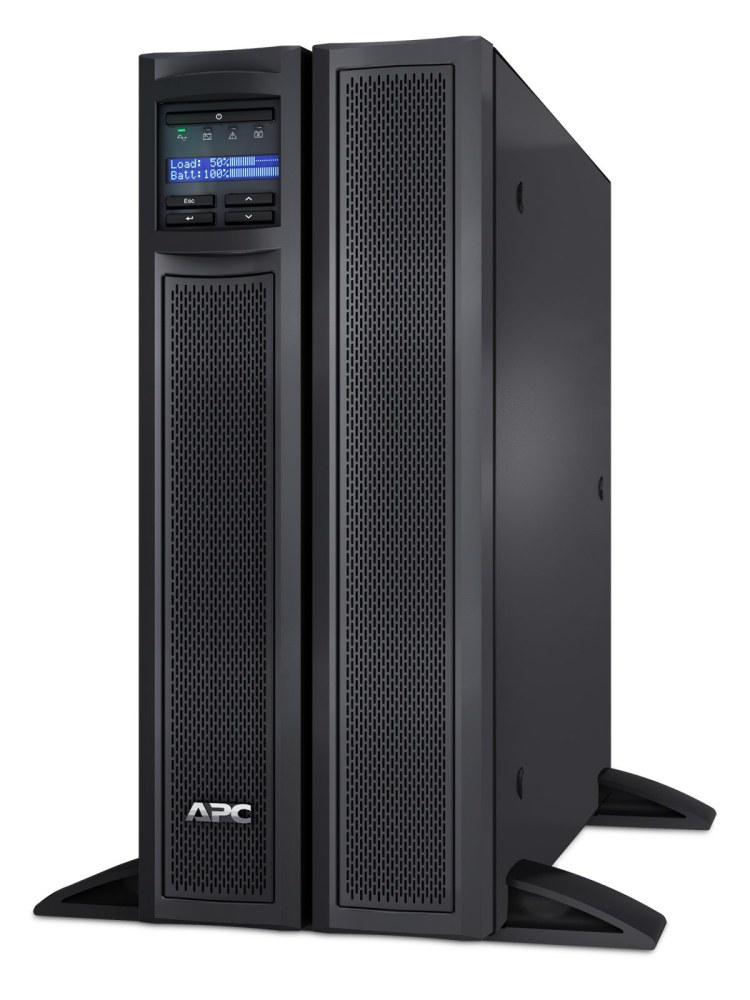

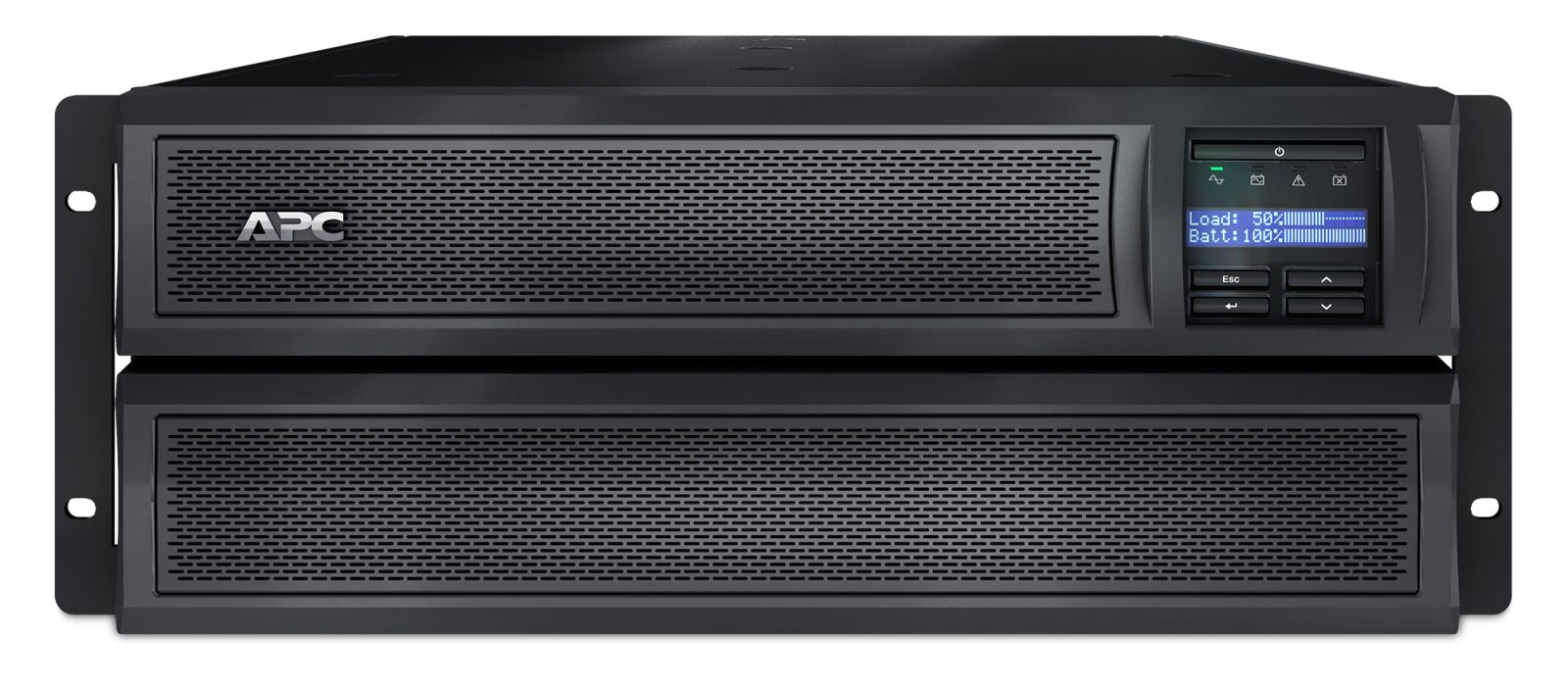

APC Smart-UPS Line-interactive UPS - 2200 VA/1980 W - 4U Tower/Rack Mountable content_copy

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS< is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS< models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	702 VAh

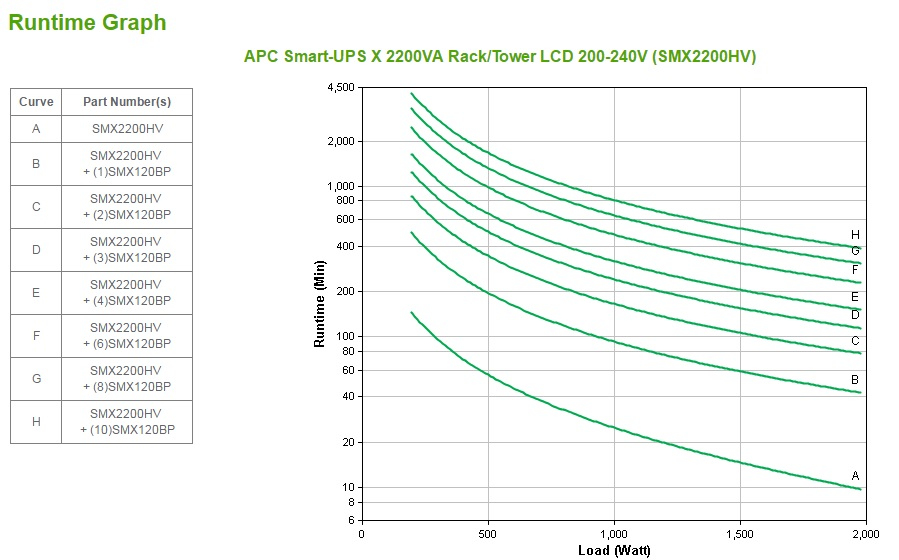

Typical backup time at full load	9.8 min
Typical backup time at half load	25.3 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
Design

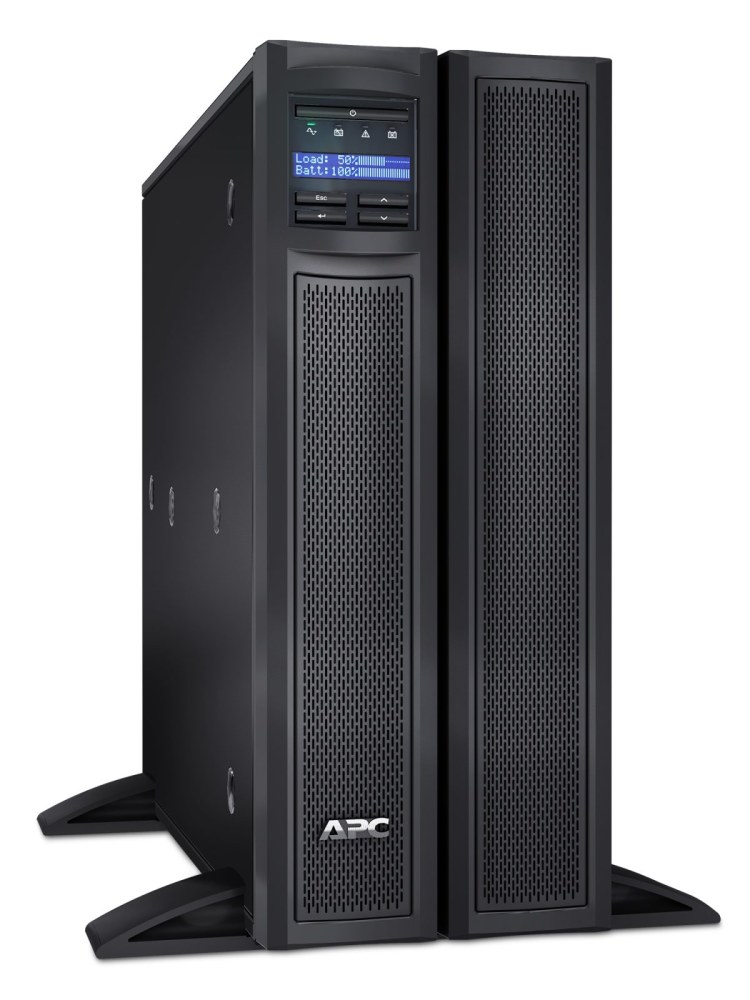

Form factor	Rackmount/Tower
Rack capacity	4U
Cable length	2 m
Product colour	Black, Stainless steel
Display type	LCD
LED indicators	Status, Battery replacement
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Output power	1980 W
Waveform	Sine
Input operation voltage (min)	140 V
Input operation voltage (max)	280 V
Input frequency	50/60 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Surge energy rating	645 J
Hold time (min)	2 ms
Hold time (max)	10 ms
Efficiency	98.1%
Noise level	55 dB
Automatic Voltage Regulation (AVR)
Emergency Power Off (EPO)
Surge protection
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3397.7
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Packaging content	Web/SNMP Management Card
Packaging content
Cables included	RS-232, USB cable
Rack mount kit
Management card included
Manual
Quick installation guide
Packaging data
Package width	586 mm
Package depth	633 mm
Package height	330 mm
Package weight	47.7 kg
Temperature sensor
Software CD
Ports & interfaces

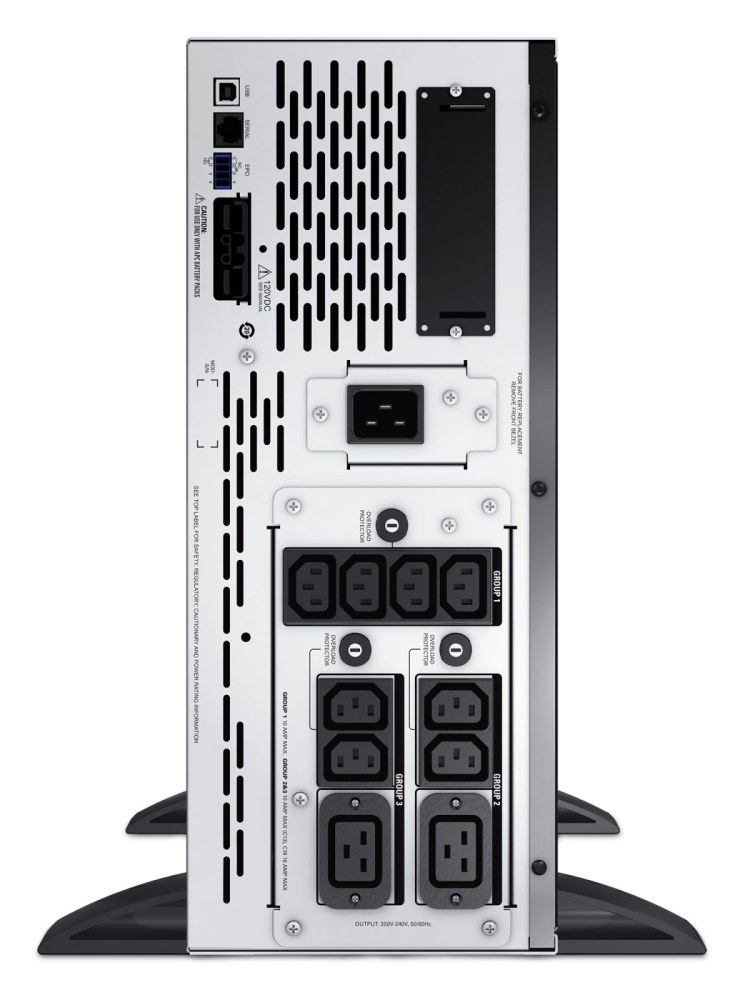

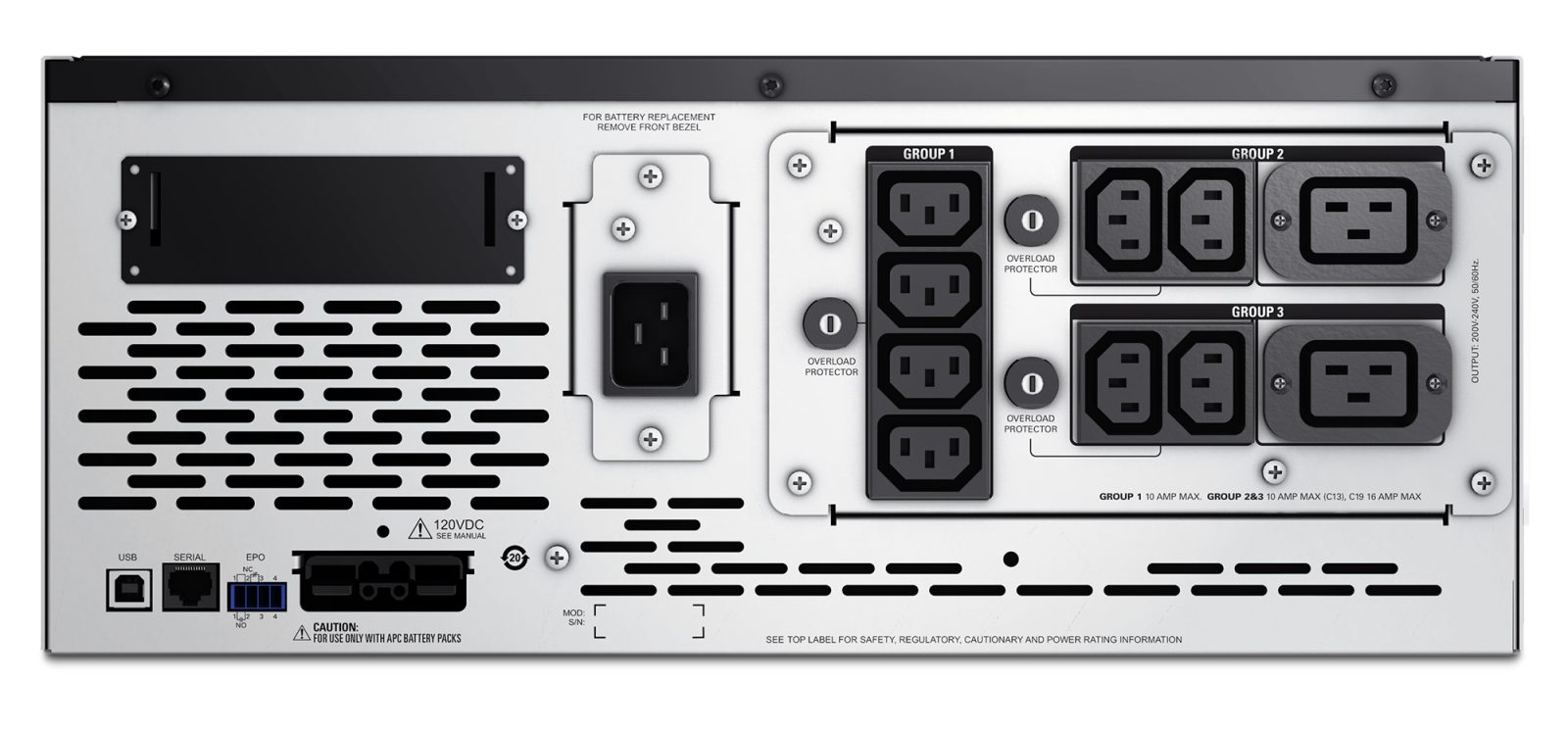

AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	2
USB port
SmartSlot
SmartConnect port
Weight & dimensions
Width	178 mm
Depth	483 mm
Height	432 mm
Weight	38.6 kg

---
