APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V

Your rating:
Average rating
product review for APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V
( 5 / 5 ) 1 ratings

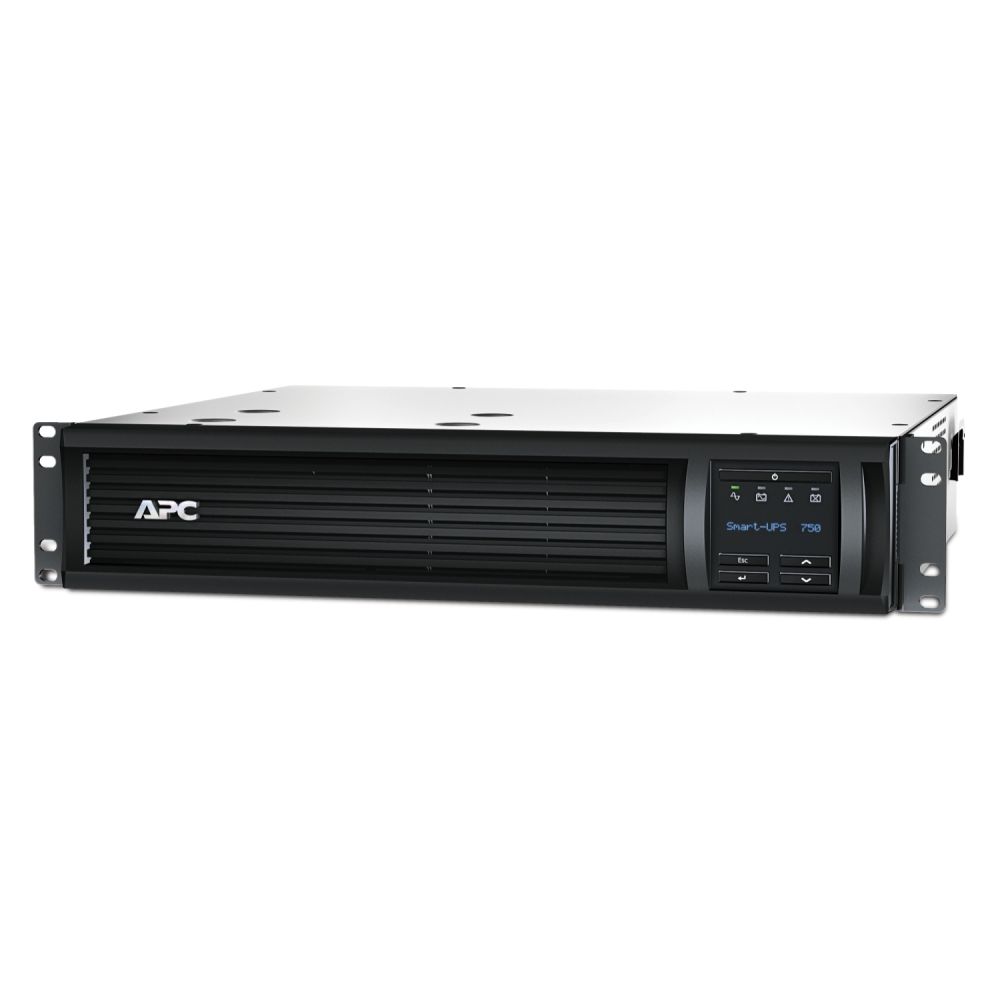

APC SMT750RMI2UC
This image may differ from the desired article.
APC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UCAPC SMT750RMI2UC
1.285,35 EUR
( 1.529,57 EUR incl. VAT )
≈ £1,074.55  |  ≈ $1,412.60
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >100 pieces
1x APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V
Datasheet:file_download Download
Lieske Part No.:2014240
Mfg Part No: SMT750RMI2UC
UPC/EAN: 0731304340324
Weight:23.27 kg
Type:SMT750RMI2UC
Graduated prices net
From piecesPrice per pieces
21.179,31 EUR
41.073,27 EUR
6967,23 EUR
8861,18 EUR

Product information for APC SMT750RMI2UC:

The APC Smart-UPS SMT750RMI2UC is a line-interactive uninterruptible power supply (UPS) in rack-mount format with an output capacity of 0.75 kVA and an output power of 500 W. It is designed for use in IT infrastructures, particularly for network administrators and IT professionals who require continuous power supply for critical devices such as servers, switches, or network equipment. The UPS delivers a pure sine wave at the output, which is required for sensitive electronic devices to avoid damage or operational disruptions. The line-interactive topology enables efficient voltage regulation during normal operation, activating the battery only during a power outage, thereby extending battery life and improving operational efficiency.

Applications include use in small and medium-sized enterprises, server rooms, data centers, or IT racks where high operational continuity is required. The UPS is intended for indoor use and is not suitable for outdoor environments. The operating temperature ranges from 0 to 40 °C, with a relative humidity of up to 95 % during operation. The maximum operating altitude is 3000 m above sea level.

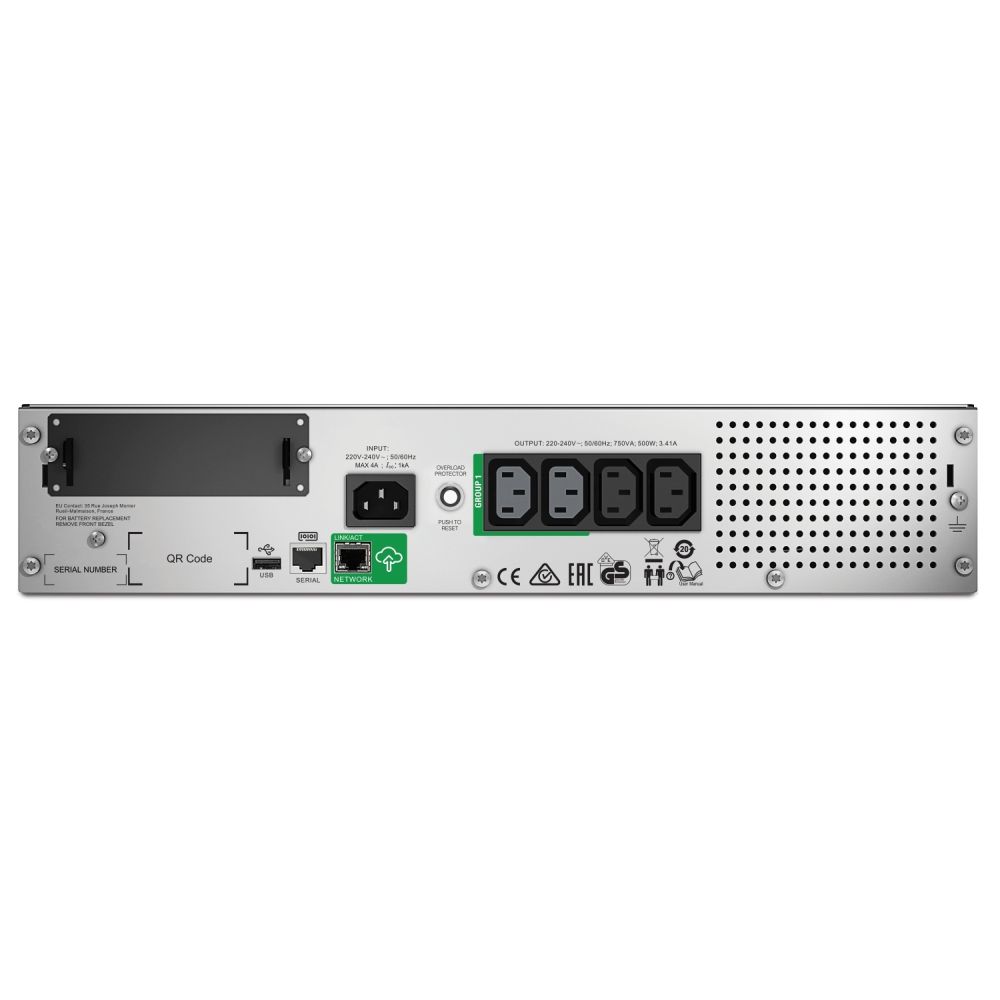

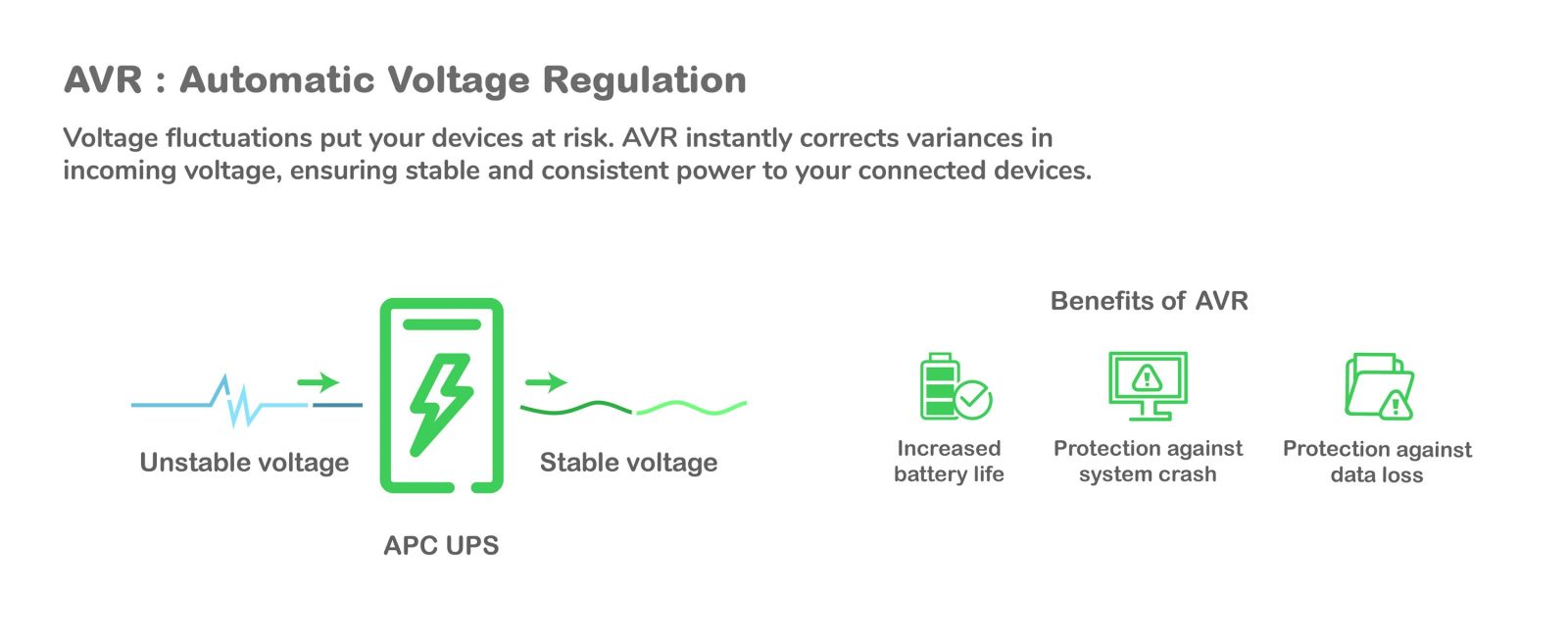

Functions and equipment in detail include four AC outlets with C13 connectors, suitable for powering IT devices. Two IEC jumper cables (Output IEC Jumper) enable flexible use of the outlets. The UPS features a C14 input plug for the power cord. Power supply is via the mains, with an input voltage range of 151 V to 302 V and a frequency of 50/60 Hz. The output voltage is regulated to a range of 220 V to 240 V. The automatic voltage regulation ensures that connected devices receive stable voltage even during voltage fluctuations in the mains.

Technology explained simply shows that the UPS switches to battery operation within a maximum of 2 ms during a power outage to avoid interruption of power supply. The battery technology is based on sealed lead-acid (VRLA), with a capacity of 168 VAh. The typical backup time is 5.5 minutes at full load and 16 minutes at half load. The battery can be replaced using the hot-swap method without shutting down the UPS or connected devices. An automatic battery test regularly checks the battery condition. The battery recharge time is 3 hours. The UPS features a SmartSlot, into which an optional network management card (e.g. AP9640/AP9641) can be inserted to enable remote monitoring and control.

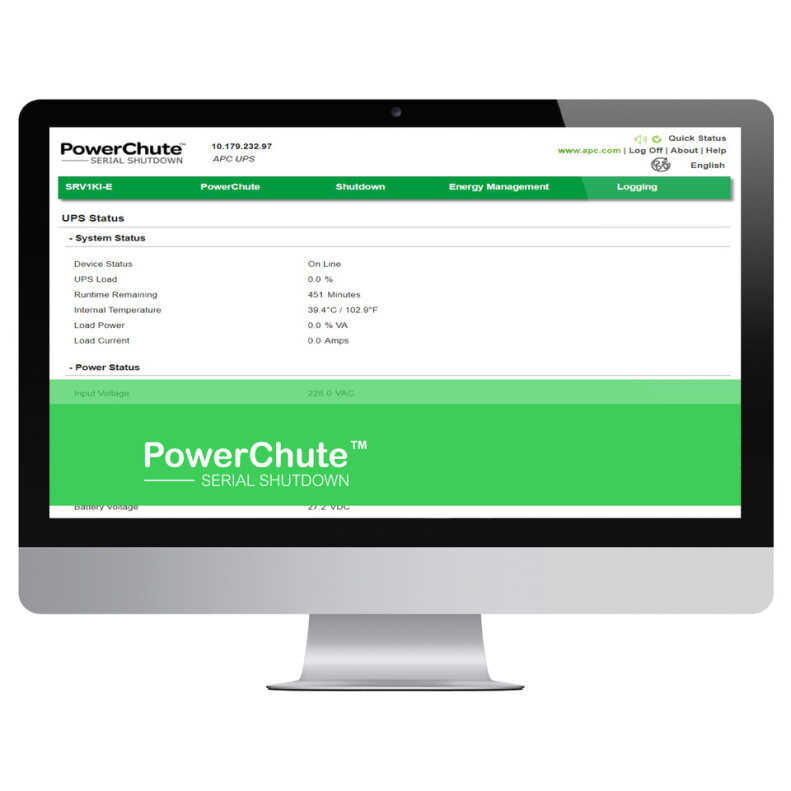

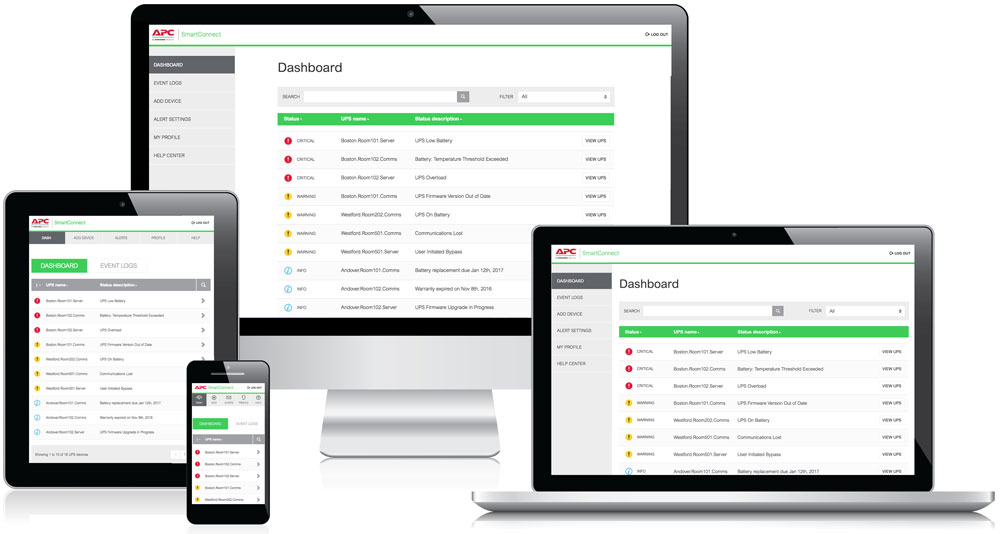

Compatibility and accessories include use with APC PowerChute software, which can be connected via USB or serial interface. The software enables controlled shutdown of connected devices to prevent data loss. Via the SmartConnect port, the UPS can be connected to the cloud-based APC SmartConnect web portal to monitor the UPS status remotely. The UPS is compatible with EcoStruxure IT and third-party centralized management platforms. Remote monitoring includes firmware updates, remote diagnostics, and proactive email notifications with action recommendations.

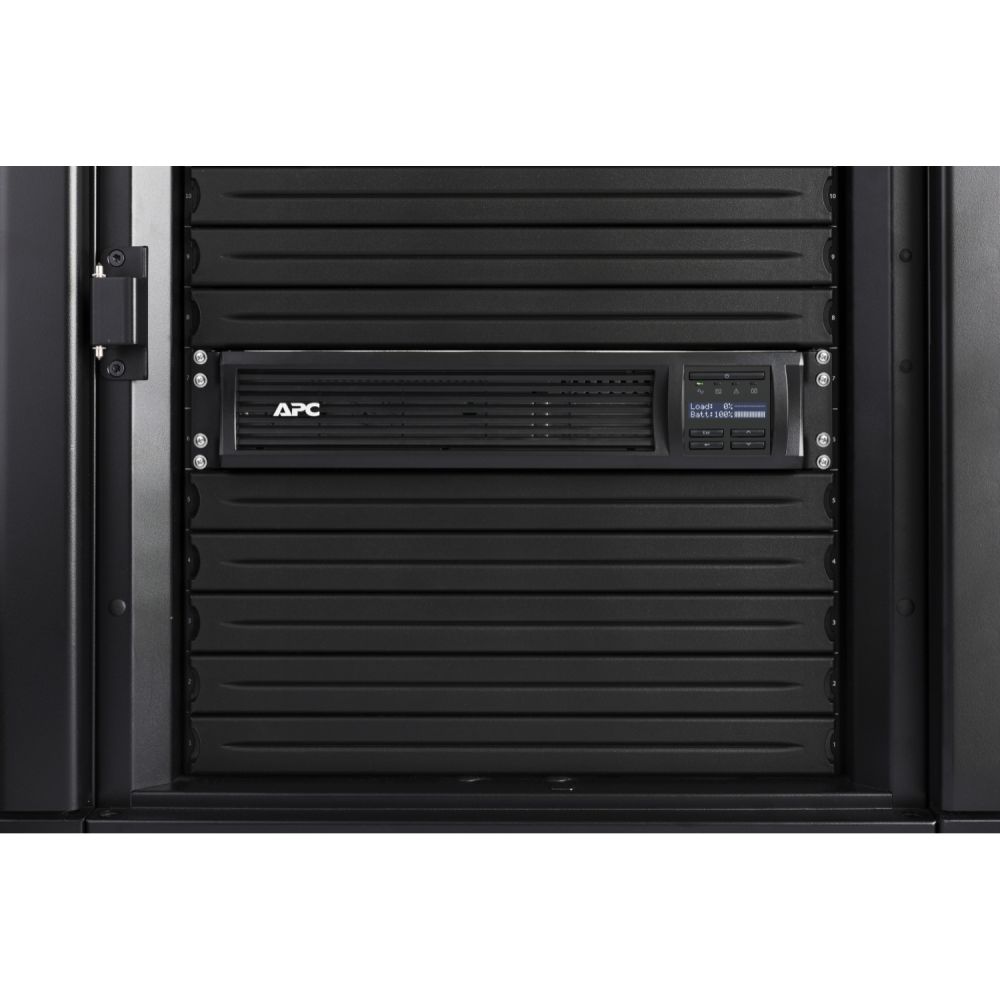

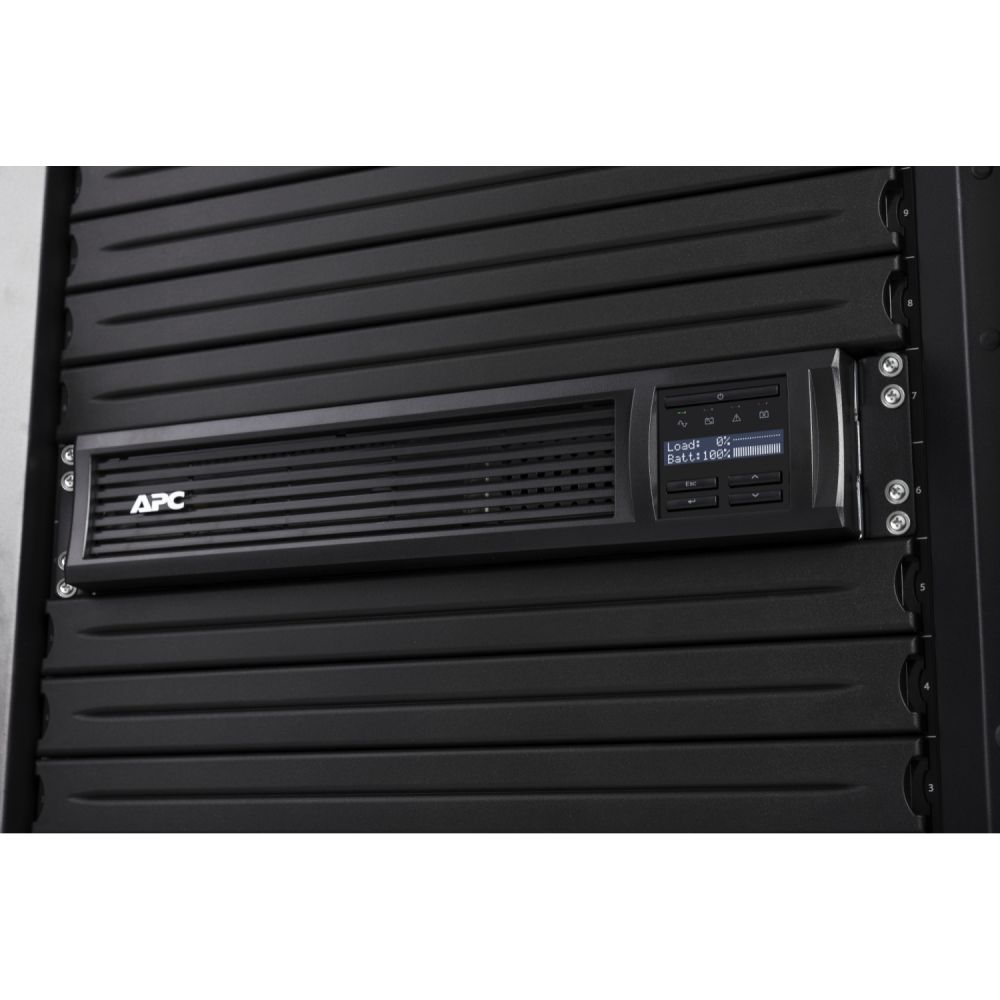

Mounting and installation is performed in rack format with a height of 2 U. The UPS is black and has a width of 432 mm, depth of 406 mm, and height of 89 mm. A rack mounting kit is included in the delivery, as well as a USB cable and an RS-232 cable. A quick installation guide is also included. Installation should be carried out by a qualified electrician, as the UPS contains internal batteries that can still supply power even when disconnected from the mains. Air intake and exhaust for the UPS must be ensured to prevent overheating.

Operational advantages include high efficiency of 97.7 %, low noise level of 42 dB, and integrated surge protection against lightning strikes, voltage spikes, and power outages. The LED indicator for battery replacement informs the user when a battery needs to be replaced. The UPS features audible alarms and an auto-restart function that automatically restarts connected devices after a power outage. The overload protection function protects against overloads. The UPS is certified to standards EN/IEC 62040-1, EN/IEC 62040-2, UL 1778, CE, CSA, EAC, RCM, TUV, VDE, REACH, PEP, and EOLI. Compliance with RoHS and Green Premium demonstrates the environmental compatibility of the device.

The UPS is not intended for consumers in the EU, but for professional users in IT and networking environments. The warranty is 3 years for electronics and 2 years for the battery. The software CD is included in the delivery.

Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity168 VAh

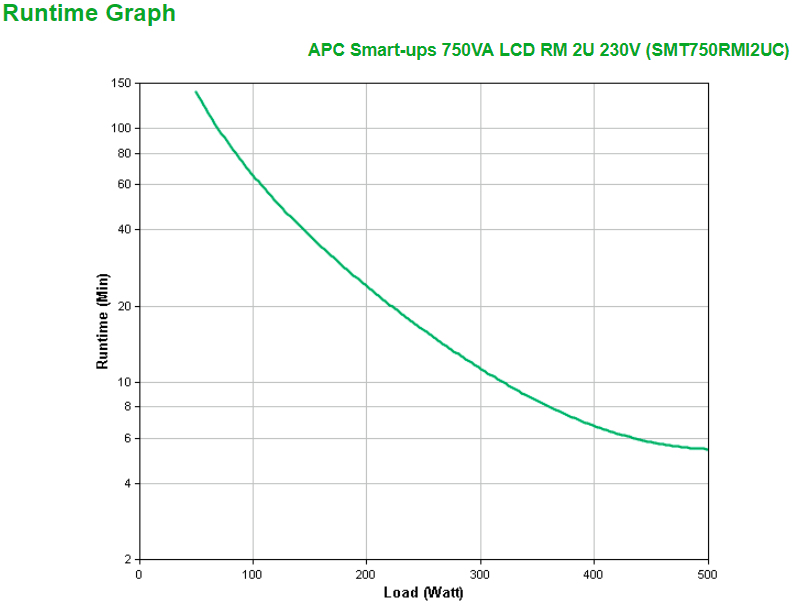

Typical backup time at full load5.5 min
Typical backup time at half load16 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Certificates
Compliance certificatesRoHS
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Design
Form factorRackmount
Rack capacity2U
Product colourBlack

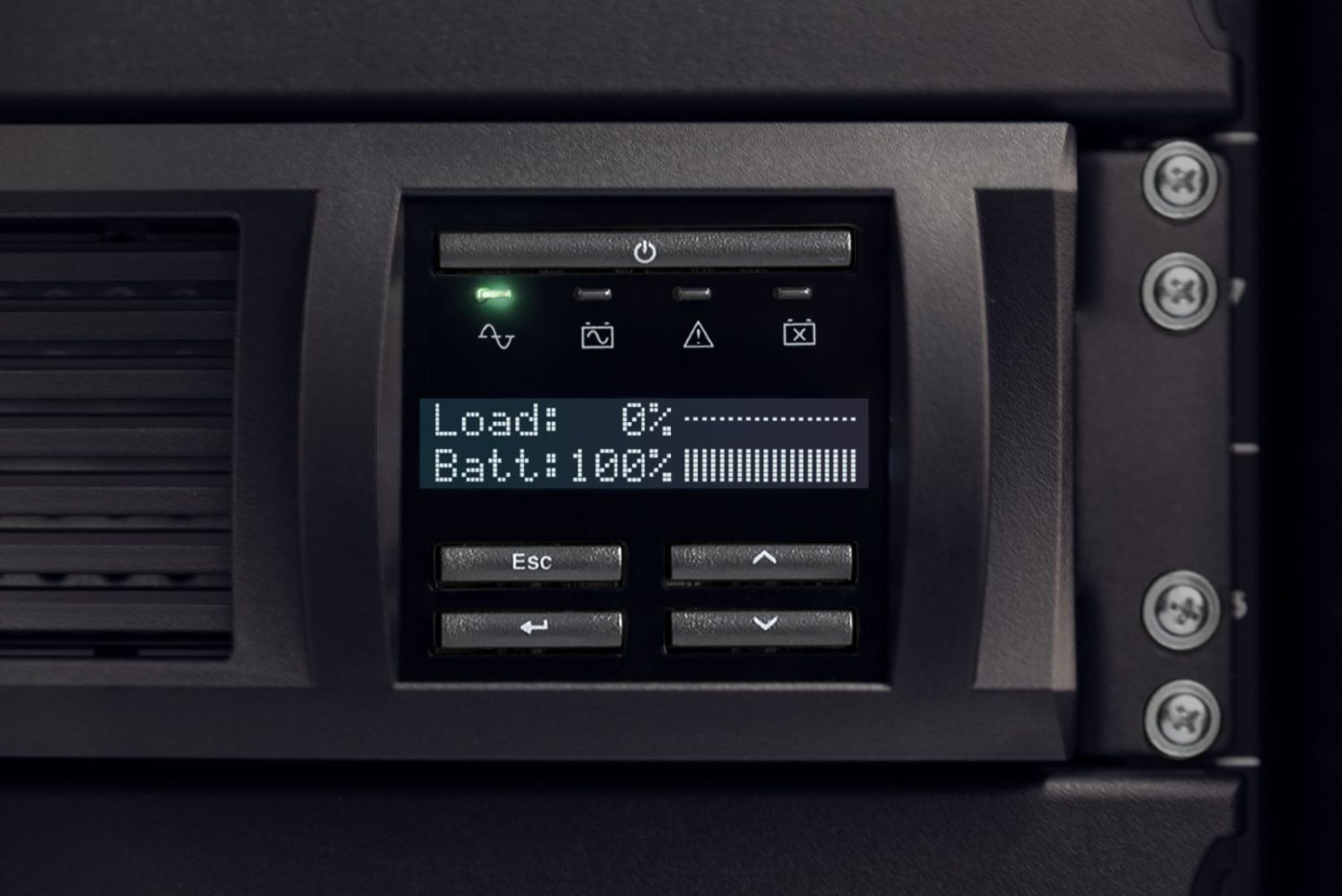

LED indicatorsBattery replacement
Features
UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power500 W
WaveformPure sine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating459 J
Hold time (max)2 ms
Efficiency97.7%
Noise level42 dB
Automatic Voltage Regulation (AVR)Yes
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes
Logistics data
Products per pallet16 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)821.3
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Packaging content
Cables includedRS-232, USB cable
Rack mount kitYes
Management card includedNo
Quick installation guideYes
Packaging data
Package width546 mm
Package depth584 mm
Package height241 mm
Package weight21.2 kg
Software CDYes

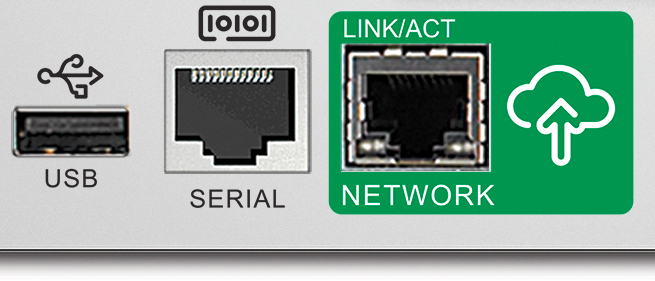

Ports & interfaces
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
Number of output IEC jumpers2
Serial interface typeRJ-45
USB portYes
Serial interfaceYes
SmartSlotYes
SmartConnect portYes
Sustainability
Sustainability certificatesGreen Premium
Weight & dimensions
Width432 mm
Depth406 mm
Height89 mm
Weight17.3 kg


Product data sheet
Datasheet for APC SMT750RMI2UC, EAN: 0731304340324

Questions & answers

What is the delivery time of APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V?

The article APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SMT750RMI2UC to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V always at the best possible price. We can give you a discount of 2% on APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC SMT750RMI2UC UPS SMARTUPS 750 VA / 500 W LCD RM 2U 230 V we can offer you a price of 1.179,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
