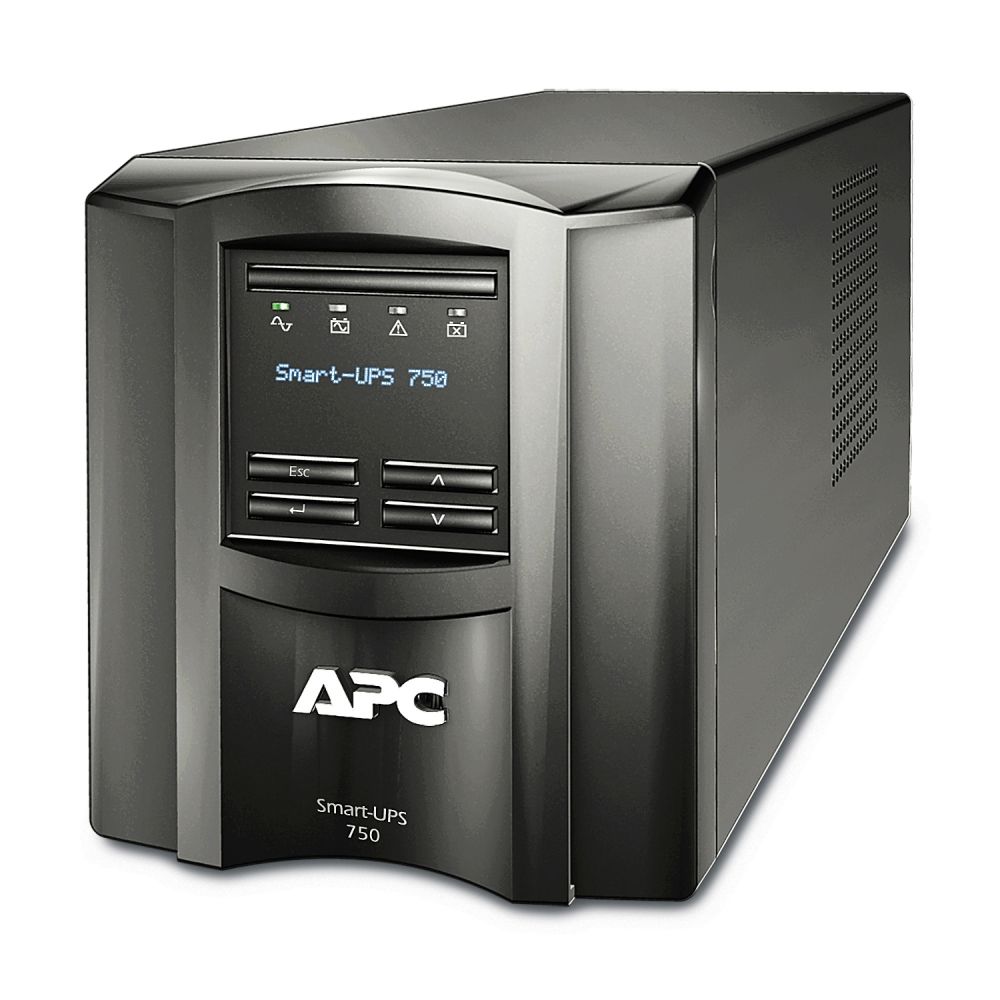

APC SMT750IC Smart-UPS 750 VA LCD with SmartConnect content_copy

The APC Smart-UPS SMT750IC is an uninterruptible power supply (UPS) in tower format, designed for use in offices, server rooms, and small IT infrastructures. It offers an output capacity of 0.75 kVA and an output power of 500 W, with power delivery via a pure sine wave, making it particularly suitable for sensitive devices such as servers, network switches, or NAS systems. The UPS operates using line-interactive topology, enabling efficient voltage regulation without activating battery mode as long as the mains voltage remains within the operating range of 151 V to 302 V. In case of voltage fluctuations or power outages, the UPS automatically switches to battery mode to ensure uninterrupted power supply.

Applications

The SMT750IC is designed for use in small and medium-sized enterprises as well as IT environments where reliable power supply for network devices, workstations, or POS systems is required. The UPS protects connected devices against voltage spikes, overvoltage, and sudden power failures, thereby preventing data loss and hardware damage. The operating temperature range of 0 to 40 °C and relative humidity of 5 to 95 % during operation make the device suitable for indoor use, while direct sunlight and contact with liquids should be avoided.

Features and Equipment in Detail

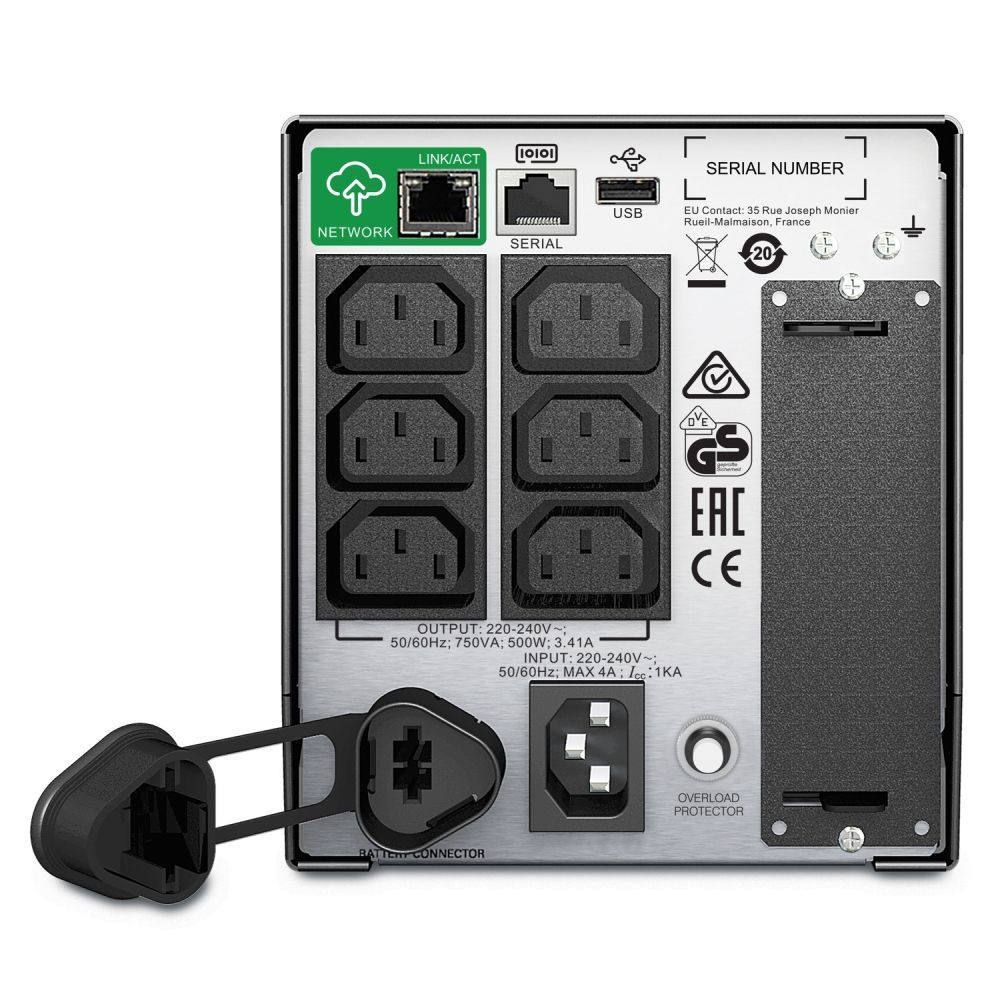

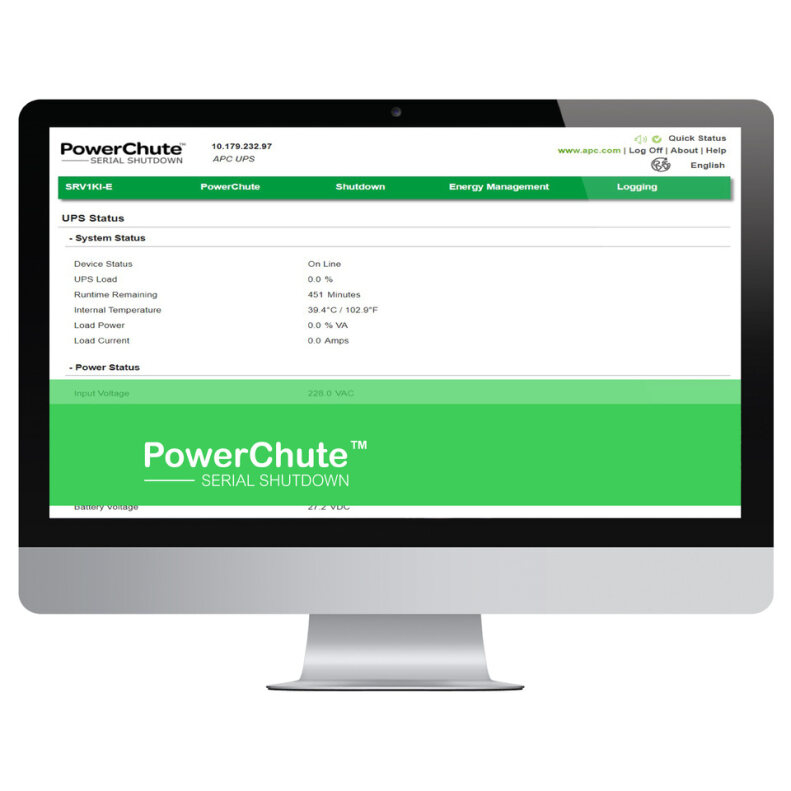

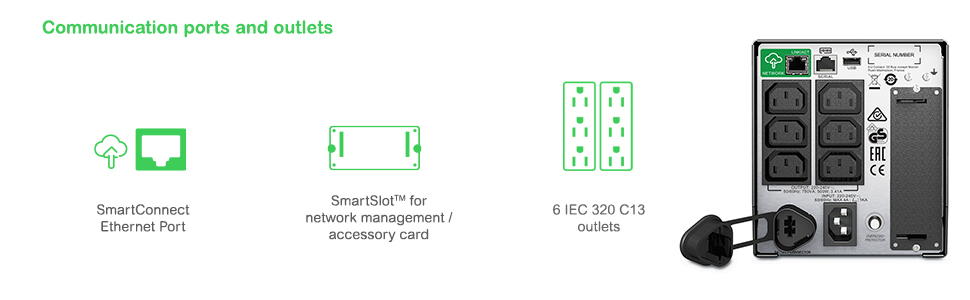

The device features six AC outlets with C13 connectors, designed for powering IT equipment. Two output IEC jumpers allow flexible use of the outlets. The UPS is equipped with a USB port, enabling connection to a server to facilitate controlled shutdown via the free software APC PowerChute Serial Edition in case of a power failure. This prevents a hard shutdown and protects the hardware. Additionally, a SmartSlot is integrated, allowing installation of optional management cards to enable extended monitoring and control functions.

Technology Explained Simply

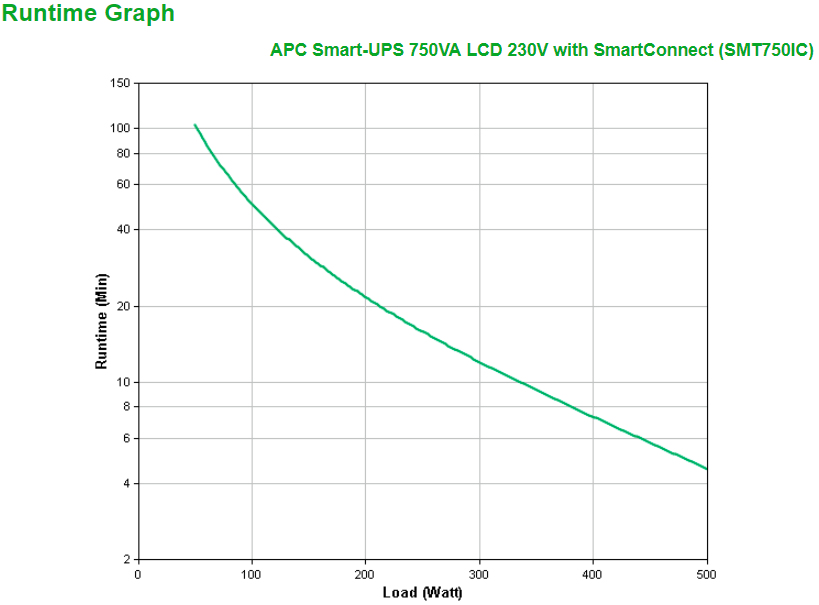

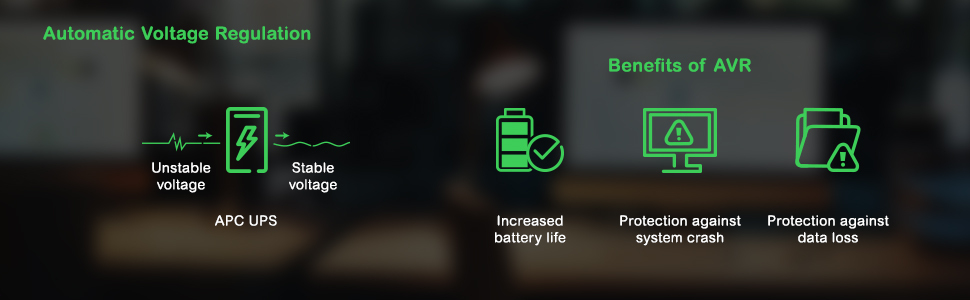

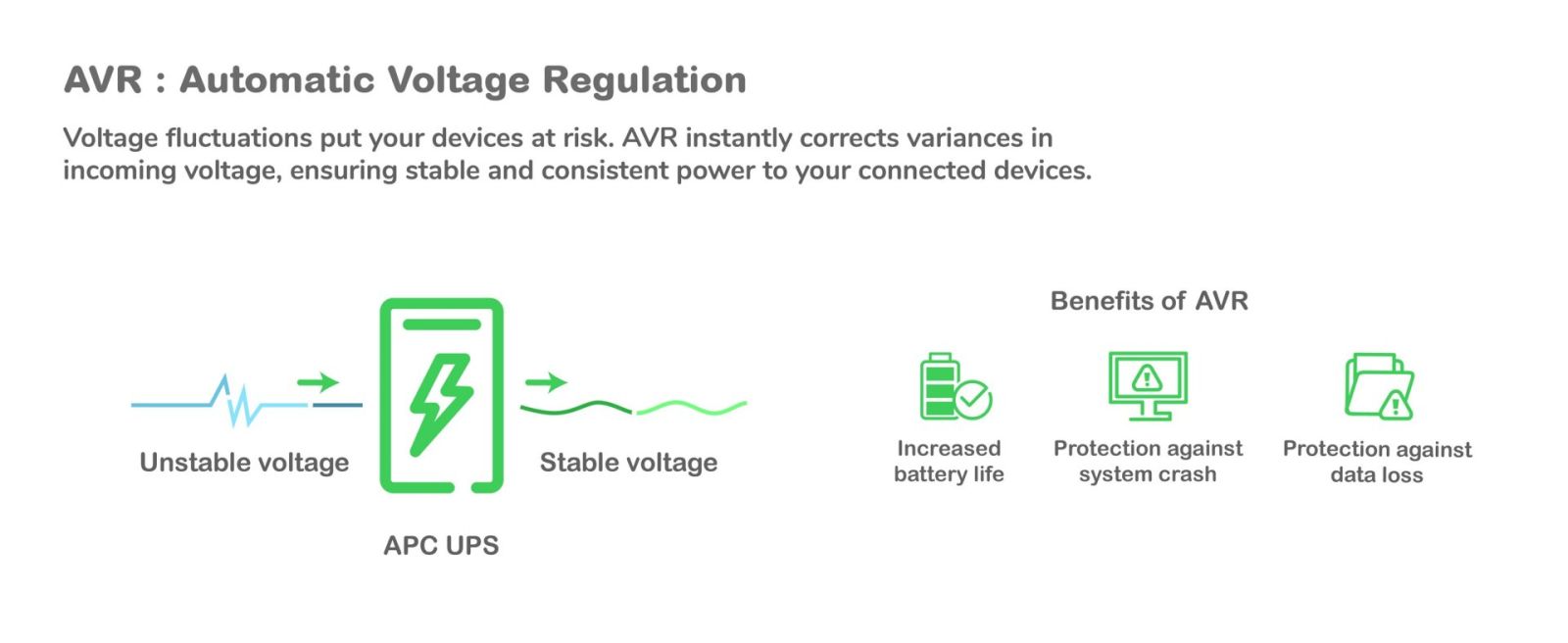

The UPS uses a sealed lead-acid battery (VRLA) with the rbc48 cartridge, which can achieve a maximum lifespan of five years. The typical backup time is 4.6 minutes at full load and 15.8 minutes at half load. The battery recharge time is three hours, and the battery can be replaced using the hot-swap method without shutting down the UPS or connected devices. Automatic voltage regulation ensures that the output voltage remains stable between 220 V and 240 V, regardless of fluctuations in the mains supply. The UPS efficiency is 98 %, indicating high efficiency and low energy losses. The device produces a noise level of 40 dB, suitable for quiet operation in office environments.

Compatibility and Accessories

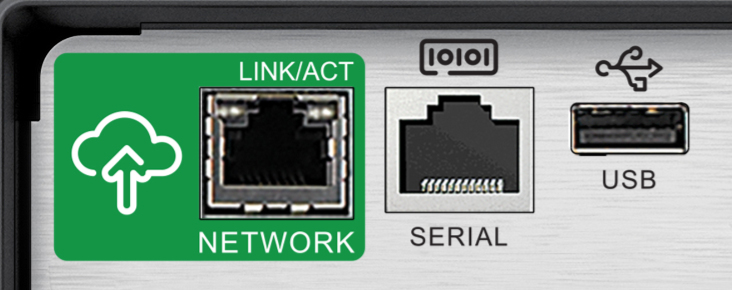

The SMT750IC is equipped with a SmartConnect port, enabling cloud-based remote monitoring via the APC SmartConnect web portal. This allows remote monitoring of the device, including automatic notifications and firmware updates. Network connectivity is achieved via an RJ-45 Ethernet port. Optionally, a network management card (e.g., AP9640/AP9641) can be installed in the SmartSlot to enable remote management via SNMP or EcoStruxure IT Expert (SFTWES1-DIGI). The UPS also supports cold start, allowing it to be activated even when the mains power is off.

Installation and Mounting

The UPS is designed as a tower model and can be placed on a desk or in a server room. The cable length is 1.83 m, and the input connectors comply with the C14 standard. Installation must comply with national and local electrical safety regulations, and cabling should be performed by a qualified electrician. The UPS requires adequate airflow, and ventilation slots must not be obstructed.

Operational Advantages

The SMT750IC offers high operational reliability through automatic voltage regulation, automatic battery testing, and hot-swap battery replacement. The integrated LCD display and LED status indicators enable easy monitoring of the operational status. The combination of USB and SmartConnect interfaces offers flexible integration options into existing IT infrastructures. The warranty includes three years for electronics and two years for the battery. The delivery includes a USB cable, an operating manual, and a quick installation guide. The included software PowerChute Serial Edition supports controlled server shutdown during power failure.

Certifications and Compliance

The UPS complies with standards EN/IEC 62040-1 and EN/IEC 62040-2, as well as certifications CE, CSA, EAC, RCM, UL 1778, VDE, RoHS, REACH, PEP, and EOLI. These certifications guarantee the safety, reliability, and environmental compatibility of the device.

Operation and Maintenance

The UPS is intended for indoor use and must not be operated in direct sunlight or in contact with liquids. The operating humidity must not exceed 95 %. The battery is automatically tested, and replacement can be performed at any time using the hot-swap method. The recharge time is three hours, and the battery has a maximum lifespan of five years. The UPS is equipped with an LCD display and status LEDs indicating the operational status. The software PowerChute Serial Edition enables configuration of shutdown functions via USB.

Delivery Contents

The delivery includes the APC Smart-UPS SMT750IC device, a USB cable, an operating manual, and a quick installation guide. The included software PowerChute Serial Edition is provided on a CD.

Warranty

The manufacturer's warranty covers three years for electronics and two years for the battery. Warranty conditions apply to normal use and are subject to the manufacturer's general warranty terms.

Certifications and Compliance

The UPS complies with standards EN/IEC 62040-1 and EN/IEC 62040-2, as well as certifications CE, CSA, EAC, RCM, UL 1778, VDE, RoHS, REACH, PEP, and EOLI. These certifications guarantee the safety, reliability, and environmental compatibility of the device.

Operation and Maintenance

The UPS is intended for indoor use and must not be operated in direct sunlight or in contact with liquids. The operating humidity must not exceed 95 %. The battery is automatically tested, and replacement can be performed at any time using the hot-swap method. The recharge time is three hours, and the battery has a maximum lifespan of five years. The UPS is equipped with an LCD display and status LEDs indicating the operational status. The software PowerChute Serial Edition enables configuration of shutdown functions via USB.

Delivery Contents

The delivery includes the APC Smart-UPS SMT750IC device, a USB cable, an operating manual, and a quick installation guide. The included software PowerChute Serial Edition is provided on a CD.

Warranty

The manufacturer's warranty covers three years for electronics and two years for the battery. Warranty conditions apply to normal use and are subject to the manufacturer's general warranty terms.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	4.6 min
Typical backup time at half load	15.8 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Replacement battery cartridge	rbc48
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Design
Form factor	Tower
Cable length	1.83 m
Product colour	Black
Display type	LCD
LED indicators	Status
Features
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Output power	500 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	540 J
Efficiency	98%
Noise level	40 dB
Automatic Voltage Regulation (AVR)
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	639.93
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Packaging content
Cables included	USB cable
Management card included
Manual
Quick installation guide
Packaging data
Bundled software	PowerChute Serial Edition
Package width	278 mm
Package depth	499 mm
Package height	301 mm
Package weight	14.2 kg
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	1
USB port
SmartSlot
SmartConnect port
Weight & dimensions
Width	138 mm
Depth	358 mm
Height	157 mm
Weight	13.2 kg

---
