APC SMT1500RM2U UPS LIN 1500 VA 120 V

Your rating:
Average rating
product review for APC SMT1500RM2U UPS LIN 1500 VA 120 V
( 0 / 5 ) 0 ratings

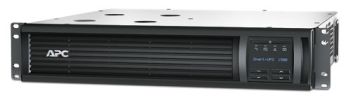

APC SMT1500RM2U
This image may differ from the desired article.
APC SMT1500RM2UAPC SMT1500RM2U
1.199,58 EUR
( 1.427,50 EUR incl. VAT )
≈ £999.25  |  ≈ $1,315.94
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x APC SMT1500RM2U UPS LIN 1500 VA 120 V
Datasheet:file_download Download
Lieske Part No.:528455
Mfg Part No: SMT1500RM2U
UPC/EAN: 0731304284574
Weight:0.2 kg

Product information for APC SMT1500RM2U:

The APC Smart-UPS, model SMT1500RM2U, is an uninterruptible power supply (UPS) in rack-mount format with a height of 2 U, specifically designed for use in IT infrastructures. The device offers an output capacity of 1.44 kVA and an output power of 1000 W, with a nominal voltage of 120 V at both input and output. The UPS operates using line-interactive technology, which enables automatic voltage regulation (AVR) to compensate for voltage fluctuations in the power grid without switching to battery power. This ensures efficient power supply and extends the battery lifespan. In battery mode, the device delivers a pure sine wave output signal, which is required for sensitive IT equipment such as servers, network enclosures, VoIP systems, and POS cash registers.

Applications include critical IT systems in enterprises, banks, retail, and other environments where a power interruption could lead to data loss or operational downtime. The UPS is designed for rack installation and provides six NEMA 5-15R output sockets, which can be individually controlled via an integrated switch. This allows targeted control of connected devices, for example, enabling orderly shutdown in the event of a power failure.

Features and equipment in detail include an intuitive LCD user interface displaying operational status, remaining battery runtime, and the scheduled battery replacement date. An integrated energy consumption meter enables monitoring of power usage by connected devices. The UPS supports cold start, allowing it to be activated even without mains power, which is advantageous in emergency situations. The battery is charged with temperature compensation to optimize battery lifespan and performance.

Technology explained simply shows that the UPS is equipped with a sealed lead-acid battery (VRLA) requiring a 3-hour charge time. The battery is designed for user replacement, with replacement battery cartridges available to restore the UPS to its original specifications. The noise level is 46 dB, suitable for quiet operation in office environments. The input frequency is 50/60 Hz, ensuring compatibility with various power grids. The surge energy capacity of 459 J provides protection against voltage surges and power spikes.

Compatibility and accessories include support for management software such as PowerChute Business Edition, which can be connected via USB or serial interface to enable orderly shutdown of connected systems. The integrated SmartSlot allows installation of optional network management cards, enabling integration into central management platforms such as EcoStruxure IT or third-party solutions. The UPS is supplied with a NEMA 5-15P input cable with a length of 2.44 m.

Mounting and installation is performed in standard racks with a height of 2 U. Dimensions are 432 mm (width) × 457 mm (depth) × 89 mm (height), and the device weighs 28.6 kg. Operating conditions include a temperature range of 0 to 40 °C and relative humidity of 0 to 95 %, with storage possible at -15 to 45 °C and up to an altitude of 15,000 m. The UPS is designed for operation up to an altitude of 3000 m above sea level.

Operational advantages include high availability and reliability of power supply, simple monitoring via the LCD display, and the ability to integrate the UPS into existing IT management systems. The intelligent battery management technology ensures longer battery life and optimal performance. The UPS is certified to CSA, FCC Part 15 A, and UL 1778, confirming safety and compliance with international standards.

Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Certificates
CertificationCSA, FCC Part 15 A, UL 1778
Design
Cable length2.44 m
Features
Output power capacity1.44 kVA
Output power1000 W
Input frequency50/60 Hz
Surge energy rating459 J
Noise level46 dB
Audible alarm(s)Yes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Other features
InterfaceSmartSlot, USB
Output connections6x NEMA 5-15R
Input connection typeNEMA 5-15P
Nominal output voltage120 V
Nominal input voltage120 V
Package dimensions (WxDxH)594 x 603 x 251 mm
Packaging data
Package weight31.9 kg
Weight & dimensions
Width432 mm
Depth457 mm
Height89 mm
Weight28.6 kg


Product data sheet
Datasheet for APC SMT1500RM2U, EAN: 0731304284574

Questions & answers

What is the delivery time of APC SMT1500RM2U UPS LIN 1500 VA 120 V?

The article APC SMT1500RM2U UPS LIN 1500 VA 120 V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SMT1500RM2U to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC SMT1500RM2U UPS LIN 1500 VA 120 V always at the best possible price. We can give you a discount of 2% on APC SMT1500RM2U UPS LIN 1500 VA 120 V if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
