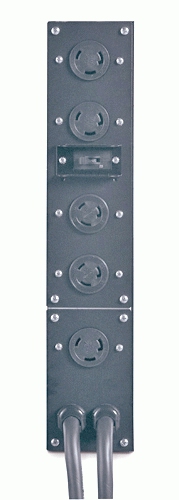

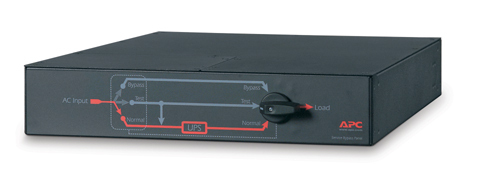

APC Service Bypass Panel - 200/208/240V 30A BBM L6-30P inputc 2 L6-30R 2 L6-20R output
|
1.092,50 EUR |
|
|
( 1.300,08 EUR incl. VAT ) ≈ £914.42 | ≈ $1,222.51 plus delivery charges: 235,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1899526 |
|---|---|
| Mfg Part No: | SBP5000RMT2U |
| UPC/EAN: | 0731304212584 |
| Weight: | 24.54 kg |
| Certificates | |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Design | |
| Product colour | Black |
| Features | |
| Cable length | 3.05 m |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package weight | 24.5 kg |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
| Ports & interfaces | |
| Input connection type | NEMA L6-30P |
| Output connections | 2x NEMA L6-20R 2x NEMA L6-30R |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 5000 VA |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 24 A |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 13.6 kg |
Questions & answers
What is the delivery time of APC Service Bypass Panel - 200/208/240V 30A BBM L6-30P inputc 2 L6-30R 2 L6-20R output?
The article APC Service Bypass Panel - 200/208/240V 30A BBM L6-30P inputc 2 L6-30R 2 L6-20R output is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SBP5000RMT2U to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Service Bypass Panel - 200/208/240V 30A BBM L6-30P inputc 2 L6-30R 2 L6-20R output always at the best possible price. We can give you a discount of 2% on APC Service Bypass Panel - 200/208/240V 30A BBM L6-30P inputc 2 L6-30R 2 L6-20R output if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
