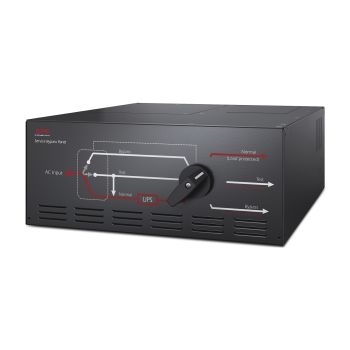

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output
|
2.208,75 EUR |
|
|
( 2.628,41 EUR incl. VAT ) ≈ £1,848.72 | ≈ $2,471.59 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 385395 |
| Mfg Part No: | SBP20KP |
| UPC/EAN: | 0731304266952 |
| Weight: | 30.38 kg |
| Type: | ACCS |
Product information for APC SBP20KP:
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CSA; GOST |
| Design | |
| Form factor | Tower |
| Rack capacity | 4U |
| Product colour | Black |
| Features | |
| Output power capacity | 20 kVA |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Maximum current | 125 A |
| Logistics data | |
| Customs product code (TARIC) | 8536508000 |
| Harmonized System (HS) code | 85078000 |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4500 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Output connections | hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s) |
| Mounting | front |
| Package dimensions (WxDxH) | 610 x 845 x 305 mm |
| Overload protection | |
| Packaging data | |
| Package weight | 31.4 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Technical details | |
| Preferred mounting position | lower |
| Sustainable packaging | |
| Take-back system | |
| Packaging without single use plastic | |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 554 mm |
| Height | 178 mm |
| Weight | 19.3 kg |
Questions & answers
What is the delivery time of APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output?
The article APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SBP20KP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output always at the best possible price. We can give you a discount of 2% on APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
