APC Batterie f. div. Geräte #RBC7 content_copy

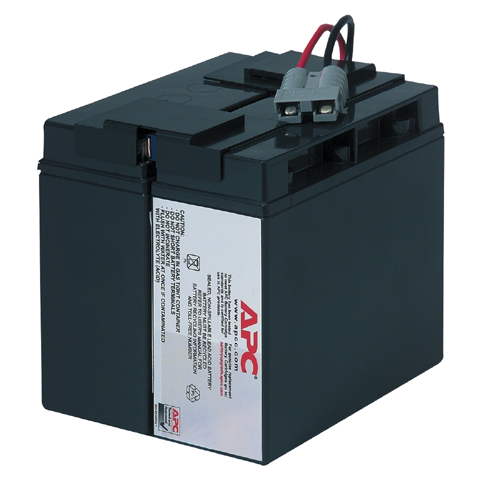

The APC replacement battery RBC7 is an original replacement module for Uninterruptible Power Supplies (UPS) from manufacturer APC. It serves as a direct replacement for worn-out or defective battery units in compatible UPS systems and ensures continuous power supply during grid outages. The module is designed as a maintenance-free, sealed lead-acid battery (VRLA), with the electrolyte suspended, enabling leak-proof operation even when tilted or overturned. The battery has a nominal voltage of 24 V and is housed in a compact, black-painted housing with dimensions 152.4 mm (width) × 182.9 mm (depth) × 172.7 mm (height). The total weight is 11.7 kg.

Applications
RBC7 is specifically designed for a range of APC UPS models, including BP1400I, SU1400INET, SU700XLINET, SU1000XLINET, SUA1500I, SUA750XLI, and SMT1500I. These devices are used in office environments, server rooms, IT infrastructures, and other applications where reliable power supply is critical. The battery is designed for indoor use and can operate at ambient temperatures between 0 °C and 40 °C and relative humidity from 0 to 95 %.

Features and Equipment in Detail
The battery is supplied as a complete replacement cartridge, replacing the entire old battery unit including connection cables and mounting bracket. It is pre-assembled and ready for use, allowing replacement without shutting down the UPS or powering down connected loads. This enhances operational safety and minimizes downtime. The sealed lead-acid (VRLA) technology ensures a long service life of three to five years under normal operating conditions.

Technology Explained Simply
The term Sealed Lead-Acid (VRLA) describes a battery technology in which the electrolyte is immobilized in a gel or via a special absorption structure, preventing any liquid loss. This makes the battery maintenance-free and safe for use in enclosed spaces. The voltage of 24 V is standard for most APC UPS models and enables efficient energy transfer. The sealed design protects against leaks and allows safe mounting even in vertical positions.

Compatibility and Accessories
RBC7 is specifically designed for the mentioned APC UPS models. Compatibility has been tested and certified by APC to ensure 100 % functionality. The battery is not intended for use with other manufacturers or models. Using original replacement batteries ensures optimal performance and safety of the entire UPS system.

Installation and Mounting
Replacement is performed by removing the old battery cartridge and inserting the new RBC7 into the designated compartment of the UPS. Connections are pre-installed, so no additional tools or cable connections are required. Installation can be carried out without interrupting operation, as the UPS continues to supply connected devices during the changeover.

Operational Advantages
Using the APC RBC7 provides reliable and maintenance-free power supply security. The long service life of three to five years reduces the frequency of replacement procedures. The leak-proof construction and compact design facilitate use in confined spaces. Compatibility with various APC models makes the battery a universal replacement part for existing UPS systems. The battery is designed for indoor use and requires no special environmental conditions beyond the specified temperature and humidity limits.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Features
Battery voltage	24 V
Product colour	Black
Logistics data
Harmonized System (HS) code	85044095
Total carbon footprint (kg of CO2e)	40.37
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	11.7 kg
Dimensions (WxDxH)	152.4 x 182.9 x 172.7 mm

---
