APC OEM Replacement Battery RBC17-RS * how * RBC17 content_copy

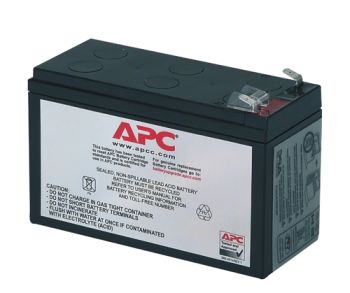

The APC RBC17-RS is an original replacement battery module for Uninterruptible Power Supplies (UPS), specifically designed as a replacement for the APC RBC17. It is a sealed lead-acid battery (VRLA) designed for use in UPS systems to ensure continuous power supply to connected devices during power outages. The battery features a battery capacity of 108 VAh, providing sufficient energy reserve for short-term power supply to IT systems, network equipment, or other sensitive devices during power failure. The battery lifespan is 5 years, indicating a robust and reliable construction suitable for use in professional environments.

Applications

The APC RBC17-RS is primarily intended for use in Uninterruptible Power Supplies (UPS), particularly in IT infrastructures, server rooms, network centers, or critical applications where power interruption is not tolerable. The battery is designed for indoor use and is suitable for standard applications in offices, data centers, or small server rooms. The operating temperature of 0 to 40 °C and the permissible humidity of 0 to 95 % during operation make it suitable for typical indoor conditions. The storage temperature of -15 to 45 °C and the storage humidity of 0 to 95 % allow for flexible storage, even with short-term deviations from operating conditions.

Features and Equipment in Detail

The battery is housed in a compact, black housing with dimensions of 94 mm (width) × 65 mm (height) × 151 mm (depth). The weight is 2.59 kg, making it a manageable size for replacement in existing UPS systems. The sealed lead-acid technology (VRLA) ensures maintenance-free operation, as no fluid replenishment is required. The battery is specifically developed for use in APC UPS systems that use the RBC17 as the original battery and serves as a direct replacement solution.

Technology Explained Simply

The sealed lead-acid battery (VRLA) is a maintenance-free battery in which the electrolyte is fixed in a gel or via a special absorption matrix. This prevents leakage and enables safe handling. The battery provides the necessary energy to keep the UPS operational during a power outage until main power is restored or a backup system is activated. The capacity of 108 VAh corresponds to the energy the battery can deliver over a certain period, with the exact runtime depending on the load connected to the UPS.

Compatibility and Accessories

The APC RBC17-RS is designed as a direct replacement for the APC RBC17 and is used in UPS systems that support this battery type. Compatibility is limited to specific APC UPS models that use the RBC17 as the original battery.

Installation and Mounting

Installation is performed by replacing the old battery in the UPS device. The battery is equipped with the necessary connections to be directly installed into the UPS system. Mounting does not require special tools, as the battery is simply inserted into the designated compartment and secured.

Operational Advantages

The sealed lead-acid technology (VRLA) offers maintenance-free operation and high safety, as no fluid replenishment is required. The 5-year lifespan ensures long-term reliability, and the battery capacity of 108 VAh guarantees sufficient energy supply for typical UPS applications. The robustness against environmental conditions within the specified temperature and humidity ranges makes the battery suitable for use in professional IT environments. The compatibility with APC UPS systems that use the RBC17 provides a direct replacement solution without requiring additional modifications.

Certifications

The battery complies with the RoHS directive, meaning it is free from hazardous substances such as lead, cadmium, or mercury and is therefore environmentally friendly. This certification is relevant for use in the EU and other regions with corresponding environmental regulations.

Dimensions and Weight

The battery has a width of 94 mm, a height of 65 mm, and a depth of 151 mm. The weight is 2.59 kg. The packaging dimensions are 175 mm (width) × 89 mm (height) × 213 mm (depth), describing the transport and storage characteristics.

Operating Conditions

The battery can be operated at an operating temperature of 0 to 40 °C and a relative humidity of 0 to 95 %. The storage temperature ranges from -15 to 45 °C, and the storage humidity is also 0 to 95 %. The operating altitude is limited to 0 to 3000 m, while the storage altitude can reach up to 15000 m.

Warranty

The battery is supplied with a 1-year limited warranty, which is limited to manufacturing defects or material flaws.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Certificates
Compliance certificates	RoHS
Features
Battery capacity	108 VAh
Battery life	5 year(s)
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Packaging data
Package width	175 mm
Package height	89 mm
Package depth	213 mm
Weight & dimensions
Weight	2.59 kg
Width	94 mm
Height	65 mm
Depth	151 mm

---
