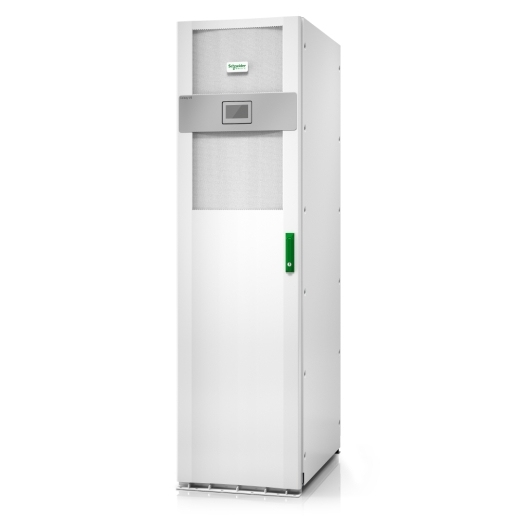

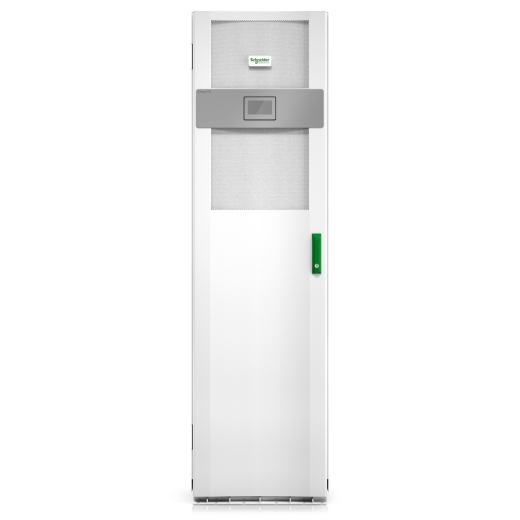

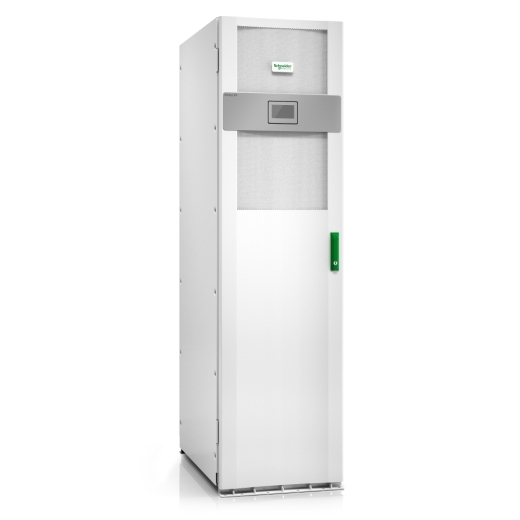

APC Galaxy VS UPS 60kW 400V 3 internal 9Ah smart modular battery strings expandable to 5 Start-up 5x8
|
21.660,00 EUR |
|
|
( 25.775,40 EUR incl. VAT ) ≈ £18,281.04 | ≈ $24,259.20 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 397311 |
|---|---|
| Mfg Part No: | GVSUPS60KB5HS |
| UPC/EAN: | 4064575130834 |
| Weight: | 120 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 480 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 60 kVA |
| Output power | 60000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 108 A |
| Heat dissipation | 7103 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 54 dB |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1005.84 m |
| Non-operating altitude | 0 - 3048 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 1010 mm |
| Package depth | 755 mm |
| Package height | 2082 mm |
| Package weight | 270 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 665 kg |
| Battery width | 75.5 cm |
| Battery depth | 101 cm |
| Battery height | 2.08 m |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 60kW 400V 3 internal 9Ah smart modular battery strings expandable to 5 Start-up 5x8?
The article APC Galaxy VS UPS 60kW 400V 3 internal 9Ah smart modular battery strings expandable to 5 Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS60KB5HS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 60kW 400V 3 internal 9Ah smart modular battery strings expandable to 5 Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 60kW 400V 3 internal 9Ah smart modular battery strings expandable to 5 Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
