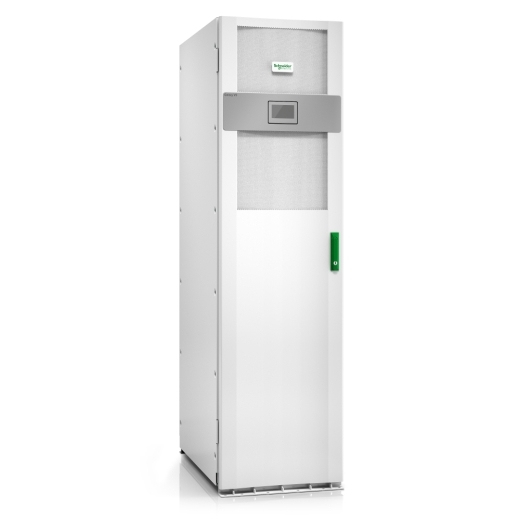

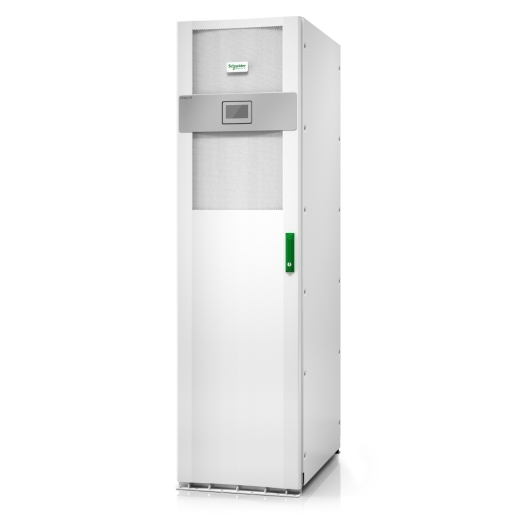

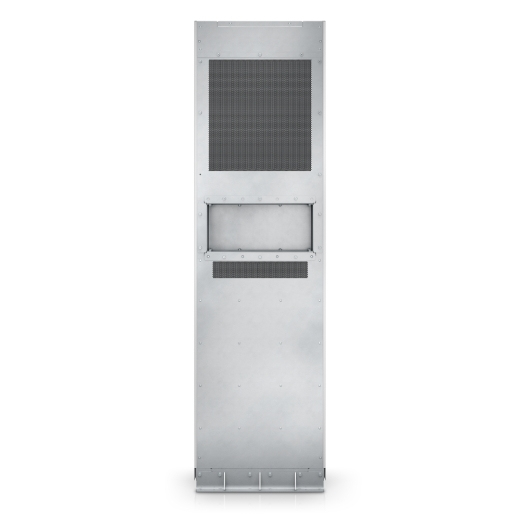

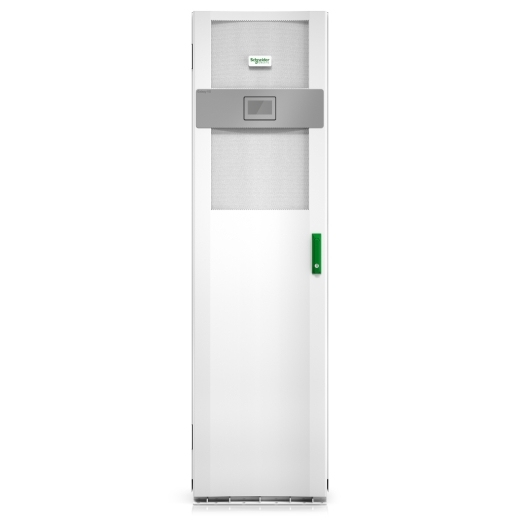

APC Galaxy VS UPS 60kW 400V for up to 5 internal 9Ah smart modular battery strings Start-up 5x8
|
16.055,00 EUR |
|
|
( 19.105,45 EUR incl. VAT ) ≈ £13,550.42 | ≈ $17,981.60 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1559112 |
| Mfg Part No: | GVSUPS60K0B5HS |
| UPC/EAN: | 0731304410089 |
| Weight: | 250 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Charging current | 163 A |
| Certificates | |
| Compliance certificates | RoHS |
| Design | |
| Form factor | Mini Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 60 kVA |
| Output power | 60000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | -0.1% |
| Maximum current | 108 A |
| Heat dissipation | 7103 BTU/h |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 54 dB |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 990 m |
| Non-operating altitude | 0 - 3 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 755 mm |
| Package depth | 1010 mm |
| Package height | 2082 mm |
| Package weight | 250 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 250 kg |
