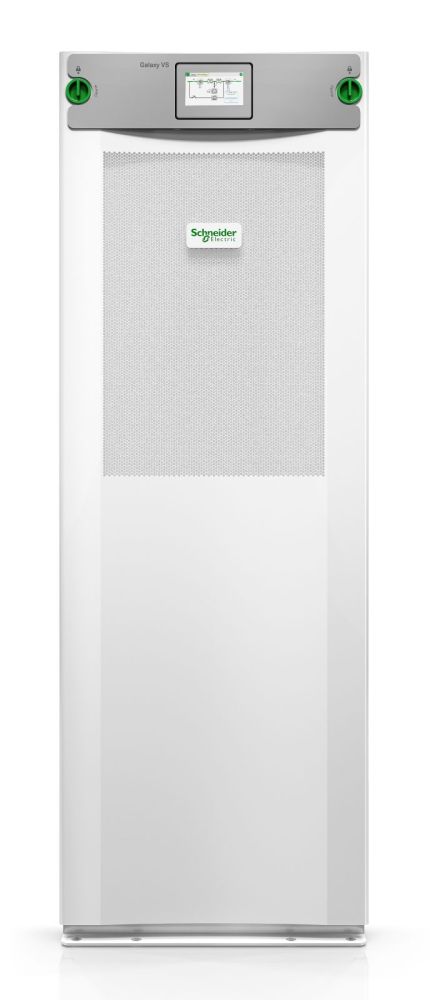

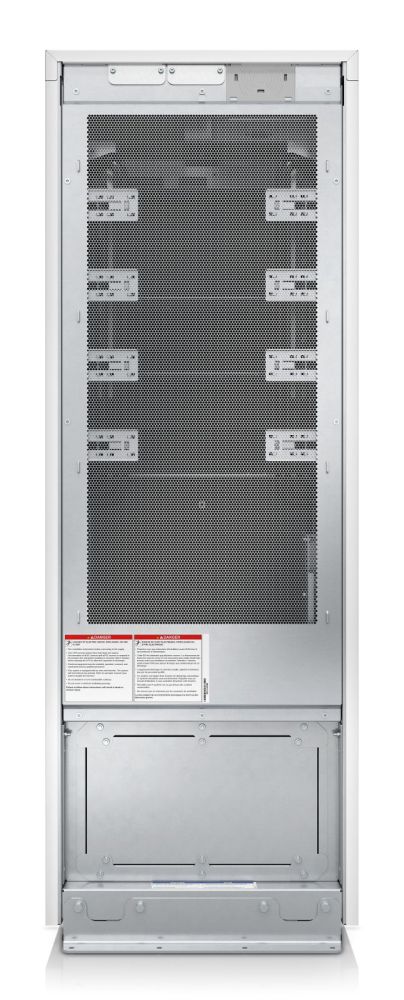

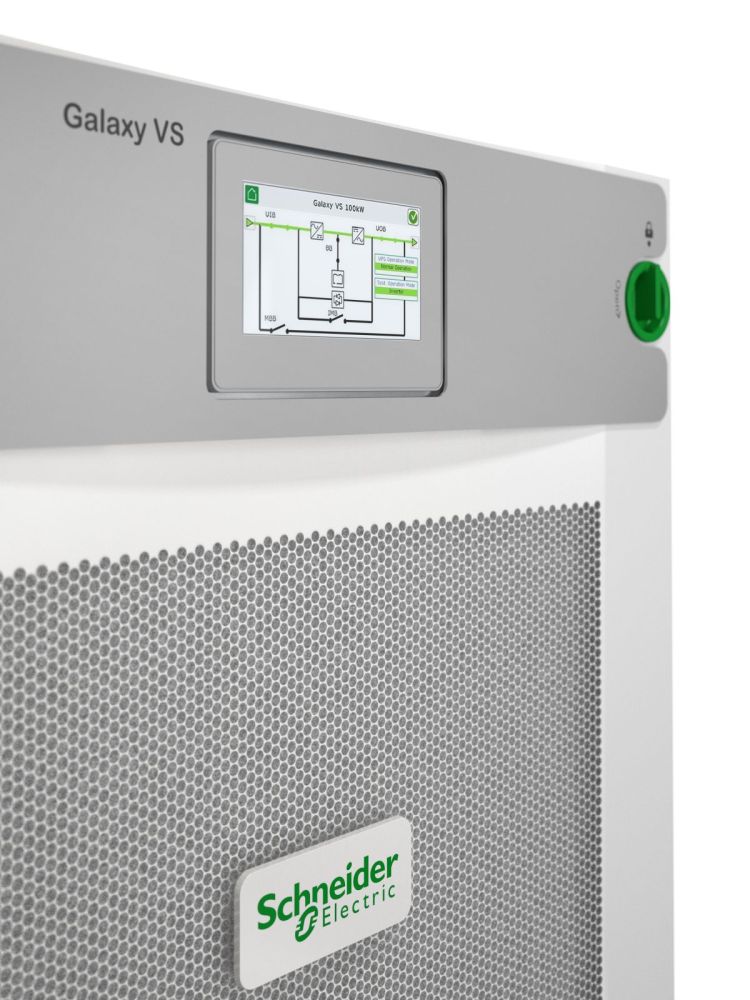

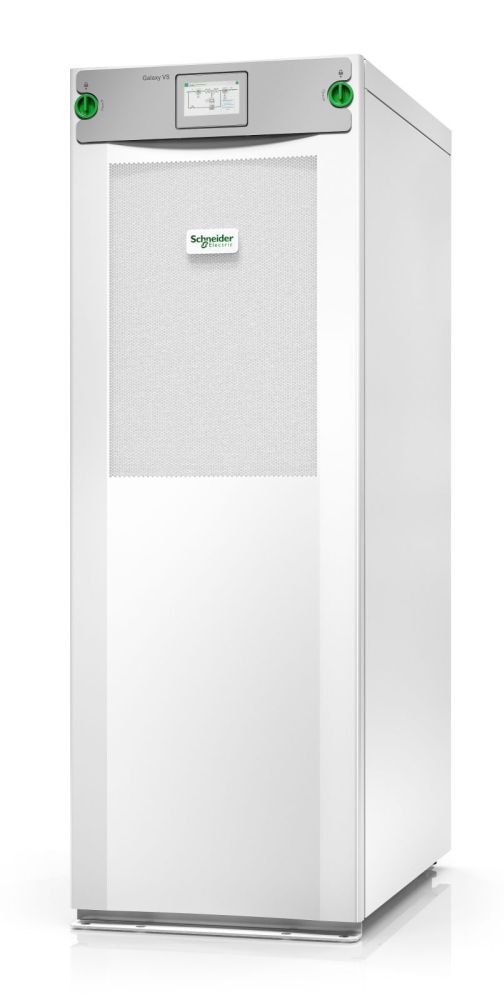

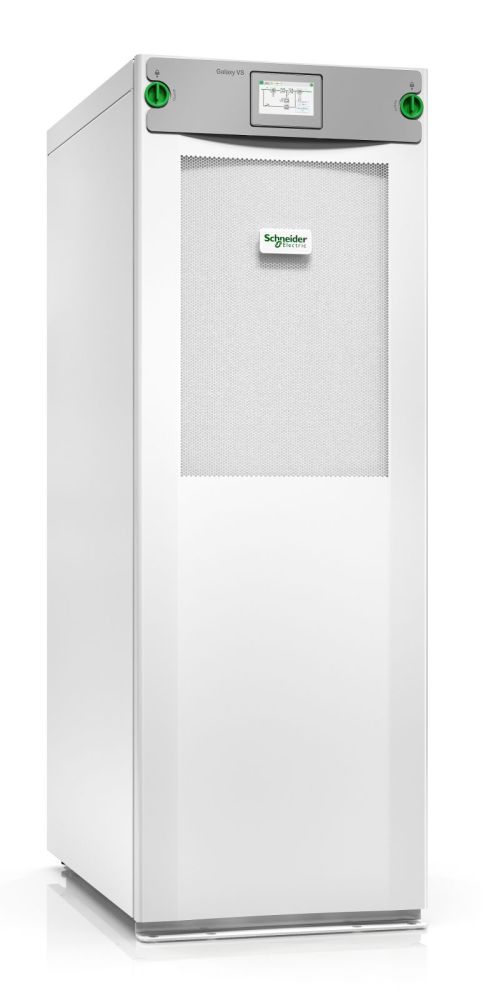

APC Galaxy VS UPS 50kW 400V for External Batteries Start-up 5x8
|
14.725,00 EUR |
|
|
( 17.522,75 EUR incl. VAT ) ≈ £12,427.90 | ≈ $16,492.00 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1280374 |
| Mfg Part No: | GVSUPS50KHS |
| UPC/EAN: | 0731304342786 |
| Weight: | 235 kg |
| Type: | ACCS |
Product information for APC GVSUPS50KHS:
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Certificates | |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 91 A |
| Heat dissipation | 4915.1 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96.1% |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Noise level | 65 dB |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Input connection type | 4-wire (3PH + G), 5-wire (3PH + N + G) |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 235 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 210 kg |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 50kW 400V for External Batteries Start-up 5x8?
The article APC Galaxy VS UPS 50kW 400V for External Batteries Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS50KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 50kW 400V for External Batteries Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 50kW 400V for External Batteries Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
