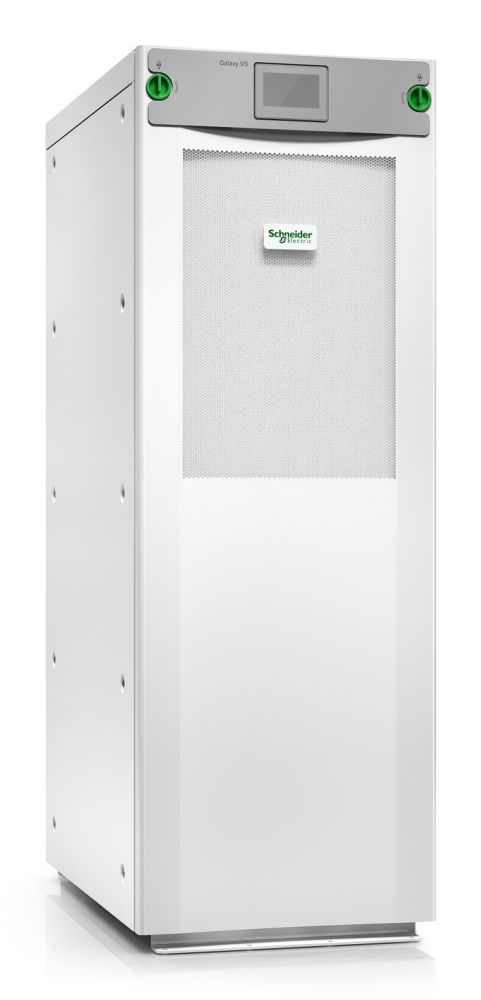

APC Galaxy VS UPS 50kW 400V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8
|
18.525,00 EUR |
|
|
( 22.044,75 EUR incl. VAT ) ≈ £15,635.10 | ≈ $20,748.00 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1528470 |
| Mfg Part No: | GVSUPS50KB4HS |
| UPC/EAN: | 0731304406785 |
| Weight: | 490 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Certificates | |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 90 A |
| Heat dissipation | 6151 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Noise level | 61 dB |
| Power protection features | Overload, Short circuit |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3000 m |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 490 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 460 kg |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 50kW 400V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8?
The article APC Galaxy VS UPS 50kW 400V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS50KB4HS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 50kW 400V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 50kW 400V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
