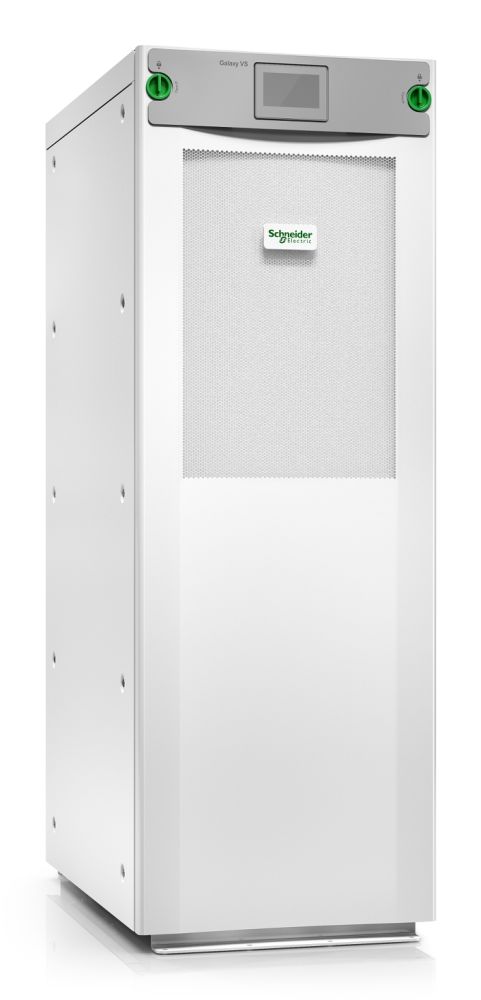

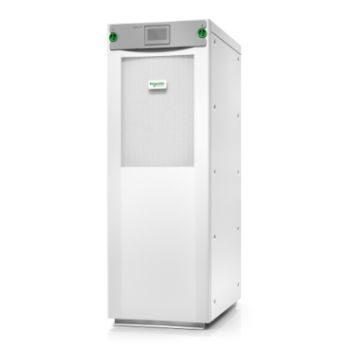

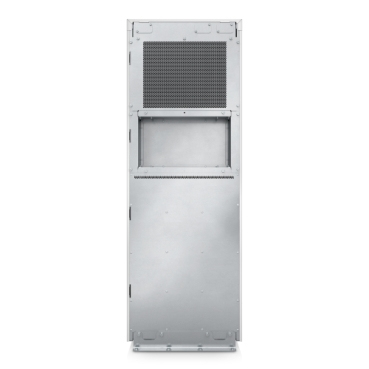

APC GVSUPS50KB4GS GALAXY VS UPS 50 kW 480 V 2 INT
|
28.785,00 EUR |
|
|
( 34.254,15 EUR incl. VAT ) ≈ £24,093.05 | ≈ $32,210.42 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1130336 |
| Mfg Part No: | GVSUPS50KB4GS |
| UPC/EAN: | 0731304641841 |
| Weight: | 490 kg |
| Type: | ACCS |
Product information for APC GVSUPS50KB4GS:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Certificates | |
| Certification | CSA C22.2 No 107.3, FCC Part 15 class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (max) | 480 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 480 V |
| Output frequency | 50/60 Hz |
| Maximum current | 74 A |
| Heat dissipation | 5210 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Power protection features | Overload, Short circuit |
| ECO mode | |
| Audible alarm(s) | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3048 m |
| Packaging content | |
| Manual | |
| Quick installation guide | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 490 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 460 kg |
Questions & answers
What is the delivery time of APC GVSUPS50KB4GS GALAXY VS UPS 50 kW 480 V 2 INT?
The article APC GVSUPS50KB4GS GALAXY VS UPS 50 kW 480 V 2 INT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS50KB4GS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC GVSUPS50KB4GS GALAXY VS UPS 50 kW 480 V 2 INT always at the best possible price. We can give you a discount of 2% on APC GVSUPS50KB4GS GALAXY VS UPS 50 kW 480 V 2 INT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
