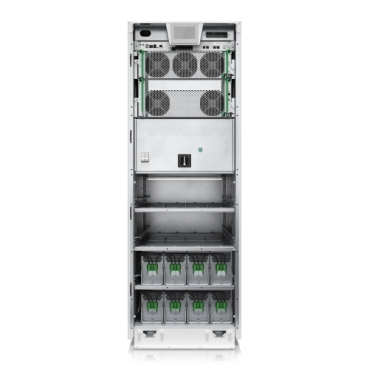

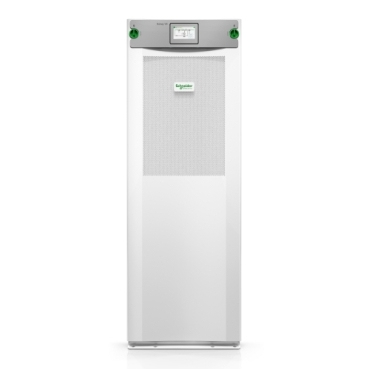

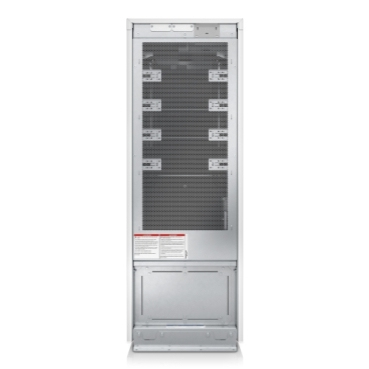

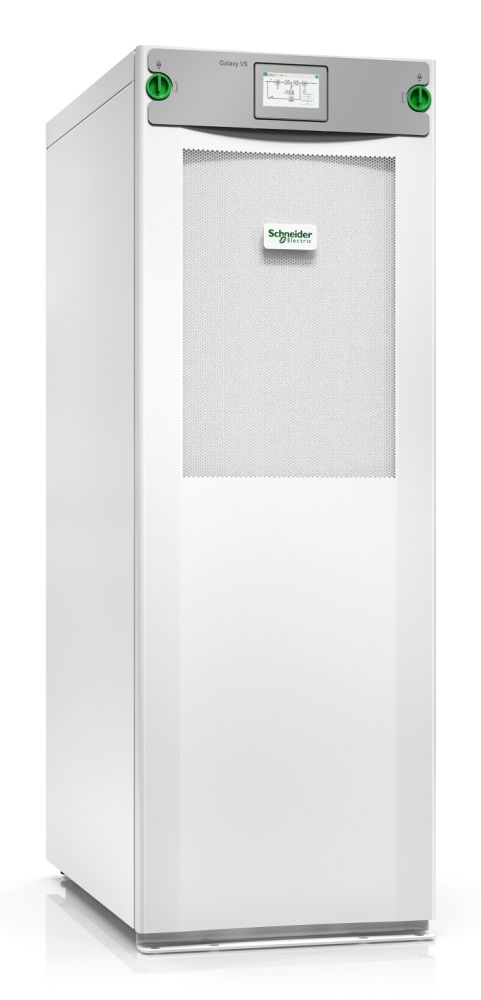

APC Galaxy VS UPS 50kW 480V for up to 4 internal 9Ah smart modular battery strings Start-up 5x8
|
20.653,41 EUR |
|
|
( 24.577,56 EUR incl. VAT ) ≈ £17,307.56 | ≈ $23,193.78 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1638734 |
|---|---|
| Mfg Part No: | GVSUPS50K0B4GS |
| UPC/EAN: | 0731304409939 |
| Weight: | 200 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 480 V |
| Certificates | |
| Compliance certificates | CE |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 408 V |
| Input operation voltage (max) | 552 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 480 V |
| Output frequency | 50/60 Hz |
| Maximum current | 74 A |
| Heat dissipation | 5210 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Power protection features | Short circuit |
| Audible alarm(s) | |
| Logistics data | |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.8 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 200 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 50kW 480V for up to 4 internal 9Ah smart modular battery strings Start-up 5x8?
The article APC Galaxy VS UPS 50kW 480V for up to 4 internal 9Ah smart modular battery strings Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS50K0B4GS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 50kW 480V for up to 4 internal 9Ah smart modular battery strings Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 50kW 480V for up to 4 internal 9Ah smart modular battery strings Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
