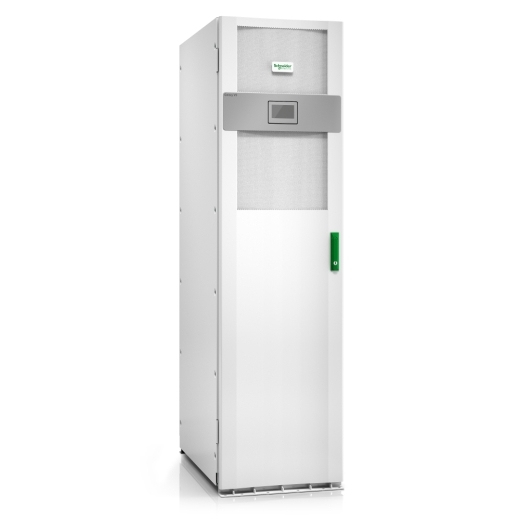

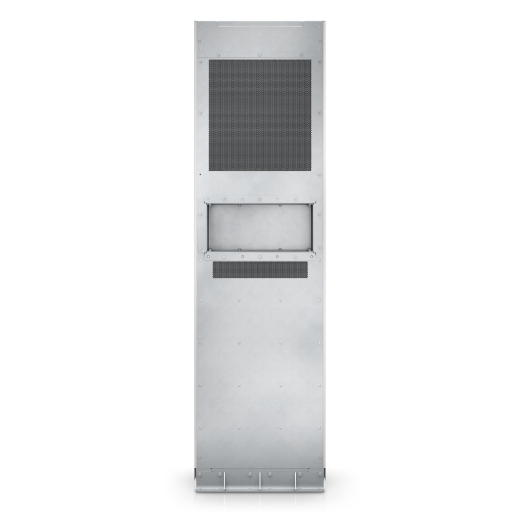

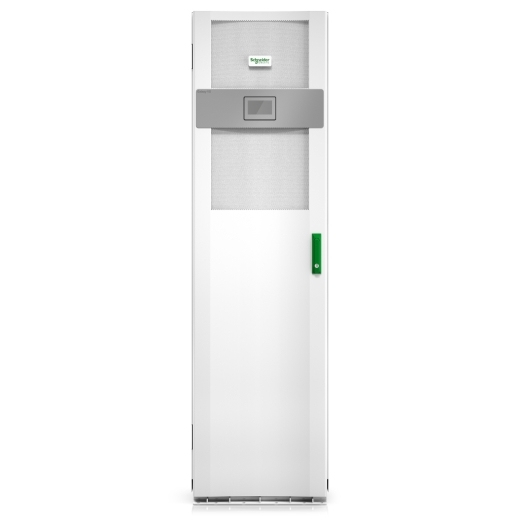

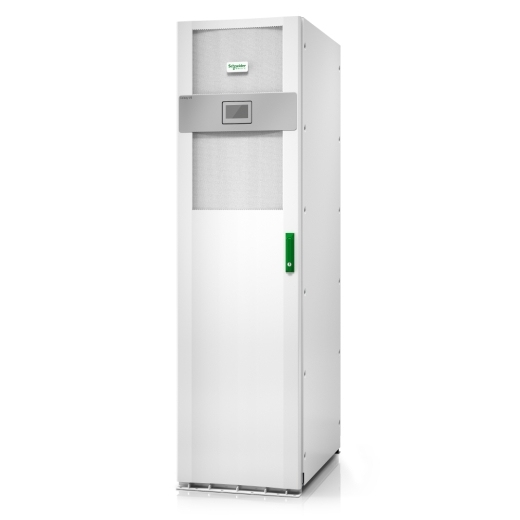

APC Galaxy VS UPS 40kW 400V with N+1 power module for 5 smart modular 9Ah battery strings Start-up 5x8
|
19.855,00 EUR |
|
|
( 23.627,45 EUR incl. VAT ) ≈ £16,757.62 | ≈ $22,237.60 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1539055 |
|---|---|
| Mfg Part No: | GVSUPS40KR0B5HS |
| UPC/EAN: | 0731304410133 |
| Weight: | 250 kg |
| Type: | ACCS |
Product information for APC GVSUPS40KR0B5HS:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Certificates | |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 72 A |
| Response time | 3 ms |
| Heat dissipation | 4412 BTU/h |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1005.8 m |
| Non-operating altitude | 0 - 3048 m |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 755 mm |
| Package depth | 1010 mm |
| Package height | 2082 mm |
| Package weight | 250 kg |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 250 kg |
Questions & answers
What is the delivery time of APC Galaxy VS UPS 40kW 400V with N+1 power module for 5 smart modular 9Ah battery strings Start-up 5x8?
The article APC Galaxy VS UPS 40kW 400V with N+1 power module for 5 smart modular 9Ah battery strings Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS40KR0B5HS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VS UPS 40kW 400V with N+1 power module for 5 smart modular 9Ah battery strings Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VS UPS 40kW 400V with N+1 power module for 5 smart modular 9Ah battery strings Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
