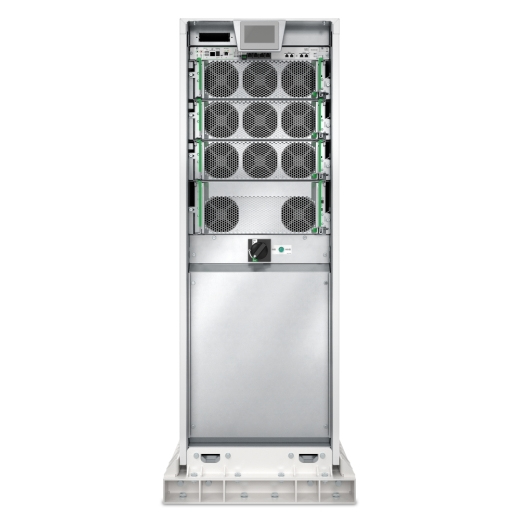

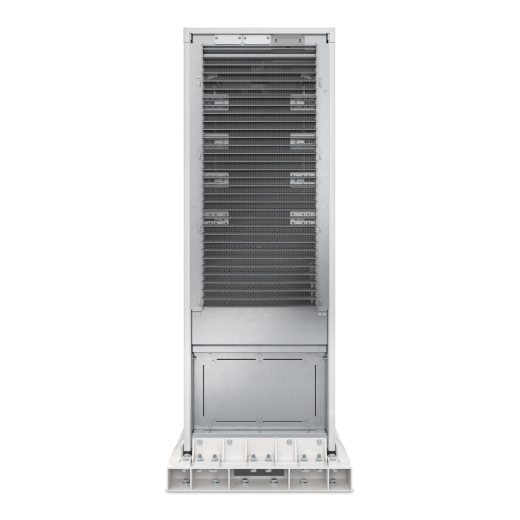

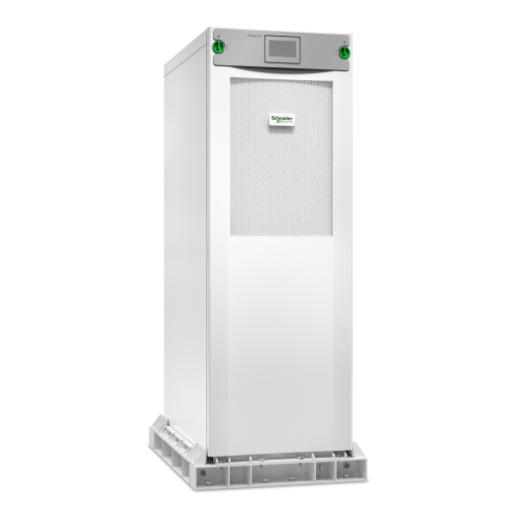

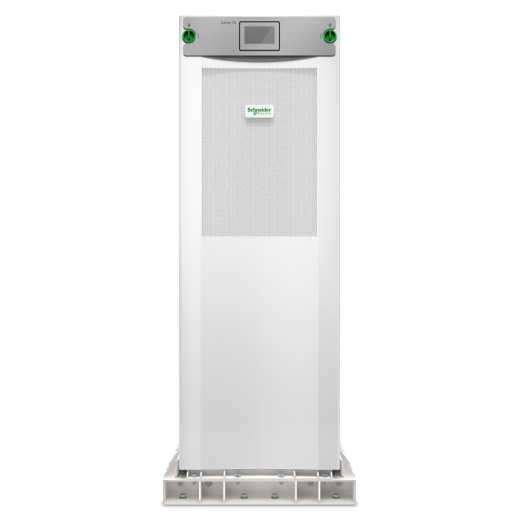

APC GVSUPS30KMHS GALAXY VS UPS 30 kW 400 V F/ EXT
|
13.300,00 EUR |
|
|
( 15.827,00 EUR incl. VAT ) ≈ £11,132.10 | ≈ $14,882.70 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1121539 |
| Mfg Part No: | GVSUPS30KMHS |
| UPC/EAN: | 0731304418344 |
| Weight: | 0 kg |
| Type: | ACCS |
Product information for APC GVSUPS30KMHS:
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 576 V |
| Charging current | 102 A |
| Certificates | |
| Certification | EN/IEC 62040-1, EN/IEC 62040-2, FCC, IEC 60721-4-2, UL 1778 |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Built-in fan | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 466 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 400 V |
| Output operation voltage (max) | 400 V |
| Output frequency | 50/60 Hz |
| Maximum current | 54 A |
| Heat dissipation | 3122 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 68 dB |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1005.84 m |
| Other features | |
| Bypass | Static |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 250 kg |
| Package type | Box |
| Weight & dimensions | |
| Width | 520 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 206 kg |
Questions & answers
What is the delivery time of APC GVSUPS30KMHS GALAXY VS UPS 30 kW 400 V F/ EXT?
The article APC GVSUPS30KMHS GALAXY VS UPS 30 kW 400 V F/ EXT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS30KMHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC GVSUPS30KMHS GALAXY VS UPS 30 kW 400 V F/ EXT always at the best possible price. We can give you a discount of 2% on APC GVSUPS30KMHS GALAXY VS UPS 30 kW 400 V F/ EXT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
