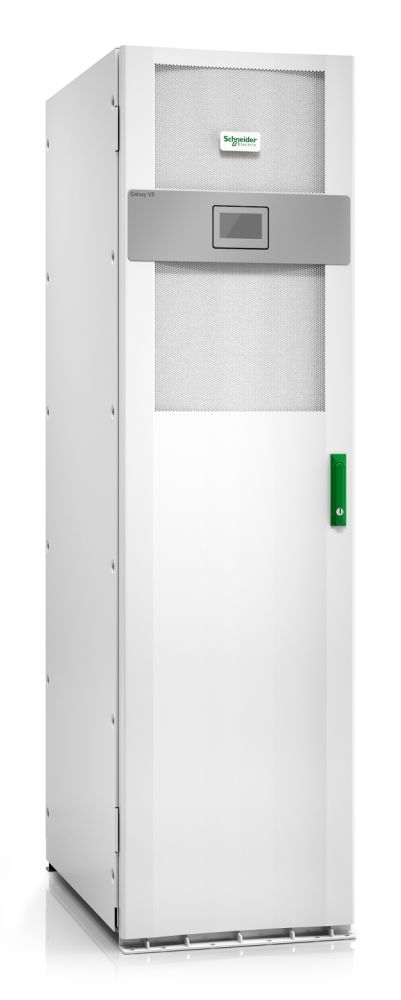

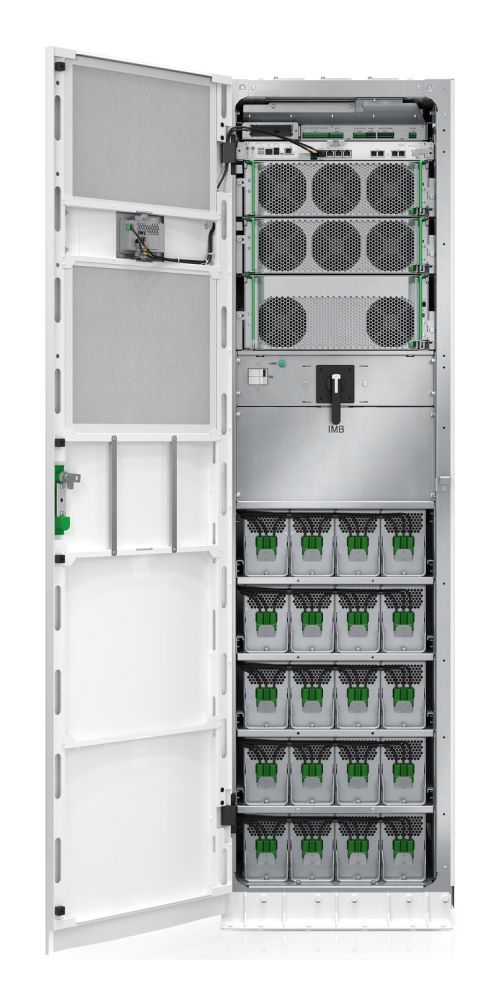

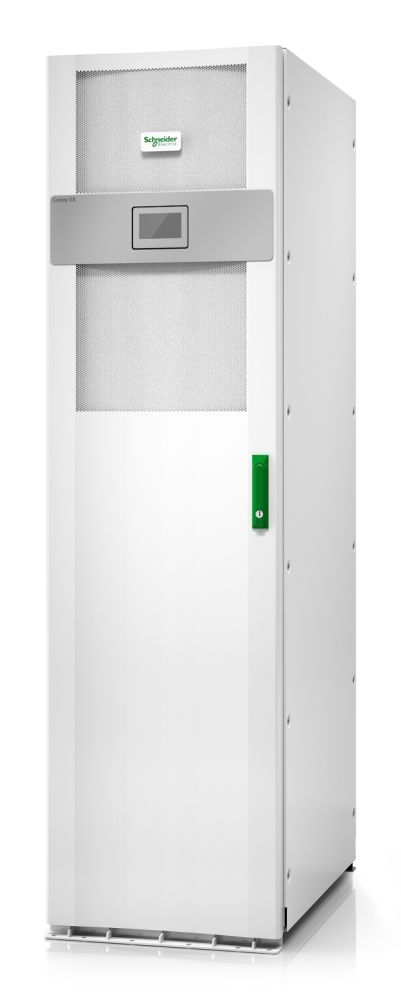

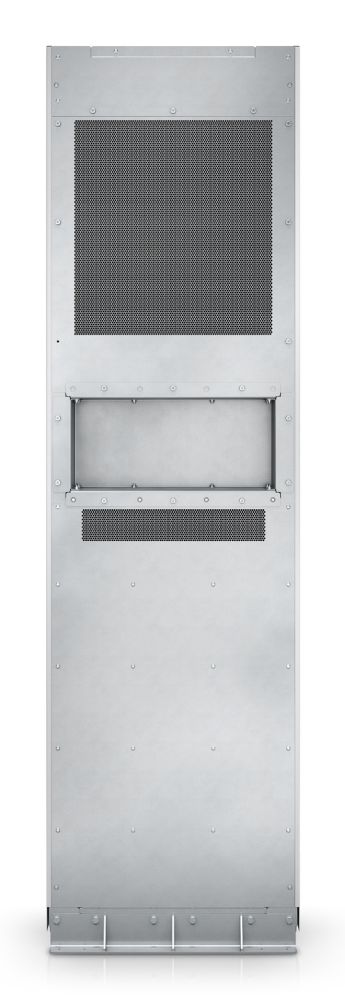

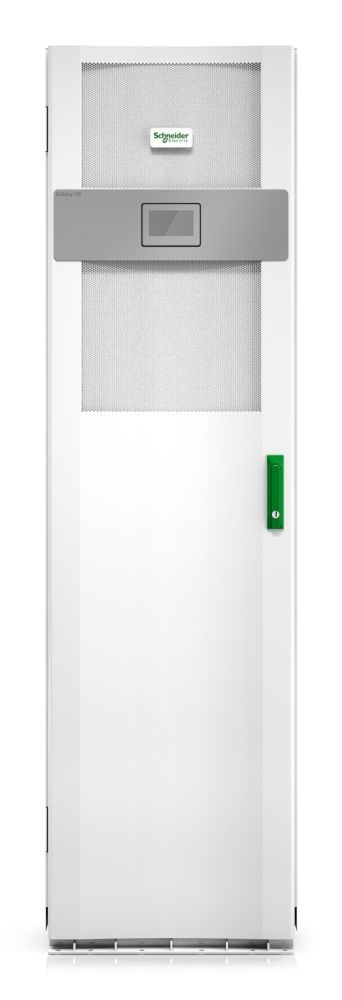

APC GVSUPS30KB5FS GALAXY VS UPS 30 kW 208 V 3 INT.
|
27.550,00 EUR |
|
|
( 32.784,50 EUR incl. VAT ) ≈ £23,059.35 | ≈ $30,828.45 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1310247 |
|---|---|
| Mfg Part No: | GVSUPS30KB5FS |
| UPC/EAN: | 0731304409731 |
| Weight: | 665 kg |
| Type: | ACCS |
Product information for APC GVSUPS30KB5FS:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Design | |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Features | |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 220 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 50/60 Hz |
| Maximum current | 107 A |
| Heat dissipation | 6526 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 54 dB |
| Logistics data | |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 847 mm |
| Package height | 197 mm |
| Package weight | 665 kg |
| Technical details | |
| Minimum order quantity | 1 pc(s) |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 665 kg |
Questions & answers
What is the delivery time of APC GVSUPS30KB5FS GALAXY VS UPS 30 kW 208 V 3 INT.?
The article APC GVSUPS30KB5FS GALAXY VS UPS 30 kW 208 V 3 INT. is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS30KB5FS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC GVSUPS30KB5FS GALAXY VS UPS 30 kW 208 V 3 INT. always at the best possible price. We can give you a discount of 2% on APC GVSUPS30KB5FS GALAXY VS UPS 30 kW 208 V 3 INT. if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
