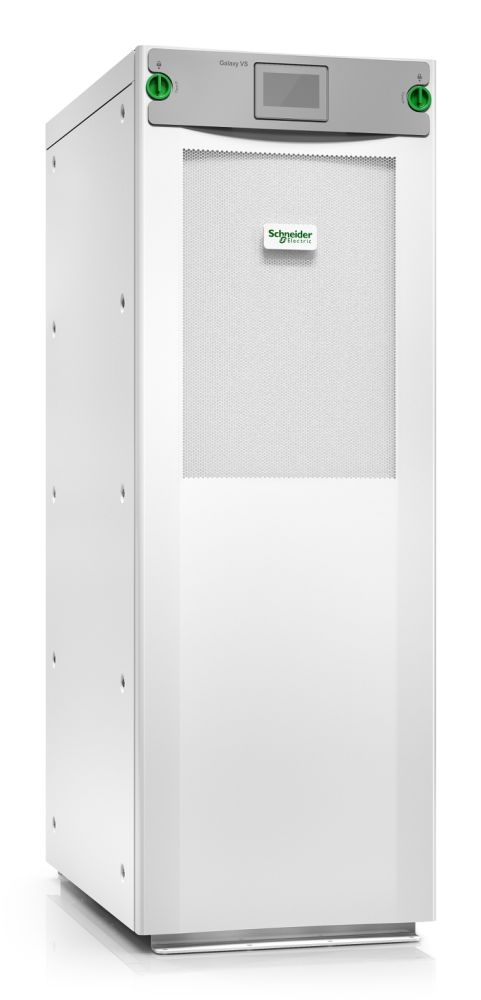

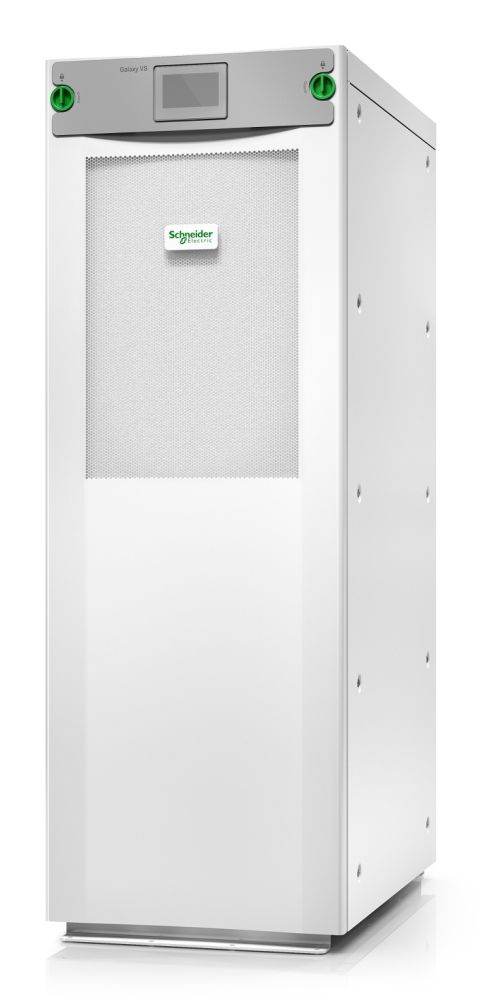

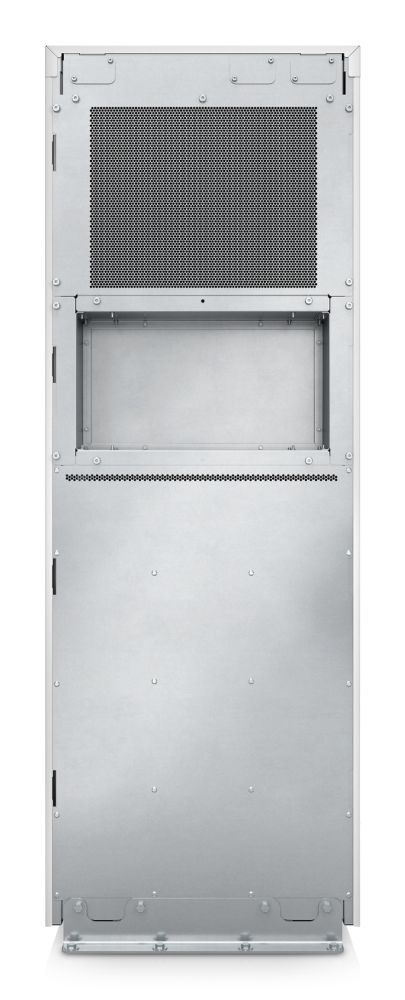

APC Galaxy VS UPS 20kW 208V 2 internal 9Ah smart modular battery strings expandable to 4 Start-up 5x8
|
18.240,00 EUR |
|
|
( 21.705,60 EUR incl. VAT ) ≈ £15,285.12 | ≈ $20,483.52 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 126830 |
| Mfg Part No: | GVSUPS20KB4FS |
| Weight: | 320 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Certificates | |
| Certification | CSA C22.2 No 107.3 FCC Part 15 class A IEC 62040-3 IEC 60721-4-2 Level 2M2 UL 1778 5th edition |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Sine |
| Input frequency | 40/70 Hz |
| Output frequency | 50/60 Hz |
| Maximum current | 72 A |
| Heat dissipation | 4356 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 80% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3048 m |
| Packaging data | |
| Package width | 990 mm |
| Package depth | 640 mm |
| Package height | 1680 mm |
| Package weight | 490 kg |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 460 kg |
