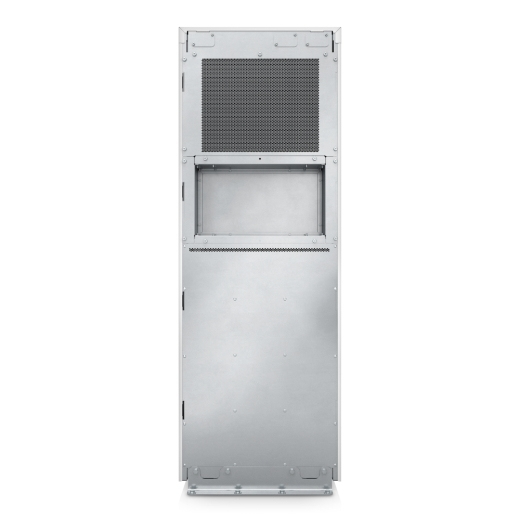

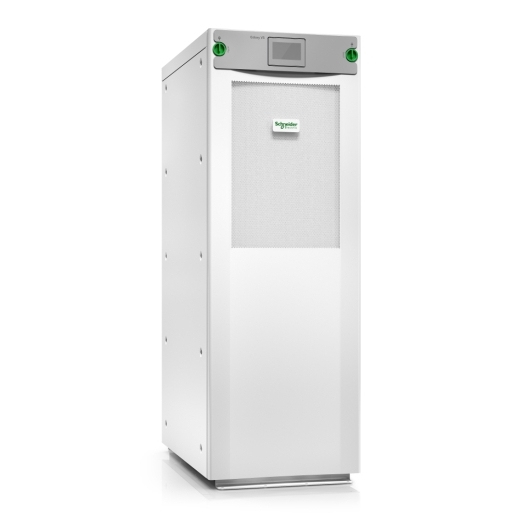

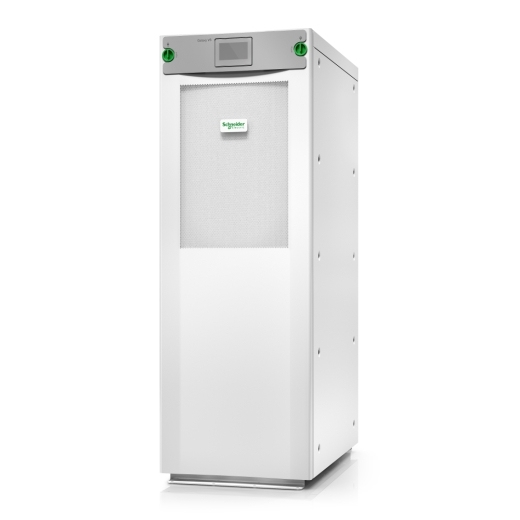

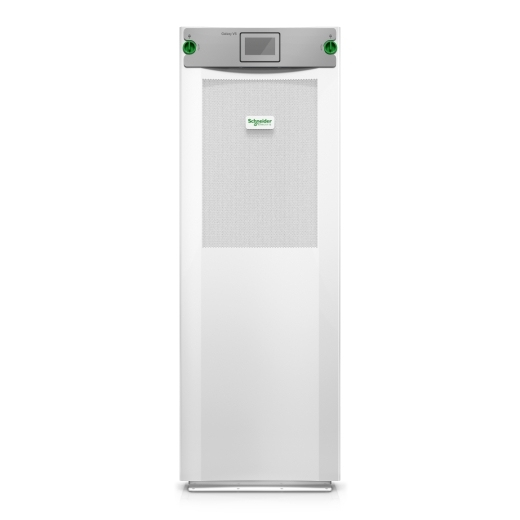

APC GVSUPS120KHS GALAXY VS UPS 120KW 400V F/EXT
|
24.890,00 EUR |
|
|
( 29.619,10 EUR incl. VAT ) ≈ £20,832.93 | ≈ $27,851.91 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1504688 |
|---|---|
| Mfg Part No: | GVSUPS120KHS |
| UPC/EAN: | 0731304407904 |
| Weight: | 0 kg |
| Type: | BATT |
Product information for APC GVSUPS120KHS:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Certificates | |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 120 kVA |
| Output power | 120000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 216 A |
| Heat dissipation | 12509 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| ECO mode | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1015.9 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
| Management card included | |
| Manual | |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 290 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 275 kg |
Questions & answers
What is the delivery time of APC GVSUPS120KHS GALAXY VS UPS 120KW 400V F/EXT?
The article APC GVSUPS120KHS GALAXY VS UPS 120KW 400V F/EXT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVSUPS120KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC GVSUPS120KHS GALAXY VS UPS 120KW 400V F/EXT always at the best possible price. We can give you a discount of 2% on APC GVSUPS120KHS GALAXY VS UPS 120KW 400V F/EXT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
