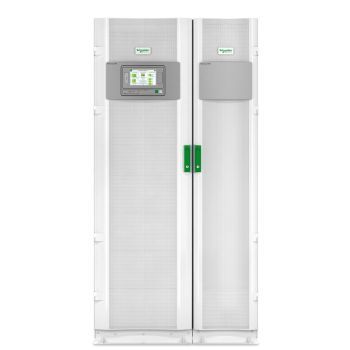

APC Galaxy VM 200kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8
|
35.055,00 EUR |
|
|
( 41.715,45 EUR incl. VAT ) ≈ £29,341.04 | ≈ $39,226.55 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1977005 |
| Mfg Part No: | GVMPB200KHS |
| Weight: | 770 kg |
| Battery | |
| Battery voltage | 480 V |
| Certificates | |
| Certification | C-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, ETL, IBC 2012 and CBC2013 to Sds=2.02g , ISTA 2B, OSHPD, RCM, UL 1778 |
| Design | |
| Form factor | Tower |
| Housing material | Steel |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 200 kVA |
| Output power | 180000 W |
| Waveform | Sine |
| Input operation voltage (min) | 250 V |
| Input operation voltage (max) | 600 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 328 A |
| Heat dissipation | 24570 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Power protection features | Overload |
| ECO mode | |
| Emergency Power Off (EPO) | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 14763 m |
| Packaging content | |
| Quick installation guide | |
| Packaging data | |
| Package width | 1490 mm |
| Package depth | 1060 mm |
| Package height | 2156 mm |
| Package weight | 770 kg |
| Ports & interfaces | |
| Serial interface type | RS-485 |
| Serial interface | |
| Emergency Power Off (EPO) connector | |
| SmartSlot | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 1052 mm |
| Depth | 854 mm |
| Height | 1970 mm |
| Weight | 724 kg |
Questions & answers
What is the delivery time of APC Galaxy VM 200kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8?
The article APC Galaxy VM 200kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVMPB200KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VM 200kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VM 200kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
