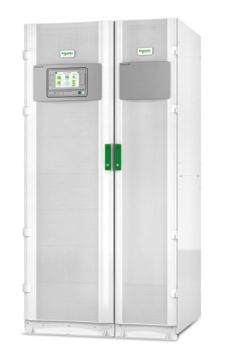

APC Galaxy VM 160kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8
|
33.060,00 EUR |
|
|
( 39.341,40 EUR incl. VAT ) ≈ £27,671.22 | ≈ $36,994.14 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1977004 |
| Mfg Part No: | GVMPB160KHS |
| Weight: | 744.5 kg |
| Battery | |
| Battery voltage | 480 V |
| Certificates | |
| Certification | C-Tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012 and CBC2013 to Sds=2.02g, OSHPD, RCM, UL 1778, VFI-SS-111 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 160 kVA |
| Output power | 144000 W |
| Waveform | Sine |
| Input operation voltage (min) | 250 V |
| Input operation voltage (max) | 600 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 262 A |
| Input power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | |
| Web-based management | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Packaging data | |
| Package width | 1490 mm |
| Package depth | 1060 mm |
| Package height | 2156 mm |
| Package weight | 744.5 kg |
| Ports & interfaces | |
| AC outlet types | Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| Power plug | Terminal |
| AC outlets quantity | 2 AC outlet(s) |
| Emergency Power Off (EPO) connector | |
| SmartSlot | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 1052 mm |
| Depth | 854 mm |
| Height | 1970 mm |
| Weight | 699 kg |
Questions & answers
What is the delivery time of APC Galaxy VM 160kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8?
The article APC Galaxy VM 160kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC GVMPB160KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Galaxy VM 160kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 always at the best possible price. We can give you a discount of 2% on APC Galaxy VM 160kVA UPS Parallel 400-400V with Backfeed protection Start up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
