APC Easy UPS 3S 40 kVA 400 3:3 Internal Bat
|
11.704,33 EUR |
|
|
( 13.928,15 EUR incl. VAT ) ≈ £9,796.52 | ≈ $13,097.15 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1637780 |
| Mfg Part No: | E3SUPS40KHB1 |
| UPC/EAN: | 3606489697952 |
| Weight: | 0 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |

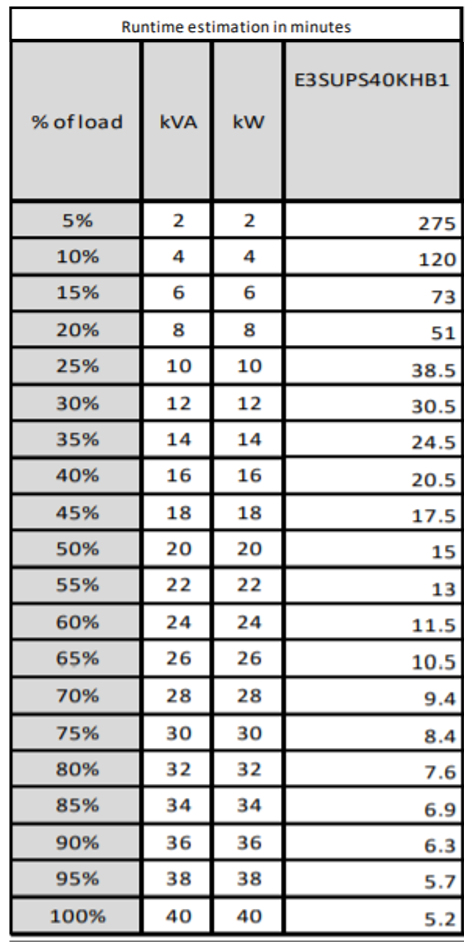

| Typical backup time at full load | 10 min |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 400 V |
| Output frequency regulation | 45 - 65 Hz |
| Maximum current | 73 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96% |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 9999 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 643 kg |
| Ports & interfaces | |
| AC outlet types | Hardwire, Terminal |
| Serial interface type | RS-232 |
| USB port | |
| Serial interface | |
| SmartSlot | |
| SmartConnect port | |
| Safety regulation & standards | |
| Safety | IEC 62040-1-1 |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 969 mm |
| Height | 1400 mm |
| Weight | 590 kg |
Questions & answers
What is the delivery time of APC Easy UPS 3S 40 kVA 400 3:3 Internal Bat?
The article APC Easy UPS 3S 40 kVA 400 3:3 Internal Bat is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS40KHB1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Easy UPS 3S 40 kVA 400 3:3 Internal Bat always at the best possible price. We can give you a discount of 2% on APC Easy UPS 3S 40 kVA 400 3:3 Internal Bat if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
