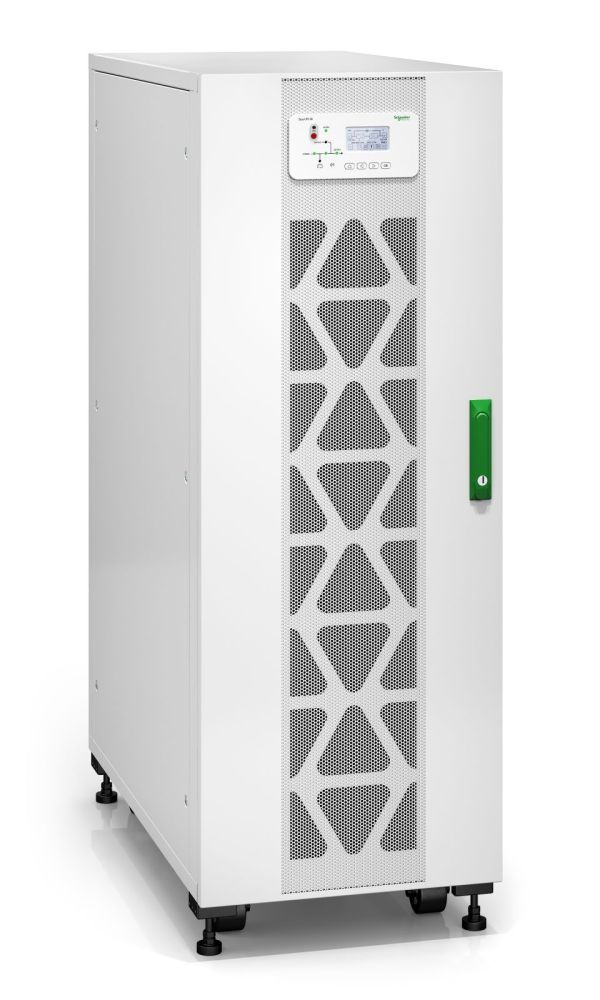

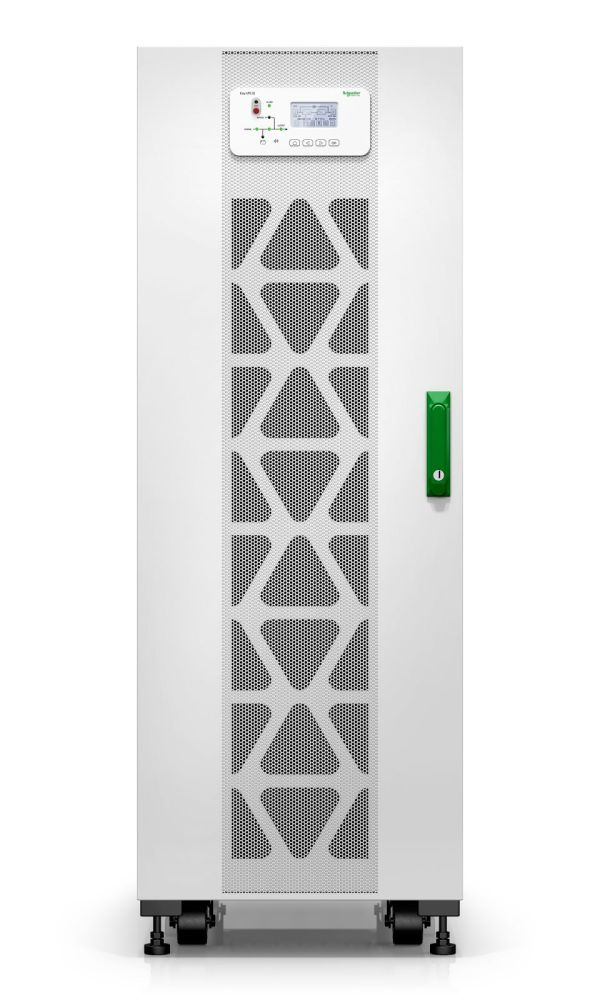

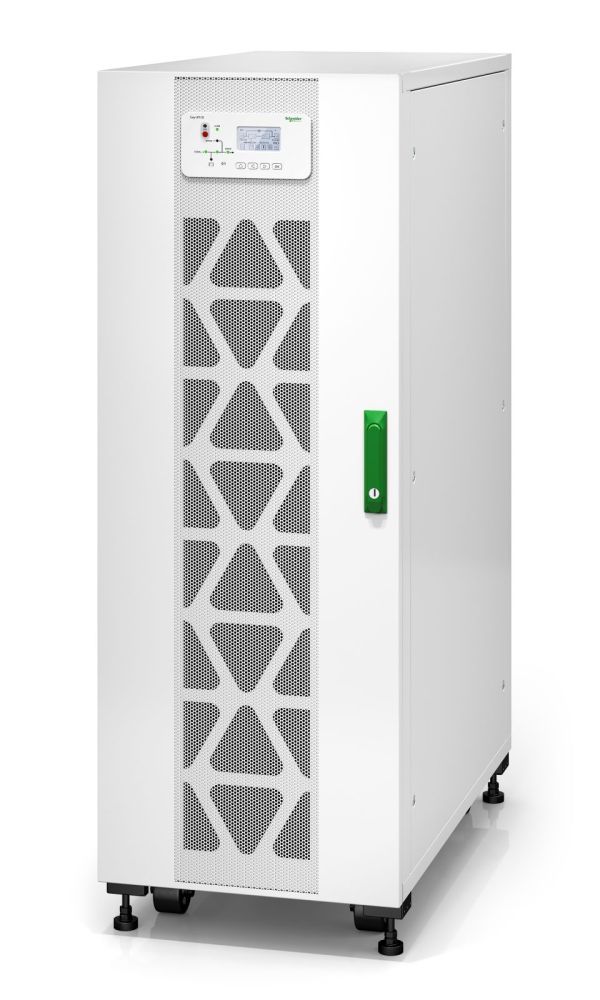

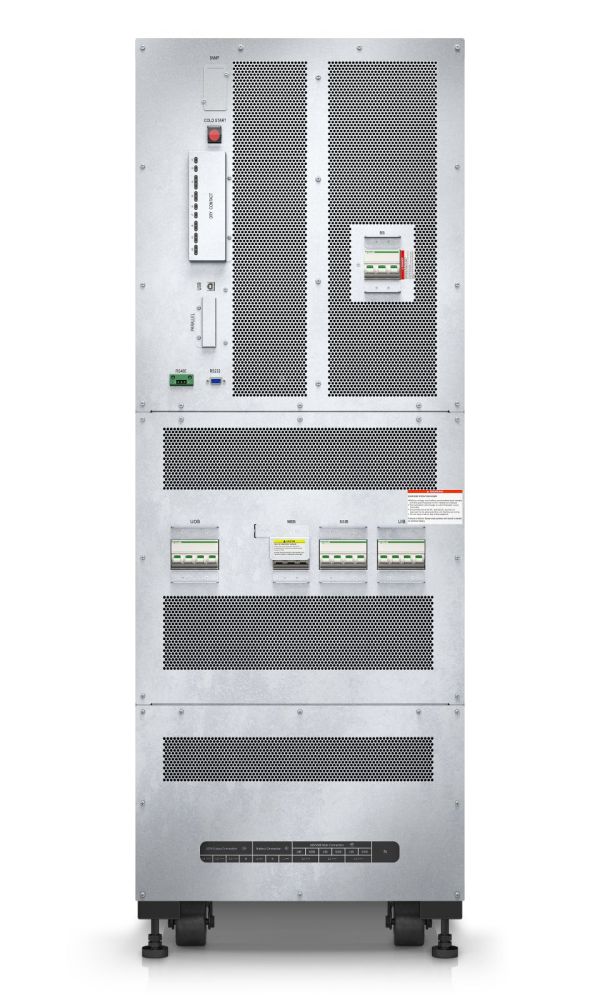

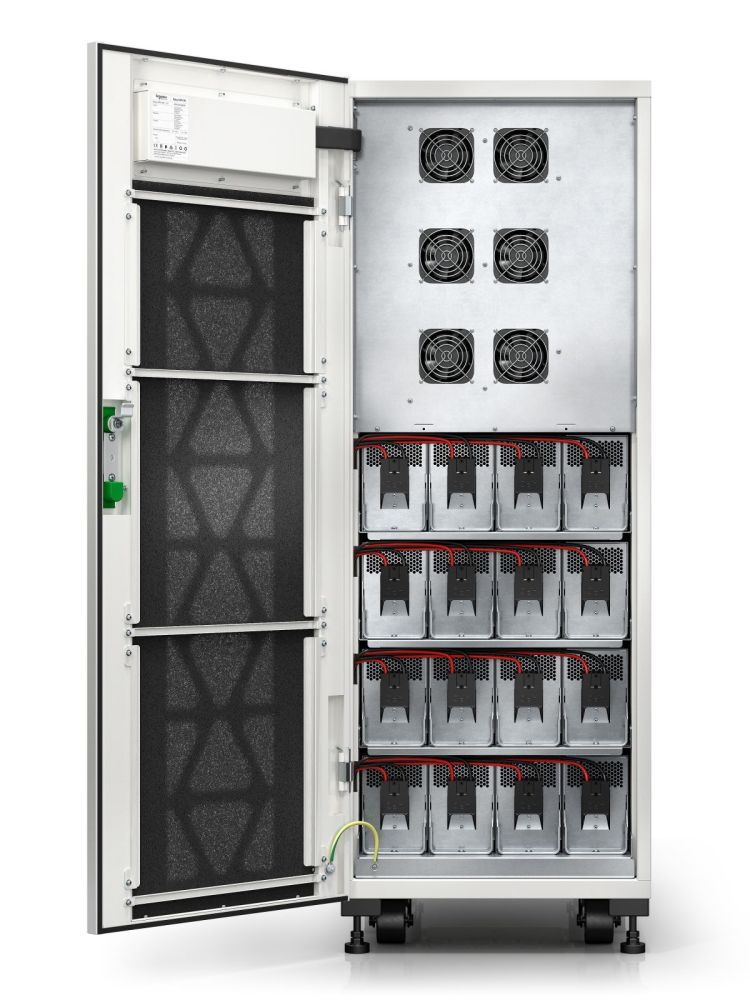

APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white
|
14.589,15 EUR 15.203,43 EUR |
|||||||||||
|
( 17.361,09 EUR incl. VAT ) ≈ £12,313.24 | ≈ $16,339.85 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014131 | ||||||||||
| Mfg Part No: | E3SUPS40KHB | ||||||||||
| UPC/EAN: | 0731304340829 | ||||||||||
| Weight: | 195 kg | ||||||||||
| Type: | E3SUPS40KHB | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS40KHB:
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 400 V |
| Output frequency regulation | 45 - 65 Hz |
| Maximum current | 73 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96% |
| Noise level | 63 dB |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 9999 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Management card included | |
| Packaging data | |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 195 kg |
| Ports & interfaces | |
| Serial interface type | RS-232 |
| USB port | |
| Serial interface | |
| SmartSlot | |
| SmartConnect port | |
| Safety regulation & standards | |
| Safety | IEC 62040-1-1 |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 760 mm |
| Height | 1400 mm |
| Weight | 158 kg |
Questions & answers
What is the delivery time of APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white?
The article APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS40KHB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white always at the best possible price. We can give you a discount of 2% on APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS40KHB Easy UPS 3S UPS AC 400 V 40 kW 40000 VA 3-phase white we can offer you a price of 13.713,80 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
