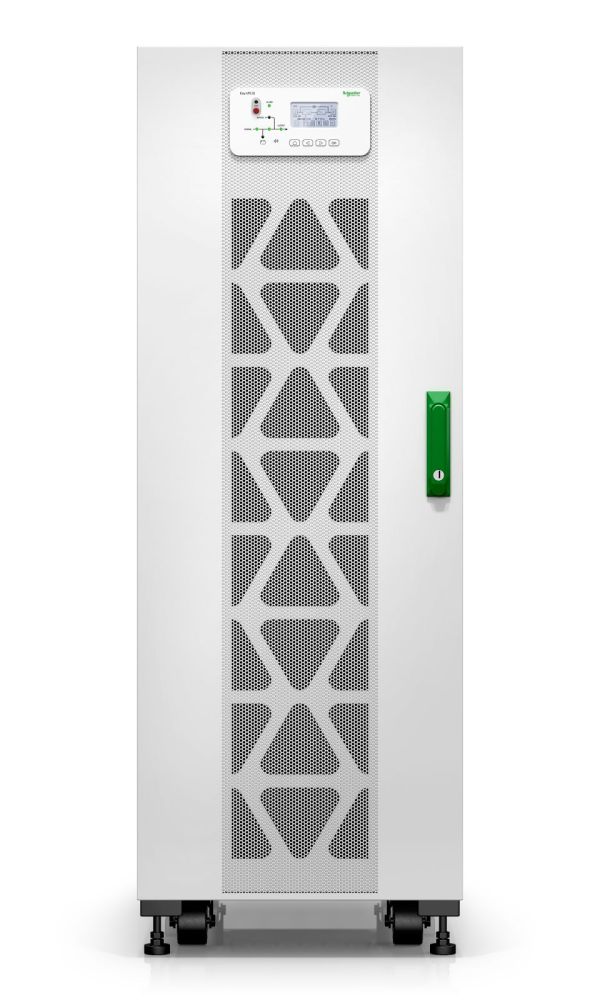

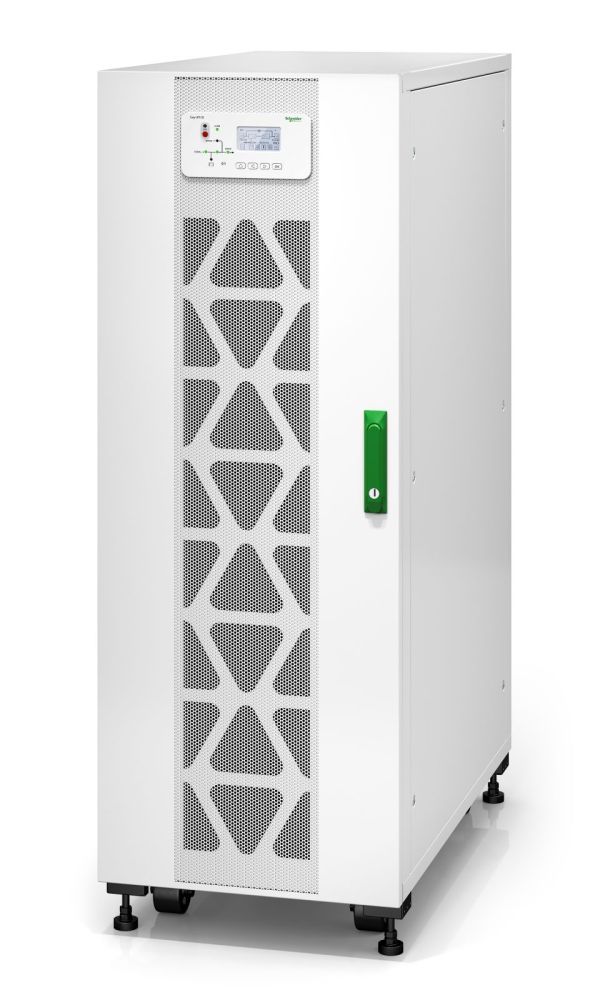

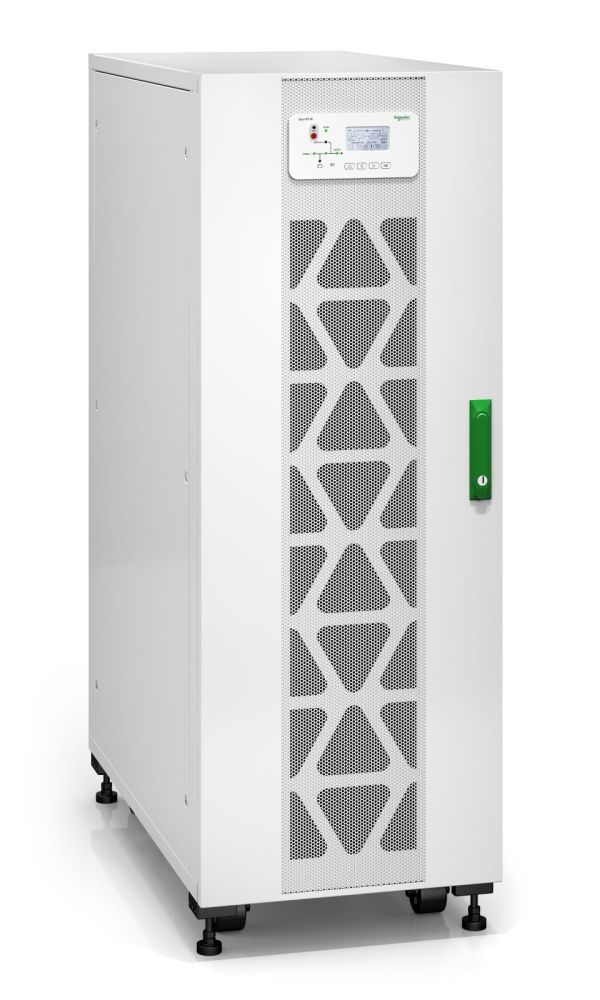

APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white
|
19.885,40 EUR 20.722,68 EUR |
|||||||||||
|
( 23.663,63 EUR incl. VAT ) ≈ £16,783.28 | ≈ $22,271.65 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014236 | ||||||||||
| Mfg Part No: | E3SUPS30KHB2 | ||||||||||
| UPC/EAN: | 0731304428282 | ||||||||||
| Weight: | 672.5 kg | ||||||||||
| Type: | E3SUPS30KHB2 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS30KHB2:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 4 |

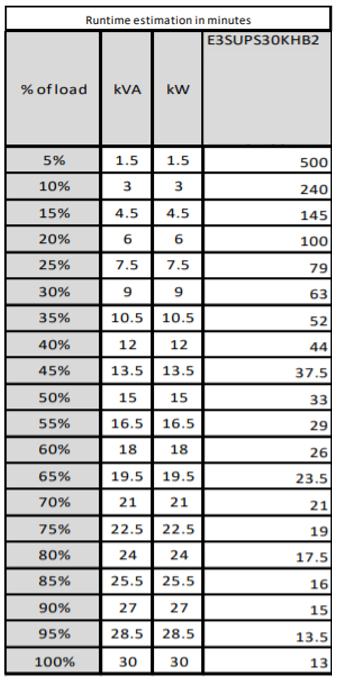

| Typical backup time at full load | 25 min |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Output voltage | 400 V |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 638 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 969 mm |
| Weight | 584 kg |
Questions & answers
What is the delivery time of APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white?
The article APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS30KHB2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white always at the best possible price. We can give you a discount of 2% on APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS30KHB2 Easy UPS 3S UPS AC 400 V 30 kW 30000 VA 3-phase 20 min white we can offer you a price of 18.692,28 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
