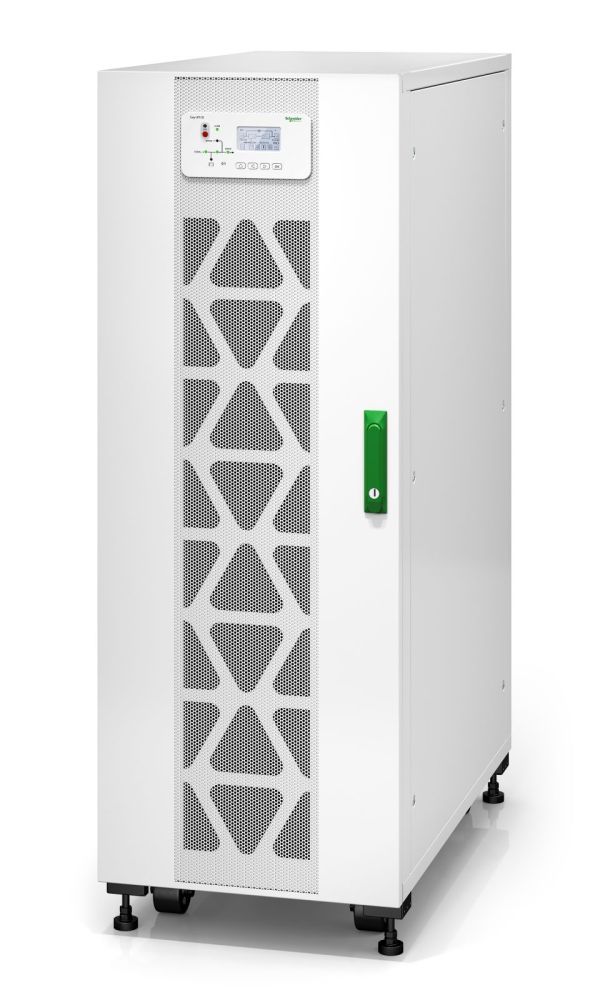

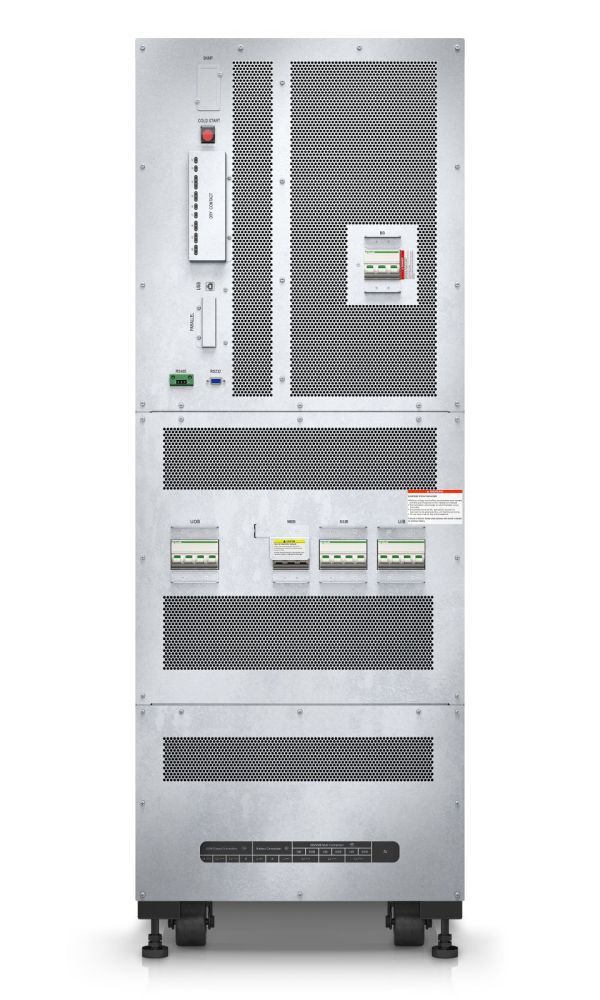

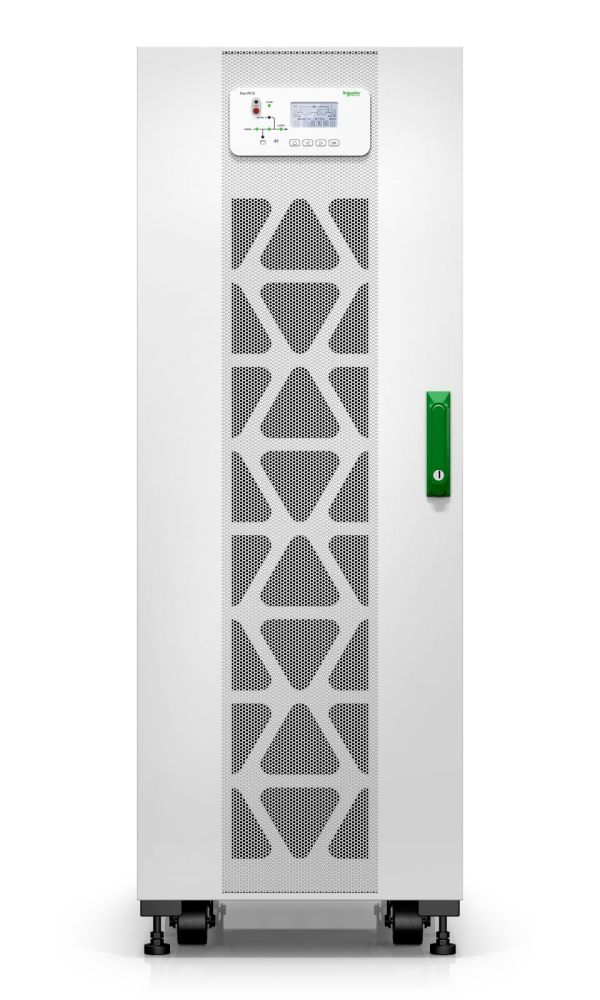

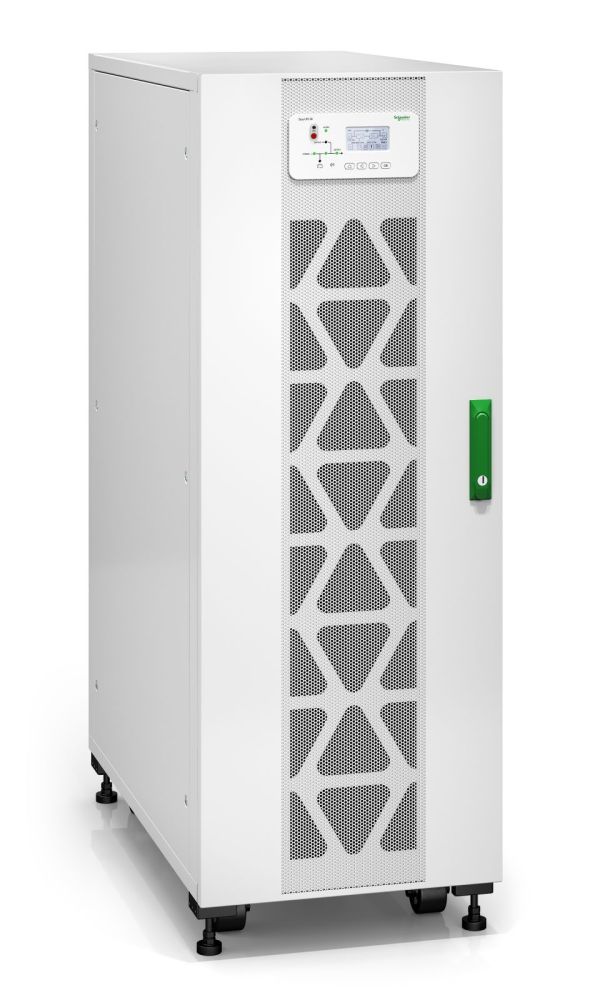

APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white
|
12.728,10 EUR 13.264,02 EUR |
|||||||||||
|
( 15.146,44 EUR incl. VAT ) ≈ £10,742.52 | ≈ $14,255.47 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014408 | ||||||||||
| Mfg Part No: | E3SUPS30KHB | ||||||||||
| UPC/EAN: | 0731304340812 | ||||||||||
| Weight: | 198 kg | ||||||||||
| Type: | E3SUPS30KHB | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS30KHB:

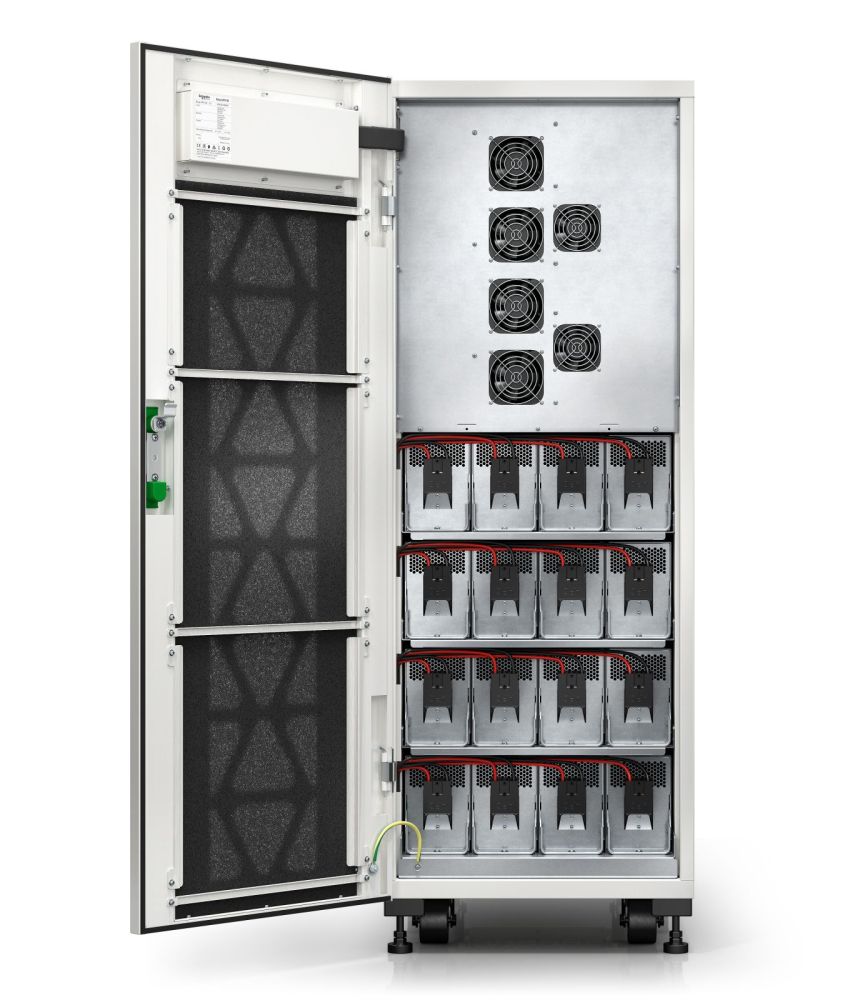

| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Battery weight | 190 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Product colour | White |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| ECO mode | |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Management card included | |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 969 mm |
| Height | 1400 mm |
| Weight | 152 kg |
| Battery width | 68.3 cm |
| Battery depth | 111.4 cm |
| Battery height | 164 cm |
Questions & answers
What is the delivery time of APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white?
The article APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS30KHB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white always at the best possible price. We can give you a discount of 2% on APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS30KHB Easy UPS 3S UPS AC 380/400/415 V 30 kW 30000 VA 3-phase white we can offer you a price of 11.964,41 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
