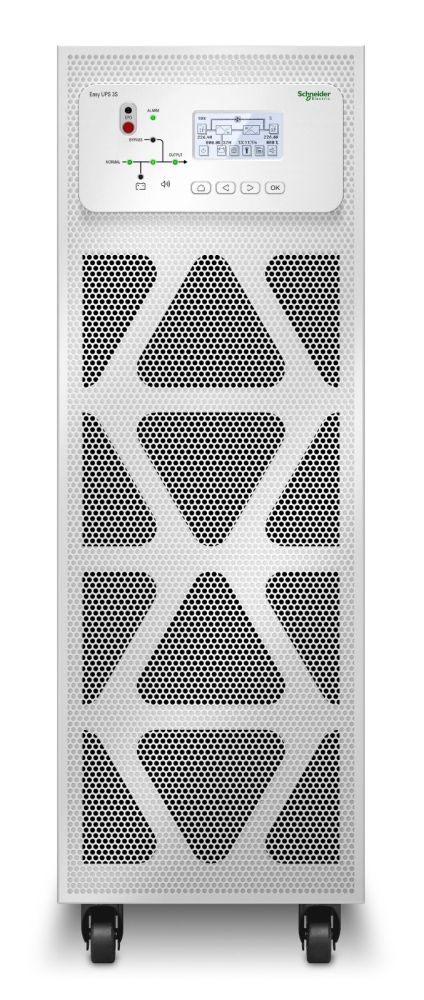

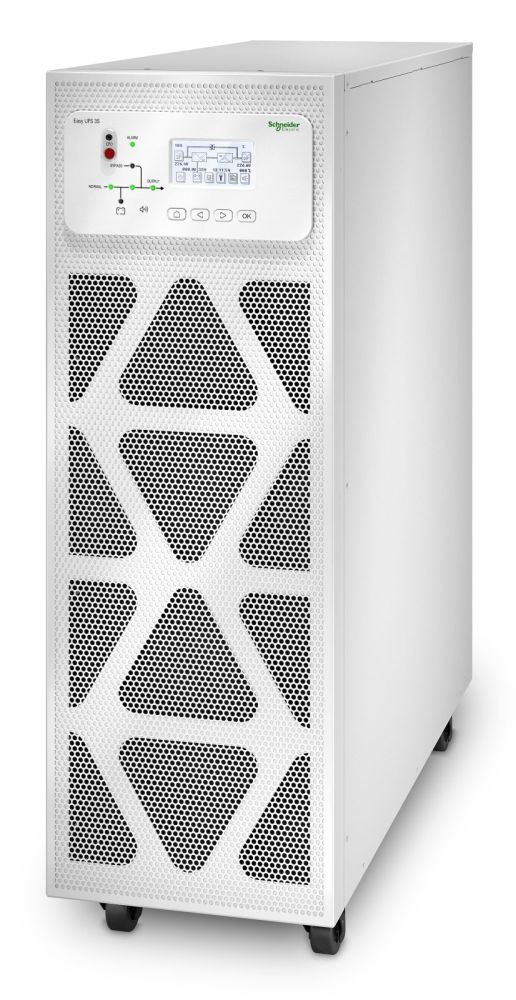

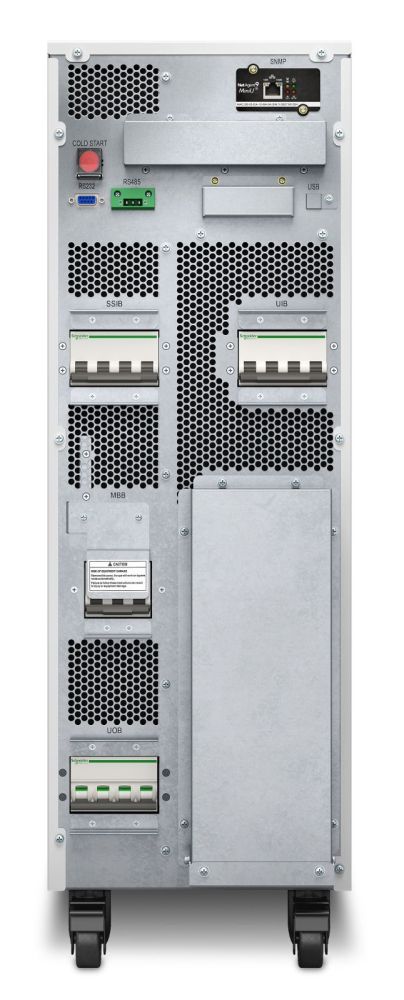

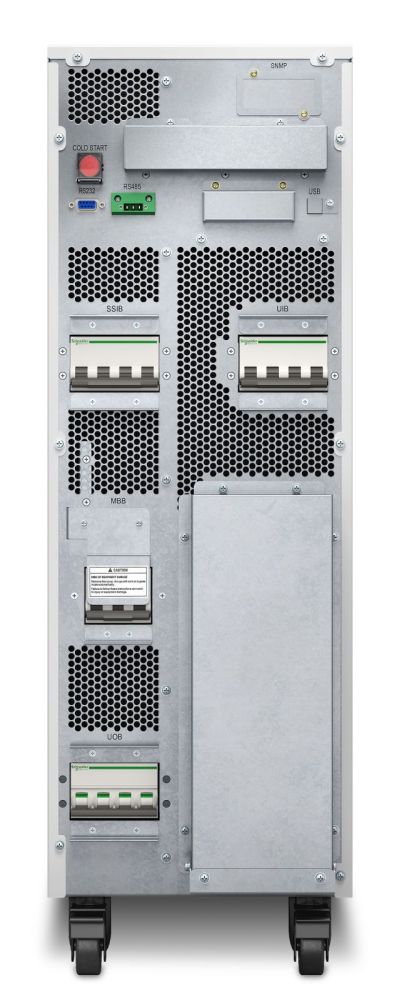

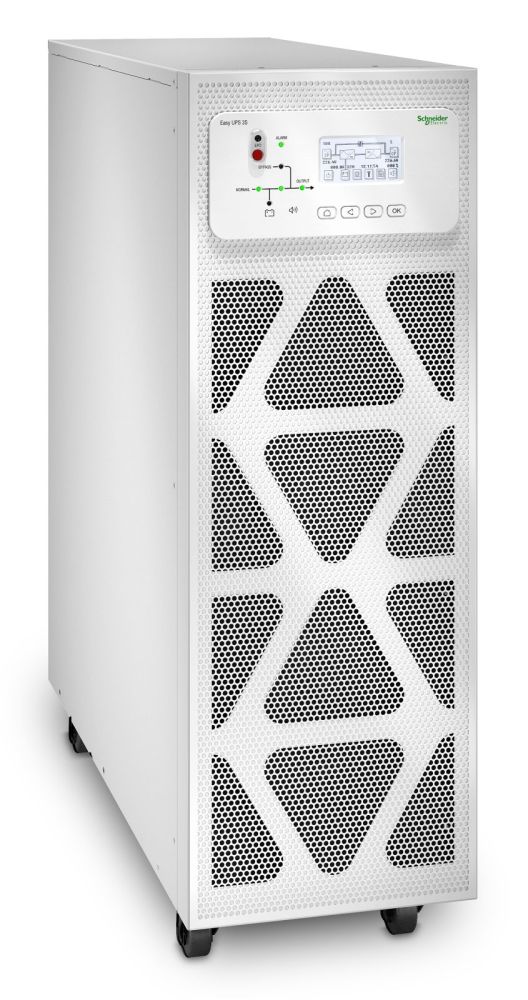

APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003
|
11.953,85 EUR 12.457,17 EUR |
|||||||||||
|
( 14.225,08 EUR incl. VAT ) ≈ £10,089.05 | ≈ $13,388.31 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2014234 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | E3SUPS30KH | ||||||||||
| UPC/EAN: | 0731304339564 | ||||||||||
| Weight: | 77 kg | ||||||||||
| Type: | E3SUPS30KH | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS30KH:
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.4 m |
| Non-operating altitude | 0 - 14763.6 m |
| Other features | |
| Output voltage | 400 V |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 982 mm |
| Package height | 1015 mm |
| Package weight | 77 kg |
| Ports & interfaces | |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 800 mm |
| Height | 770 mm |
| Weight | 60 kg |
Questions & answers
What is the delivery time of APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003?
The article APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS30KH to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003 always at the best possible price. We can give you a discount of 2% on APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS30KH Easy UPS 3S 30kVA 400V 3 3 UPS AC 380/400/415V 30 kW 30000VA no battery RS-232 RS-485 USB white RAL 9003 we can offer you a price of 11.236,62 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
