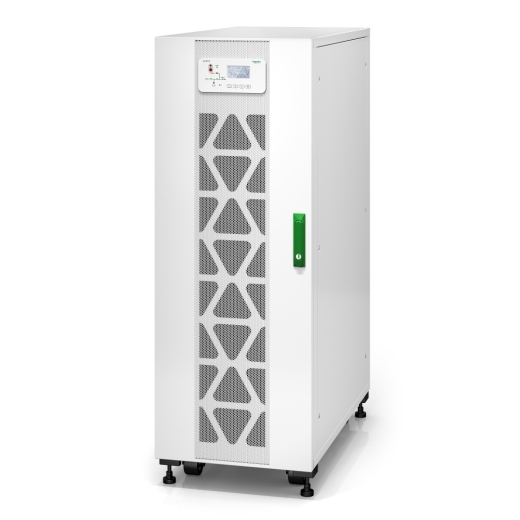

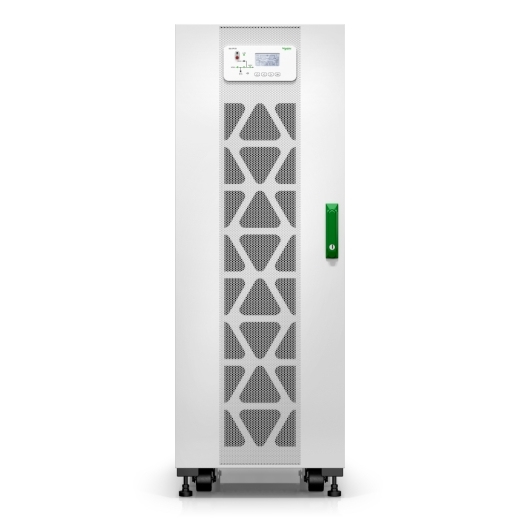

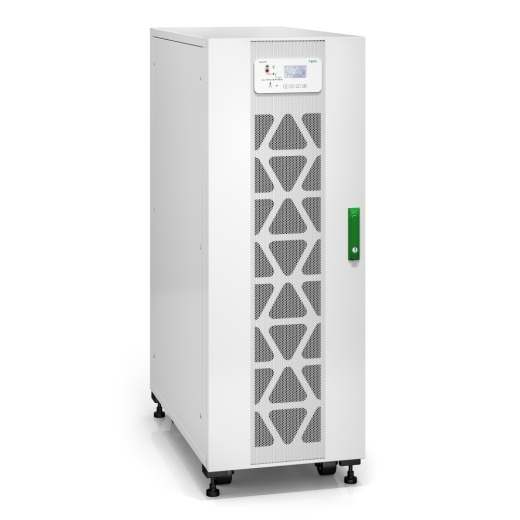

APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4
|
16.813,10 EUR 17.521,02 EUR |
|||||||||||
|
( 20.007,59 EUR incl. VAT ) ≈ £14,190.26 | ≈ $18,830.67 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014232 | ||||||||||
| Mfg Part No: | E3SUPS30K3IB1 | ||||||||||
| UPC/EAN: | 0731304428251 | ||||||||||
| Weight: | 213 kg | ||||||||||
| Type: | E3SUPS30K3IB1 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS30K3IB1:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Battery weight | 213 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | REACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 63 dB |
| Power protection features | Overload |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
| Quick installation guide | |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Weight | 212 kg |
| Battery width | 68.3 cm |
| Battery depth | 111.4 cm |
| Battery height | 164 cm |
Questions & answers
What is the delivery time of APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4?
The article APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS30K3IB1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4 always at the best possible price. We can give you a discount of 2% on APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS30K3IB1 Easy UPS 3S 30kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 4 we can offer you a price of 15.804,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
