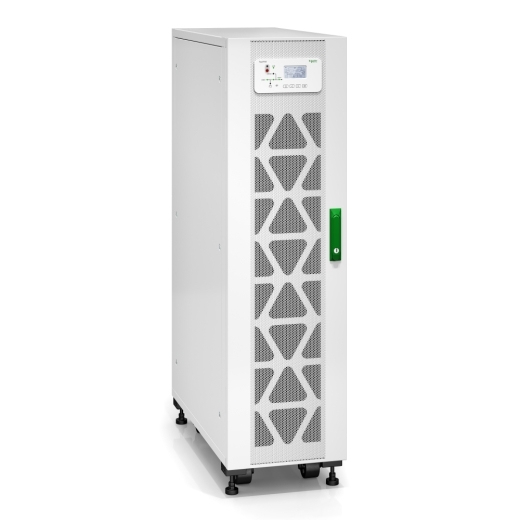

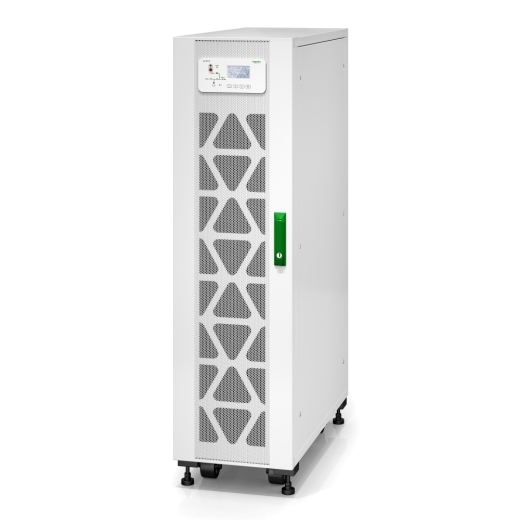

APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3
|
14.864,65 EUR |
|||||||||||
|
( 17.688,93 EUR incl. VAT ) ≈ £12,545.76 | ≈ $16,648.41 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2014230 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | E3SUPS20K3IB1 | ||||||||||
| UPC/EAN: | 0731304428213 | ||||||||||
| Weight: | 186 kg | ||||||||||
| Type: | E3SUPS20K3IB1 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for APC E3SUPS20K3IB1:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 15 min |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| ECO mode | |
| Emergency Power Off (EPO) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 186 kg |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 177 kg |
Questions & answers
What is the delivery time of APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3?
The article APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS20K3IB1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3 always at the best possible price. We can give you a discount of 2% on APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC E3SUPS20K3IB1 Easy UPS 3S 20kVA 400V 3:1 UPS 2 internal 7Ah modular battery strings expandable to 3 we can offer you a price of 13.972,77 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
