APC USV E3SUPS10KHB1 Easy-USV 3S 10000VA/400V 3:3 USV
|
6.316,12 EUR |
|
|
( 7.516,18 EUR incl. VAT ) ≈ £5,286.59 | ≈ $7,067.74 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 249159 |
| Mfg Part No: | E3SUPS10KHB1 |
| Weight: | 0 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 220 V |
| Number of batteries supported | 3 |

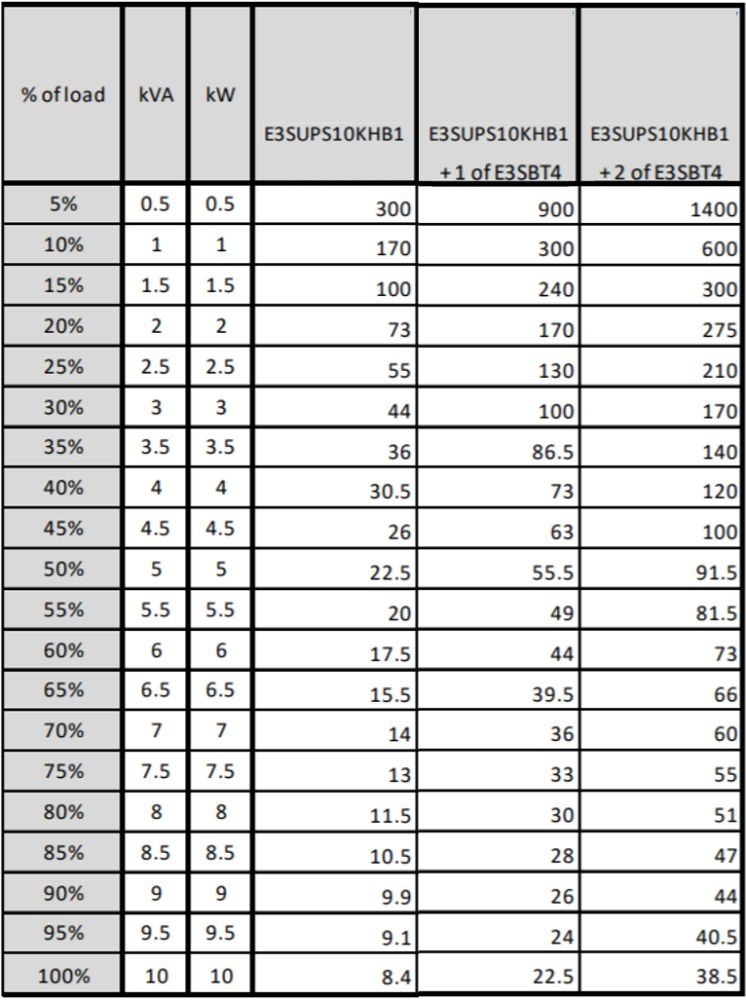

| Typical backup time at full load | 15 min |
| Certificates | |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency regulation | 50/60 Hz |
| Maximum current | 18 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 60 dB |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Output voltage | 400 V |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 145 kg |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 112 kg |
Questions & answers
What is the delivery time of APC USV E3SUPS10KHB1 Easy-USV 3S 10000VA/400V 3:3 USV?
The article APC USV E3SUPS10KHB1 Easy-USV 3S 10000VA/400V 3:3 USV is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS10KHB1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC USV E3SUPS10KHB1 Easy-USV 3S 10000VA/400V 3:3 USV always at the best possible price. We can give you a discount of 2% on APC USV E3SUPS10KHB1 Easy-USV 3S 10000VA/400V 3:3 USV if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
