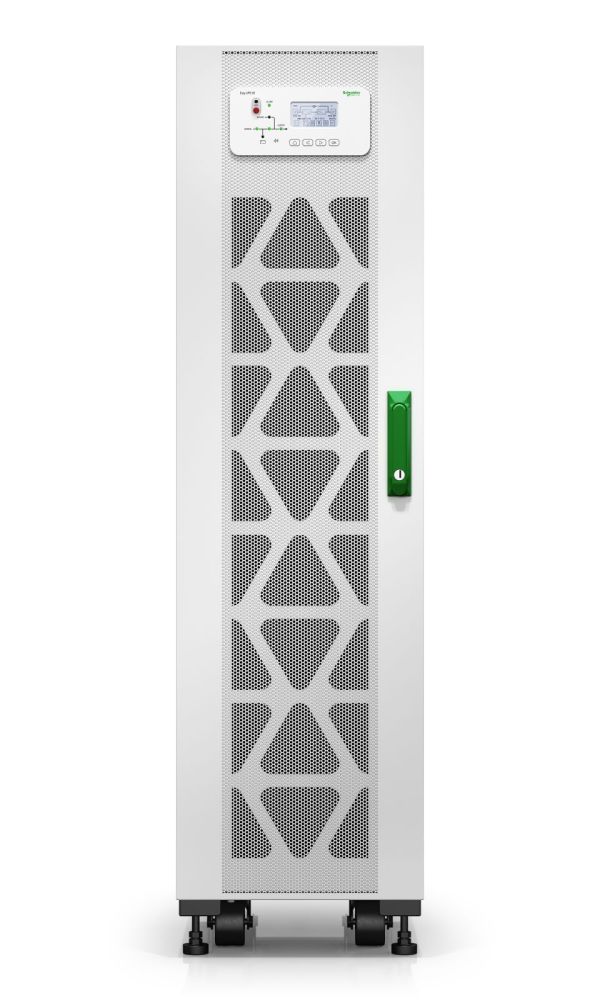

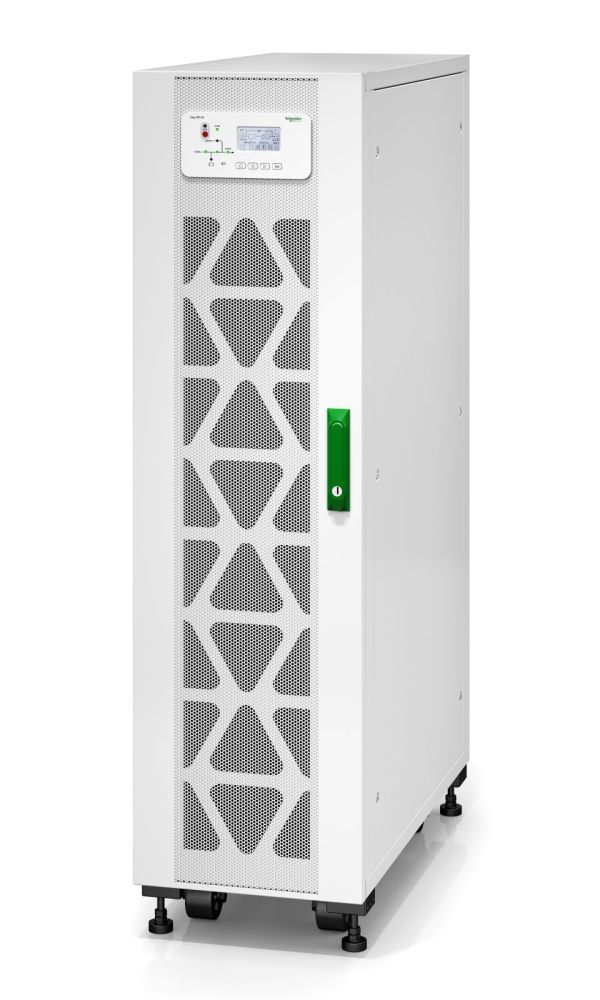

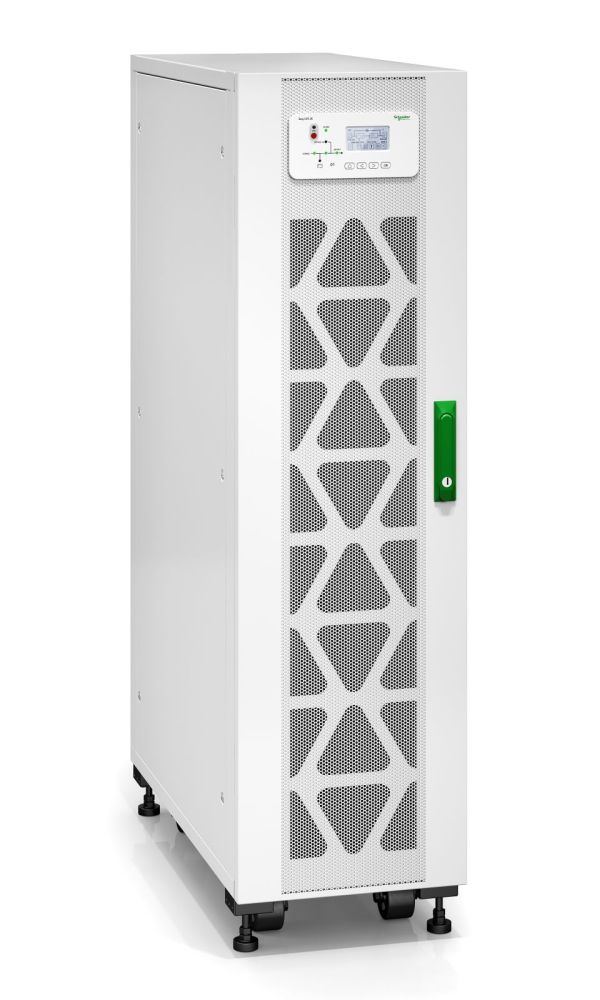

APC E3SUPS10KHB Easy UPS 3S 1 UPS AC 380/400/415 V 10 kW 10000 VA 3-phase 10 min white
|
8.981,30 EUR 9.359,46 EUR |
|
|
( 10.687,75 EUR incl. VAT ) ≈ £7,580.22 | ≈ $10,059.06 plus delivery charges |
|
| Made to order · Expected to be available from 28.10.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2014120 |
| Mfg Part No: | E3SUPS10KHB |
| UPC/EAN: | 0731304340737 |
| Weight: | 248.7 kg |
| Type: | E3SUPS10KHB |
Product information for APC E3SUPS10KHB:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Certificates | |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 477 V |
| Output frequency | 50/60 Hz |
| Maximum current | 18 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 94.8% |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 60 dB |
| ECO mode | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
| Packaging content | |
| Management card included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 145 kg |
| Ports & interfaces | |
| Parallel ports quantity | 1 |
| SmartSlot | |
| SmartConnect port | |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 112 kg |
Questions & answers
What is the delivery time of APC E3SUPS10KHB Easy UPS 3S 1 UPS AC 380/400/415 V 10 kW 10000 VA 3-phase 10 min white?
The article APC E3SUPS10KHB Easy UPS 3S 1 UPS AC 380/400/415 V 10 kW 10000 VA 3-phase 10 min white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3SUPS10KHB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3SUPS10KHB Easy UPS 3S 1 UPS AC 380/400/415 V 10 kW 10000 VA 3-phase 10 min white always at the best possible price. We can give you a discount of 2% on APC E3SUPS10KHB Easy UPS 3S 1 UPS AC 380/400/415 V 10 kW 10000 VA 3-phase 10 min white if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
