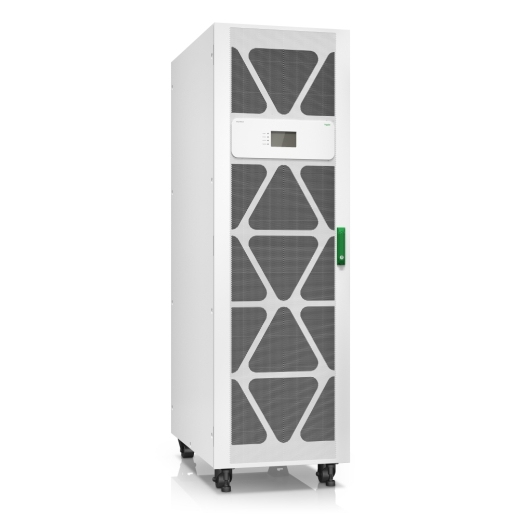

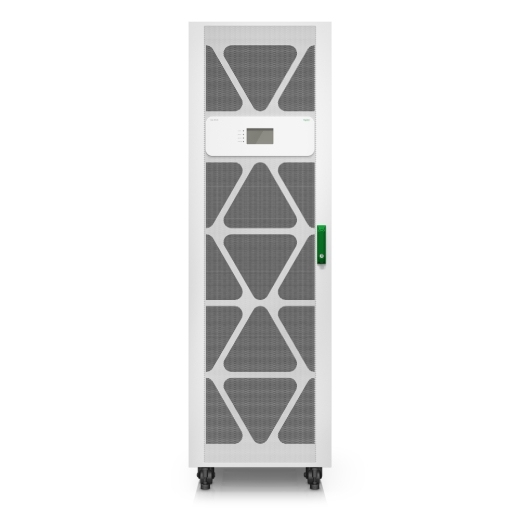

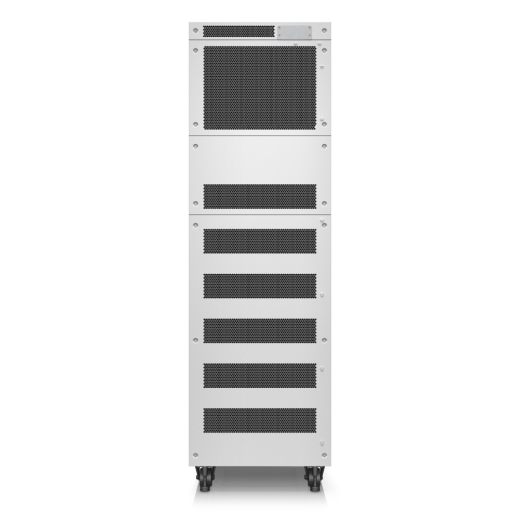

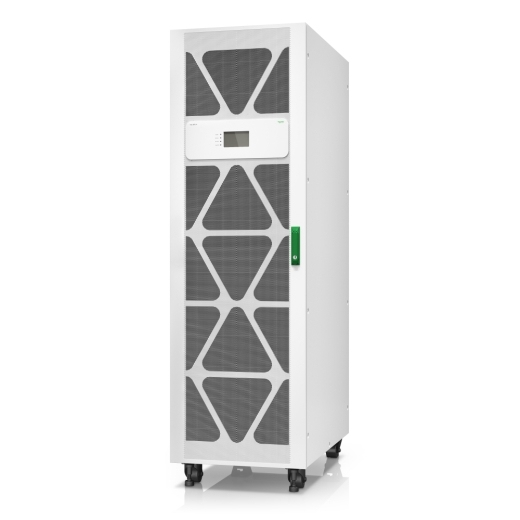

APC Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries Start-up 5x8
|
13.965,00 EUR |
|
|
( 16.618,35 EUR incl. VAT ) ≈ £11,688.71 | ≈ $15,626.84 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1533755 |
| Mfg Part No: | E3MUPS80KHBS |
| UPC/EAN: | 0731304363293 |
| Weight: | 387 kg |
| Type: | ACCS |
Product information for APC E3MUPS80KHBS:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 146 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.99 |
| Surge protection | |
| Audible alarm(s) | |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 450 m |
| Non-operating altitude | 0 - 4500 m |
| Packaging content | |
| Quick installation guide | |
| Packaging data | |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Package weight | 387 kg |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 1970 mm |
| Weight | 339 kg |
Questions & answers
What is the delivery time of APC Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries Start-up 5x8?
The article APC Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3MUPS80KHBS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
