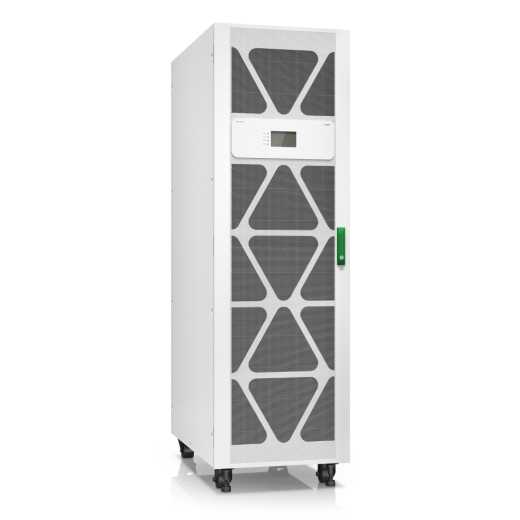

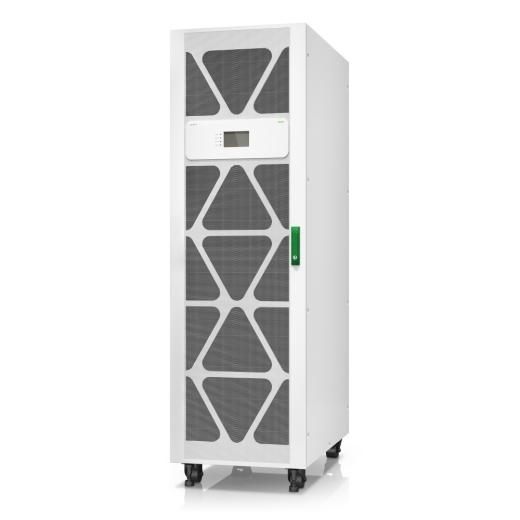

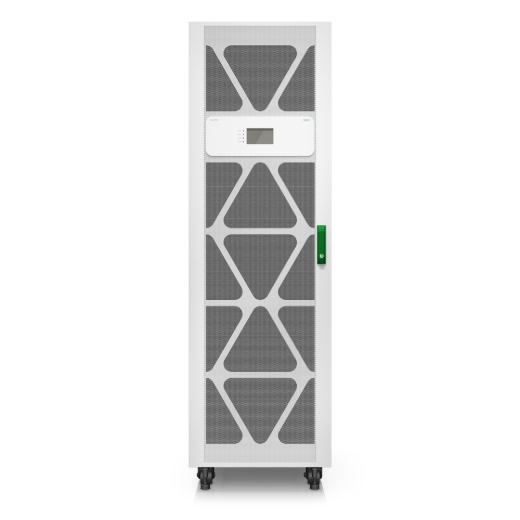

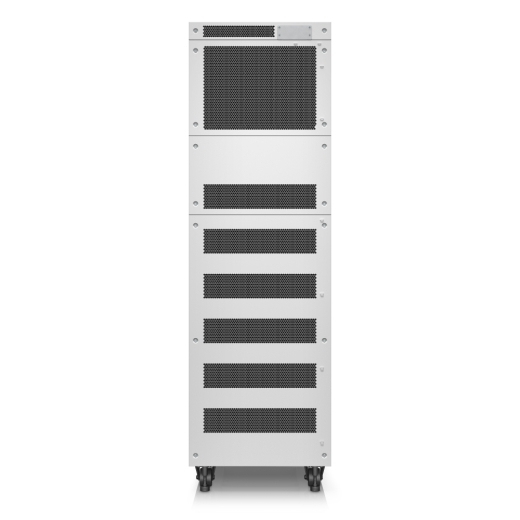

APC Easy UPS 3M 80kVA 400V 3:3 UPS 6 internal 9Ah modular battery strings Start-up 5x8
|
21.375,00 EUR |
|
|
( 25.436,25 EUR incl. VAT ) ≈ £17,890.88 | ≈ $23,918.63 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1533753 |
| Mfg Part No: | E3MUPS80KHB2S |
| UPC/EAN: | 0731304647874 |
| Weight: | 387 kg |
| Type: | ACCS |
Product information for APC E3MUPS80KHB2S:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.99 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Package weight | 387 kg |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 50038 mm |
| Weight | 339 kg |
Questions & answers
What is the delivery time of APC Easy UPS 3M 80kVA 400V 3:3 UPS 6 internal 9Ah modular battery strings Start-up 5x8?
The article APC Easy UPS 3M 80kVA 400V 3:3 UPS 6 internal 9Ah modular battery strings Start-up 5x8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3MUPS80KHB2S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC Easy UPS 3M 80kVA 400V 3:3 UPS 6 internal 9Ah modular battery strings Start-up 5x8 always at the best possible price. We can give you a discount of 2% on APC Easy UPS 3M 80kVA 400V 3:3 UPS 6 internal 9Ah modular battery strings Start-up 5x8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
