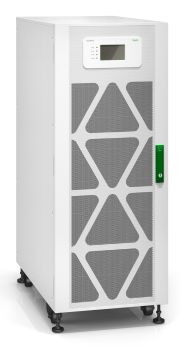

APC E3MUPS160KHS Easy UPS 3M UPS AC 380/400/415 V 160000 W 160000 VA 3-phase without battery RAL 9003 with Start-Up Service 5X8
|
19.570,00 EUR |
|
|
( 23.288,30 EUR incl. VAT ) ≈ £16,380.09 | ≈ $21,898.83 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 2213488 |
|---|---|
| Mfg Part No: | E3MUPS160KHS |
| UPC/EAN: | 0731304363231 |
| Weight: | 257 kg |
| Type: | ACCS |
Product information for APC E3MUPS160KHS:
| Certificates | |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 160 kVA |
| Output power | 160000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 262 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 72 dB |
| ECO mode | |
| Audible alarm(s) | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1476.3 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 850 mm |
| Height | 1300 mm |
| Weight | 227 kg |
Questions & answers
What is the delivery time of APC E3MUPS160KHS Easy UPS 3M UPS AC 380/400/415 V 160000 W 160000 VA 3-phase without battery RAL 9003 with Start-Up Service 5X8?
The article APC E3MUPS160KHS Easy UPS 3M UPS AC 380/400/415 V 160000 W 160000 VA 3-phase without battery RAL 9003 with Start-Up Service 5X8 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC E3MUPS160KHS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC E3MUPS160KHS Easy UPS 3M UPS AC 380/400/415 V 160000 W 160000 VA 3-phase without battery RAL 9003 with Start-Up Service 5X8 always at the best possible price. We can give you a discount of 2% on APC E3MUPS160KHS Easy UPS 3M UPS AC 380/400/415 V 160000 W 160000 VA 3-phase without battery RAL 9003 with Start-Up Service 5X8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
