APC BX750MI-GR UPS BACKUPS 750 VA 230 V AVR 4 Schuko outlets content_copy

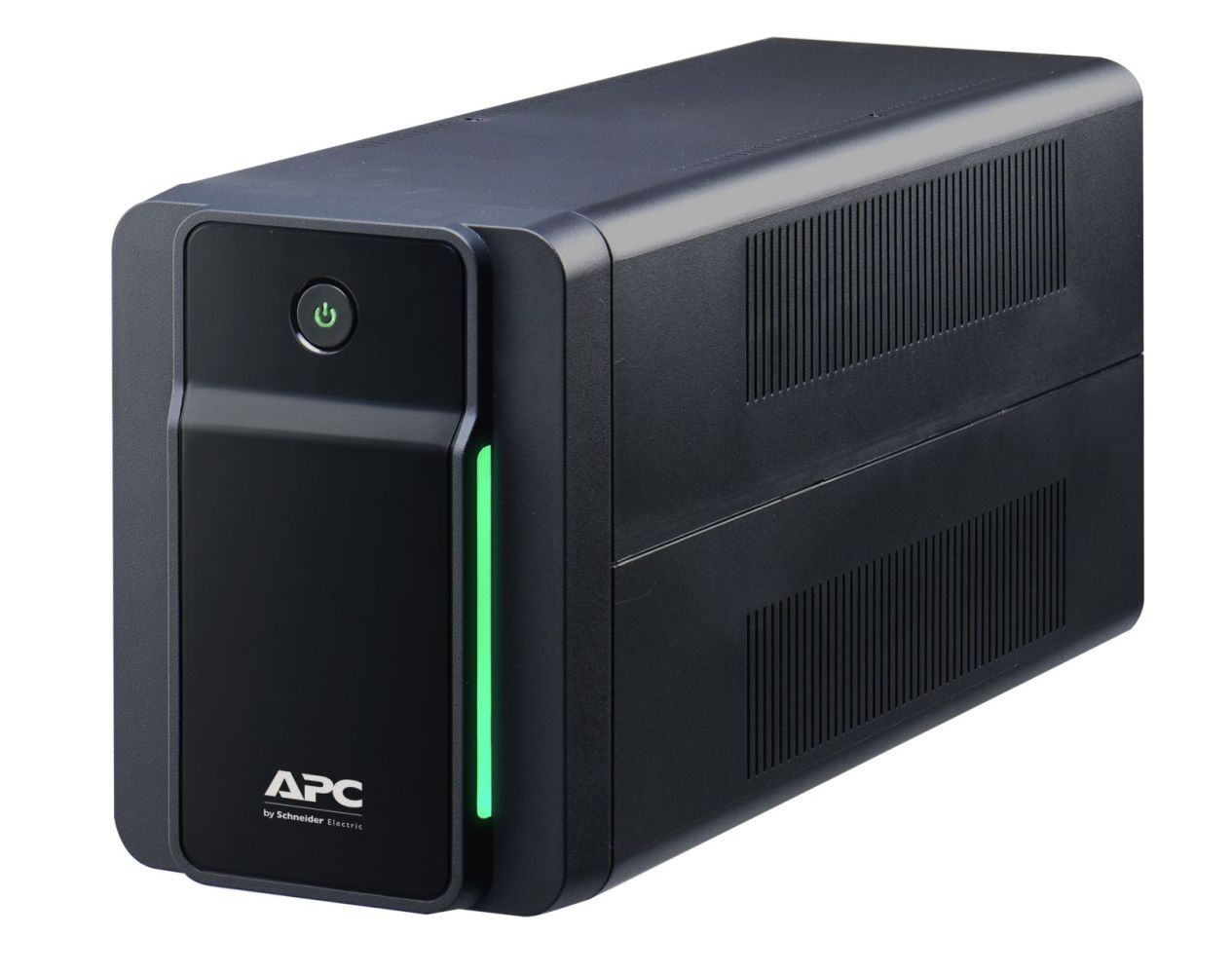

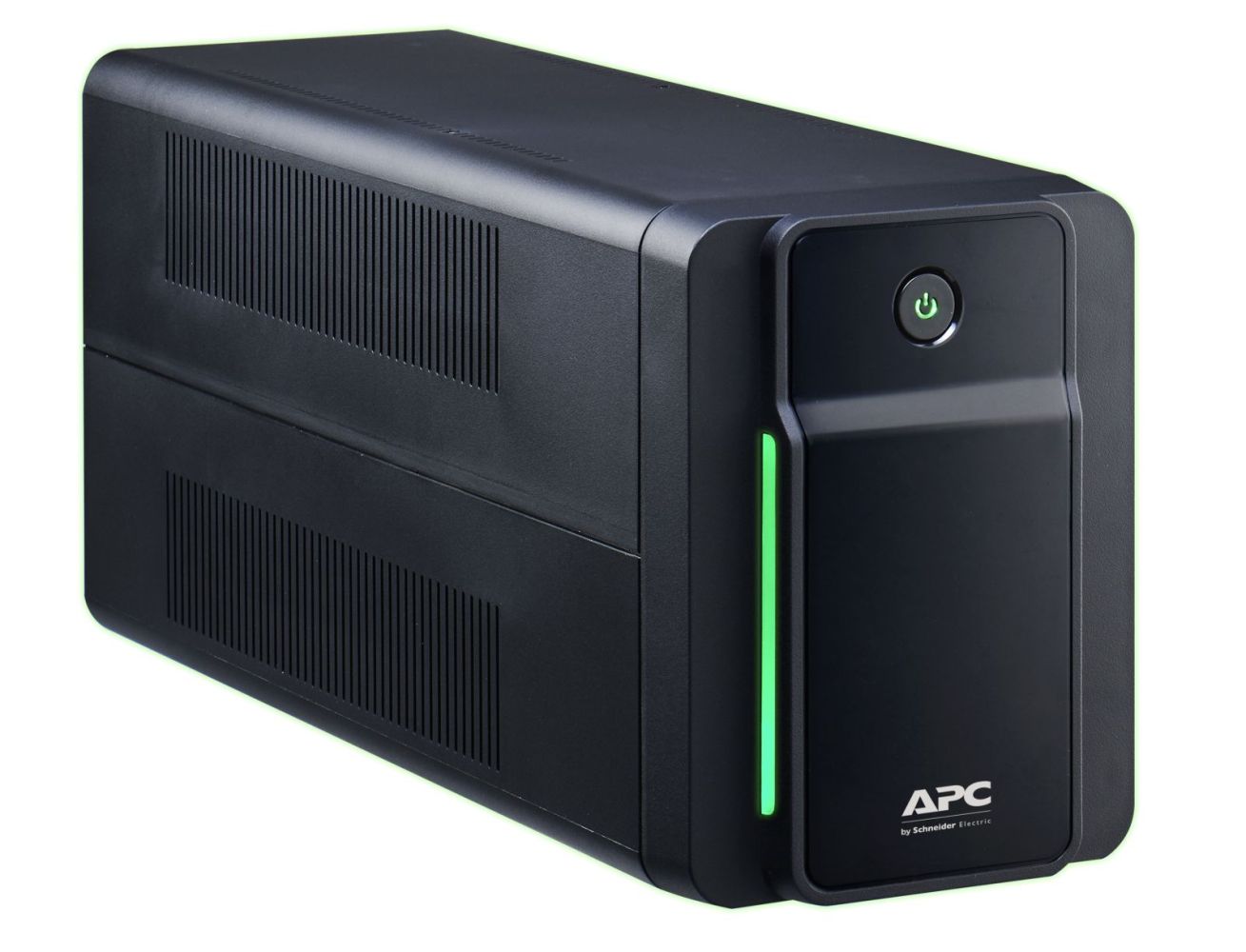

The APC Back-UPS BX750MI-GR is an uninterruptible power supply (UPS) of the BX series, designed for use in home offices, living rooms, and small work environments. The device offers an output capacity of 0.75 kVA and an output power of 410 W, with a stable output voltage of 230 V. The UPS operates using the Line-Interactive topology, which enables efficient voltage regulation without stressing the battery. The output alternating current is a Sine wave, suitable for powering sensitive electronics. The input voltage can range between 140 V and 300 V, providing high tolerance against voltage fluctuations in the power grid. The input frequency is 50/60 Hz, and the output frequency is regulated to ±0.5 Hz to ensure stable power supply.

Applications

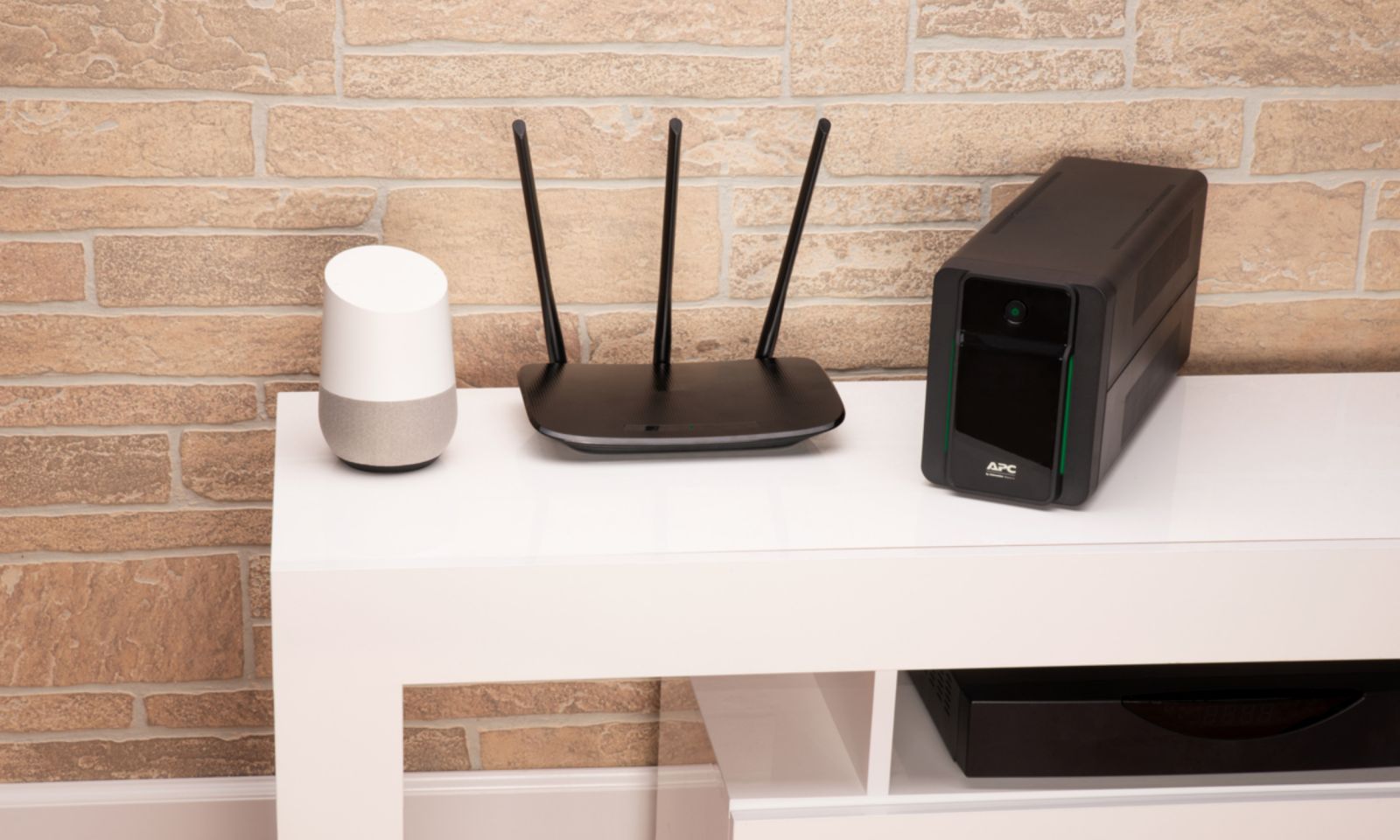

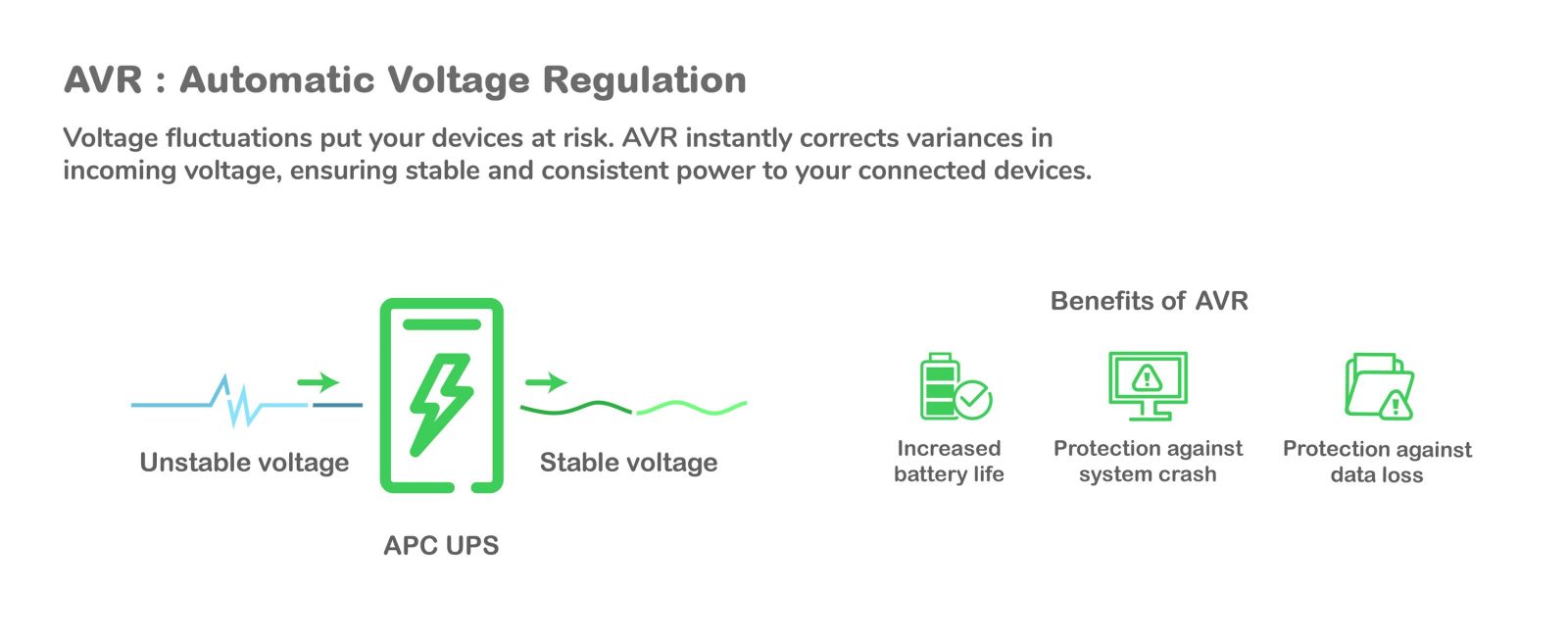

The APC Back-UPS BX750MI-GR is suitable for powering home networks, PCs, monitors, network-attached storage (NAS), modems, routers, smart storage, home cinema systems, televisions, music speakers, and surveillance cameras. The integrated Automatic Voltage Regulation (AVR) corrects voltage fluctuations in the power grid without activating the battery, thereby extending battery life. In the event of a power outage, the internal battery takes over power supply to prevent data loss and device damage.

Functions and Equipment in Detail

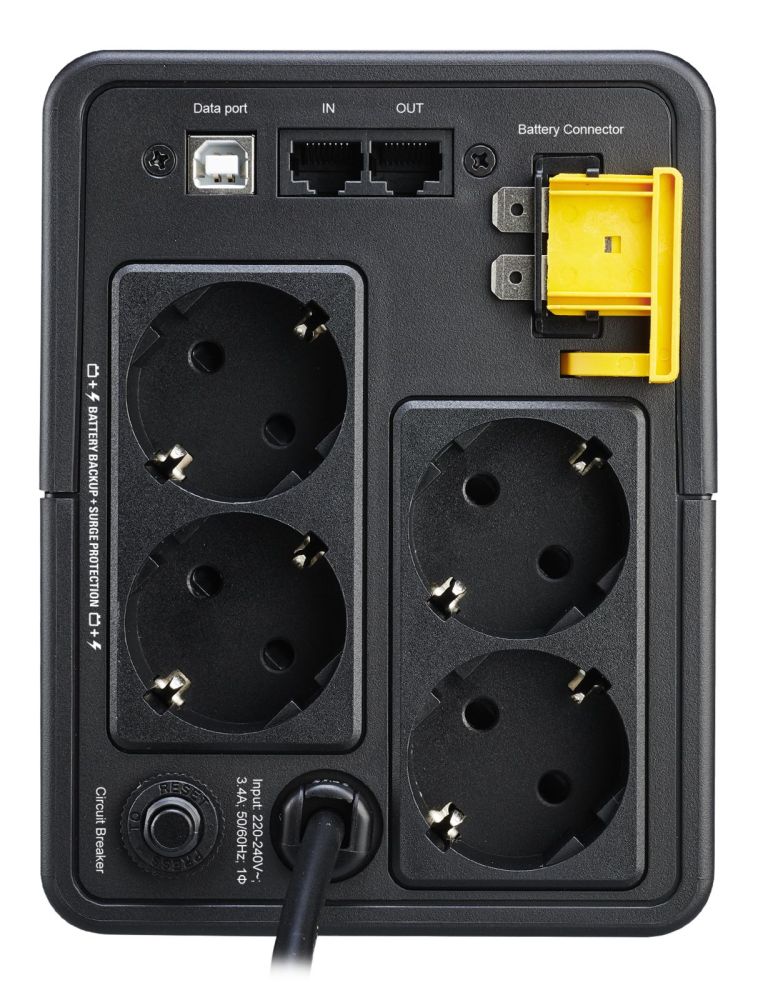

The device features 4 AC outlets with Schuko sockets, which are both battery- and surge-protected. The outlets are equipped with Type F plugs, enabling use in Germany and other countries with compatible sockets. The USB interface (Type B) allows connection to a PC to use the PowerChute Personal Edition software, which enables automatic system shutdown when battery level is critically low. Additionally, 2 Ethernet LAN ports (RJ-45) are integrated, providing 1-GB network surge protection to safeguard data lines and connected devices from backdoor voltage spikes without affecting internet speed.

Technology Explained Simply

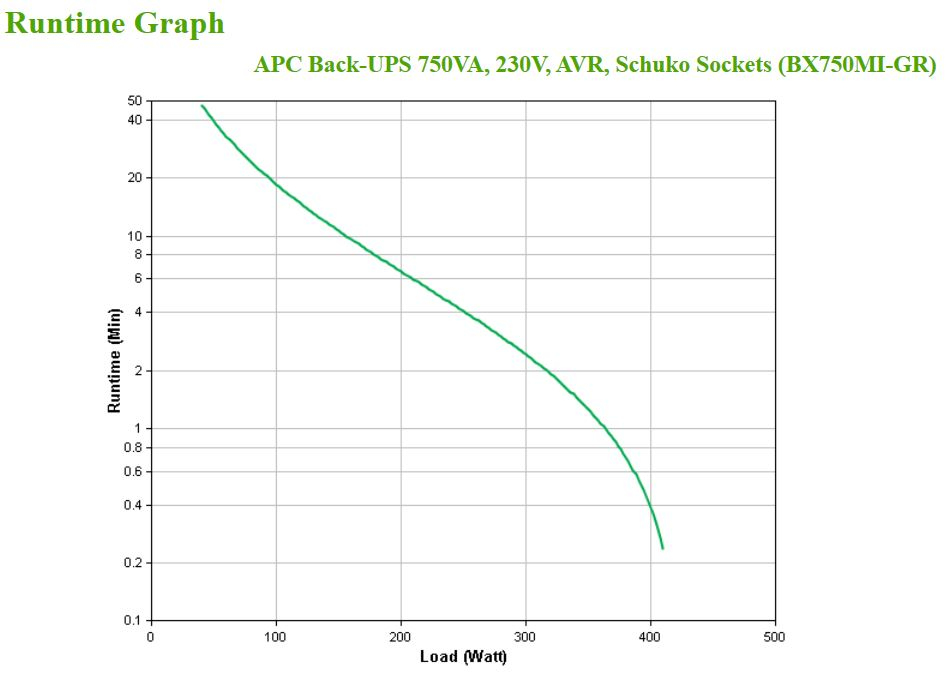

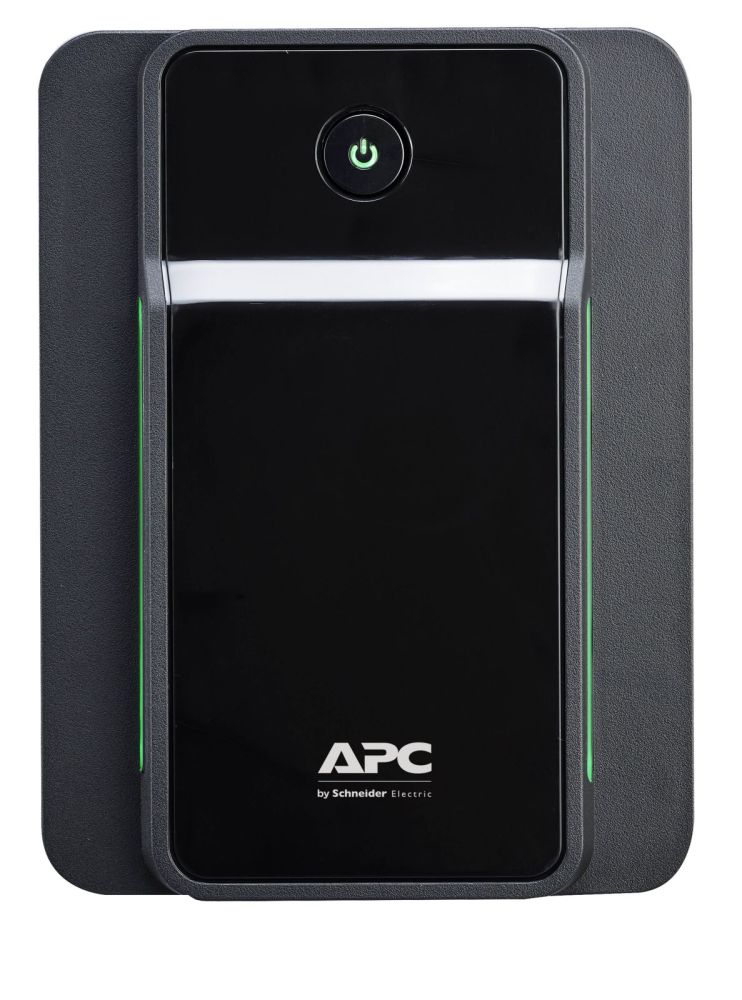

The Line-Interactive technology combines intelligent voltage regulation with battery backup functionality. Under normal mains voltage, the load is supplied directly from the power grid, while the AVR circuit corrects voltage fluctuations. In the event of a power failure, the UPS switches to battery operation within 6 ms, ensuring uninterrupted operation of connected devices. The sealed lead-acid (VRLA) battery provides a typical backup time of 1 minute at full load and 8.5 minutes at half load. Battery recharge time is 6 hours. The LED indicators on the front panel visually signal the operating status, and audible alarms warn of low battery charge.

Compatibility and Accessories

The UPS comes with an input cable (length 1.2 m) to connect to the power grid. Using PowerChute software enables intelligent control of connected devices. The battery (type RBC17) is replaceable, extending the device's lifespan. The UPS is designed for indoor use and complies with IP20 protection rating, providing protection against solid foreign objects and splashing water from above. The operating temperature ranges from 0 °C to 40 °C, and the relative humidity during operation is 0–95 %. The device is suitable for operation at altitudes up to 3000 m above sea level.

Installation and Mounting

Installation involves connecting the input cable to a socket and plugging devices into the 4 AC outlets. The USB connection to the PC enables use of the PowerChute software. The UPS is compact (160 mm height, 120 mm width, 355 mm depth) and can be placed on a desk or shelf. The noise emission is 40 dB, suitable for quiet operation in living and workspaces.

Operational Advantages

The combination of surge protection, automatic voltage regulation, and backup power supply provides comprehensive protection for sensitive electronics. The integrated network surge protection function also protects data lines. The PowerChute software enables safe shutdown of computers, preventing data loss. The 2-year warranty and the option for battery replacement increase the cost-effectiveness of the device. Certifications according to CB Meet EN62040-1, CE, IEC-62040-1, and IEC-62040-2, as well as RoHS compliance, guarantee the safety and environmental compatibility of the product.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	1 min
Typical backup time at half load	8.5 min
Battery life (max)	2 year(s)
Battery recharge time	6 h
Certificates
Compliance certificates	RoHS
Certification	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Design
Form factor	Compact
Cable length	1.2 m
Product colour	Black
International Protection (IP) code	IP20
LED indicators
Features
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Output power	410 W
Waveform	Sine
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Output frequency regulation	0.5 Hz
Output voltage regulation	10%
Surge energy rating	273 J
Response time	6 ms
Input power factor	0.63
Noise level	40 dB
Audible alarm modes	Low battery alarm
Automatic Voltage Regulation (AVR)
Surge protection
Audible alarm(s)
Logistics data
Harmonized System (HS) code	85078000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Packaging content
Cables included	Input power cable
Management card included
Manual
Packaging data
Package width	197 mm
Package depth	430 mm
Package height	250 mm
Package weight	5.9 kg
Ports & interfaces
AC outlet types	Type F
Power plug	Type F
AC outlets quantity	4 AC outlet(s)
USB 2.0 ports quantity	1
USB port type	USB Type-B
Ethernet LAN (RJ-45) ports	2
USB port
SmartSlot
SmartConnect port
Weight & dimensions
Width	120 mm
Depth	355 mm
Height	160 mm
Weight	5.4 kg

---
