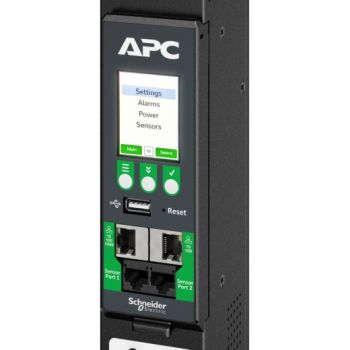

APC NetShelter Rack PDU Advanced Switched Metered Outlet 5.0kW 1PH 208V 30A L6-30P 40 Outlet
|
3.693,00 EUR |
|
|
( 4.394,67 EUR incl. VAT ) ≈ £3,091.04 | ≈ $4,132.47 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1264640 |
| Mfg Part No: | APDU10151SM |
| UPC/EAN: | 0731304439783 |
| Weight: | 9 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Design | |
| PDU types | Metered, Switched |
| Type | Single-phase |
| Form factor | Rackmount |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| Regulatory Approvals | CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1 |
| On/off switch | |
| Features | |
| LED indicators | Activity, Network, Power |
| Cable length | 3 m |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3 |
| Compatible products | Compatible with most NetShelter SX enclosures and third-party racks |
| Daisy chain | |
| Reset button | |
| Colour-coded outlets | |
| Password protection | |
| Management features | |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging data | |
| Package weight | 9.8 kg |
| Package width | 208 mm |
| Package depth | 116 mm |
| Package height | 1720 mm |
| Ports & interfaces | |
| AC outlets quantity | 40 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Load capacity | 4992 VA |
| Number of phases | 1 |
| Maximum total current draw per phase | 24 A |
| Power protection features | Overload |
| Maximum power | 5000 W |
| Surge protection | |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1490 mm |
| Weight | 7.8 kg |
Questions & answers
What is the delivery time of APC NetShelter Rack PDU Advanced Switched Metered Outlet 5.0kW 1PH 208V 30A L6-30P 40 Outlet?
The article APC NetShelter Rack PDU Advanced Switched Metered Outlet 5.0kW 1PH 208V 30A L6-30P 40 Outlet is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC APDU10151SM to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you APC NetShelter Rack PDU Advanced Switched Metered Outlet 5.0kW 1PH 208V 30A L6-30P 40 Outlet always at the best possible price. We can give you a discount of 2% on APC NetShelter Rack PDU Advanced Switched Metered Outlet 5.0kW 1PH 208V 30A L6-30P 40 Outlet if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
