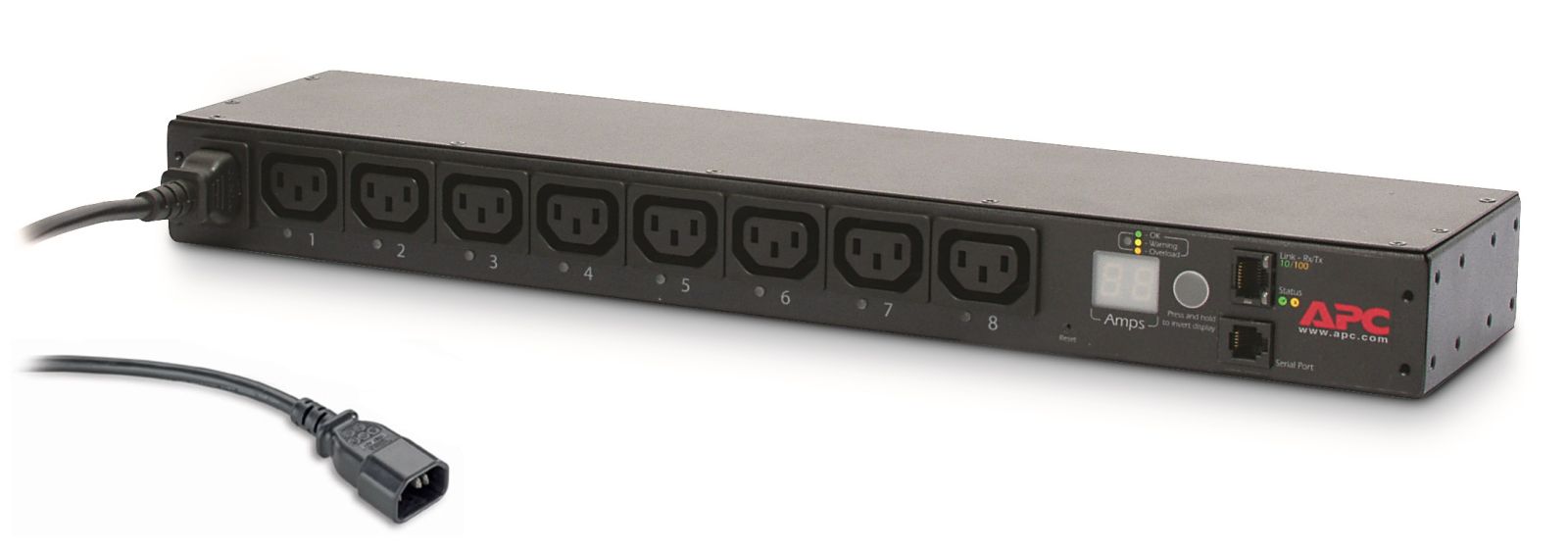

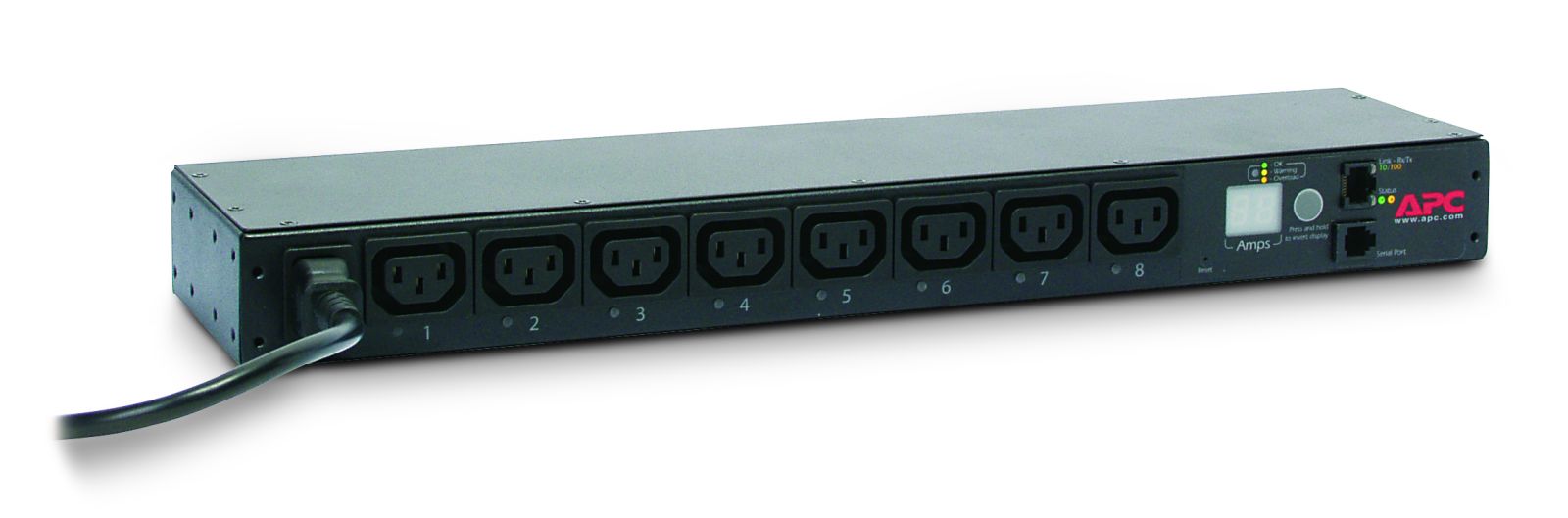

APC AP7920B RACK PDU, SWITCHED, 1 U, 12A/208V, 10A/230V, (8) C13

Your rating:
Average rating
product review for APC AP7920B RACK PDU, SWITCHED, 1 U, 12A/208V, 10A/230V, (8) C13
( 5 / 5 ) 1 ratings
APC AP7920B
This image may differ from the desired article.
APC AP7920BAPC AP7920B
1.632,10 EUR
( 1.942,20 EUR incl. VAT )
≈ £1,359.54  |  ≈ $1,790.41
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x APC AP7920B RACK PDU, SWITCHED, 1 U, 12A/208V, 10A/230V, (8) C13
Datasheet:file_download Download
Lieske Part No.:2014509
Mfg Part No: AP7920B
UPC/EAN: 0731304331612
Weight:3.48 kg
Type:AP7920B
Graduated prices net
From piecesPrice per pieces
21.521,93 EUR
41.411,77 EUR
61.301,60 EUR
81.191,43 EUR

Product information for APC AP7920B:

The APC Switched Rack PDU with manufacturer number AP7920B is a power distribution unit for use in server and network racks. It enables organized and monitorable distribution of electrical power to multiple devices and allows remote control of individual outlets. The unit is black and designed for mounting in 19-inch racks, featuring a rack capacity of 0U/1U. Mounting can be done both horizontally and vertically, enabling flexible integration into existing infrastructures.

Applications
This PDU is designed for use in IT infrastructures such as data centers, server rooms, or network and telecommunication installations. It is suitable for powering network devices, servers, storage systems, and other electronic components connected via standard C13 outlets. The integrated power monitoring and remote control support efficiency improvements and centralized management of IT systems.

Functions and Features in Detail
The APC AP7920B features eight AC outlets with C13 connectors, ensuring compatibility with standard IT equipment. The input is via an IEC-320 C14 plug, connected to a mains power source. The cable length is 1.98 m, providing sufficient reach for most rack configurations. Power supply operates at a nominal input voltage of 200–230 V and a frequency of 50–60 Hz. Maximum current is 10 A, with a total power rating of 2300 VA or 2300 W. The outlets deliver a nominal voltage of 208–230 V.

Technology Explained Simply
The PDU is designed as a Switched model, meaning each individual outlet can be remotely turned on, off, powered down, or rebooted. This enables precise load control and allows remote management of individual devices, for example, for troubleshooting or reducing energy consumption. The integrated local power monitoring display shows current power draw and provides a visible warning in case of overload. The management functions include monitoring of current, power, and voltage, allowing continuous oversight of connected devices. A multi-level user access system restricts outlet usage to authorized users, enhancing security.

Compatibility and Accessories
The PDU is equipped with standardized C13 and C14 connectors, widely used in IT infrastructure. The use of IEC-320 connectors ensures compatibility with a wide range of network and server equipment. The unit is designed for use in racks with a height of 0U to 1U, enabling flexible installation in various rack systems.

Mounting and Installation
Mounting is done using the included rack mounting brackets, ensuring secure installation in a 19-inch rack. Installation is straightforward, as the PDU has only a single power input source. The delivery includes the unit itself, mounting brackets, and an installation manual. The manual supports correct mounting and configuration of the PDU.

Operational Advantages
Remote control of individual outlets enables precise load management and allows devices to be controlled without physical access. Power monitoring helps detect overloads early and prevents potential damage to connected devices. The multi-level user access control increases security and prevents unauthorized use. The PDU is designed for operating temperatures from 0 to 45 °C and relative humidity from 0 to 95 %, ensuring reliable performance in typical server environments. Storage is possible at temperatures from -25 to 65 °C and humidity from 0 to 95 %. Maximum operating altitude is 3000 m above sea level.

The PDU meets numerous international certifications, including cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, and REACH. It is also RoHS-compliant, excluding the use of hazardous substances in the device. Dimensions are 445 mm (width), 108 mm (depth), and 44 mm (height); weight is 2.27 kg. Packaging weighs 3.45 kg and measures 470 mm (width), 343 mm (depth), and 70 mm (height).

Certificates
Compliance certificatesRoHS
CertificationcUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Design
PDU typesMetered, Switched
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack
Features
Cable length1.98 m
Logistics data
Total carbon footprint (kg of CO2e)915.89
Management features
MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude1 - 15000 m
Packaging content
Packaging contentInstallation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package weight3.45 kg
Package width470 mm
Package depth343 mm
Package height70 mm
Ports & interfaces
AC outlets quantity8 AC outlet(s)
Power plugC14 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C14
Power
Nominal input voltage200-230 V
AC input frequency50 - 60 Hz
Maximum current10 A
Nominal output voltage208-230 V
Load capacity2300 VA
Maximum input current per phase10 A
Maximum total current draw per phase10 A
Maximum power2300 W
Weight & dimensions
Width445 mm
Depth108 mm
Height44 mm
Weight2.27 kg


Product data sheet
Datasheet for APC AP7920B, EAN: 0731304331612
