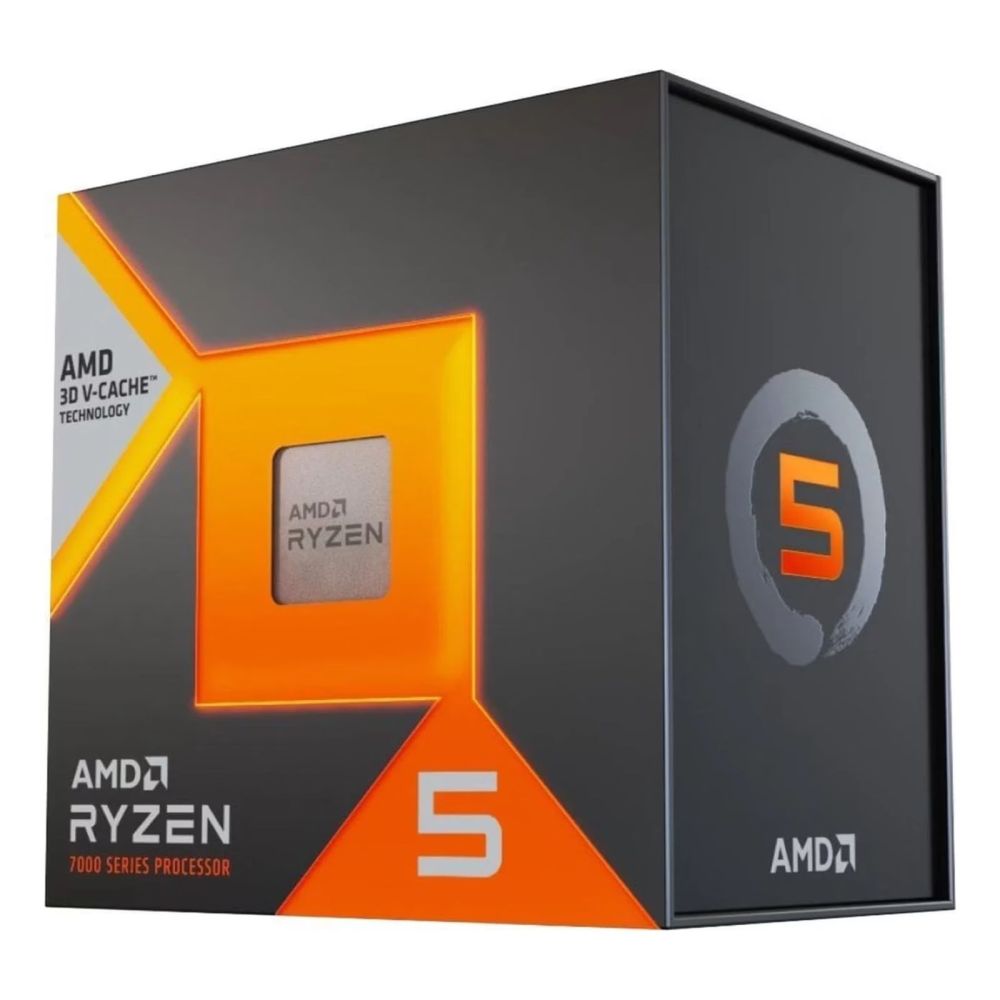

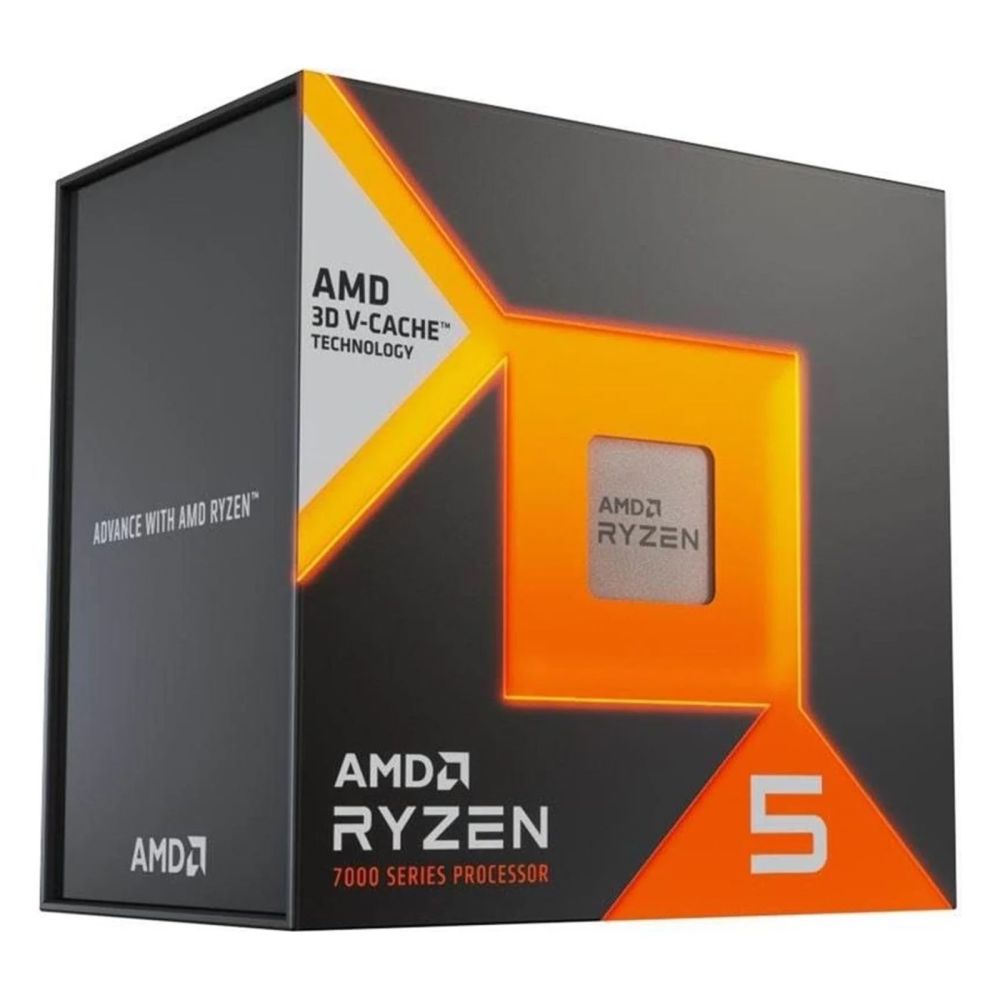

AMD 100-100001904WOF Ryzen 5 7500X3D 4.5 GHz AM5 102 Mainboard Cache content_copy

This article is a processor from the AMD Ryzen 5 7500X3D series, specifically designed for desktop use. It is designed for the AM5 socket and features an integrated graphics unit from the AMD Radeon family. The processor offers six cores and twelve threads, with a base frequency of 4.0 GHz and a turbo mode frequency of up to 4.5 GHz. The processor architecture is based on 5-nm lithography, enabling efficient performance and heat dissipation.

Applications
This processor is intended for use in desktop computers, particularly in systems requiring balanced performance with moderate power consumption. It is suitable for office applications, multimedia processing, and light to moderate gaming scenarios, especially when the integrated graphics are sufficient. Support for DDR5-SDRAM with a maximum clock frequency of 5200 MHz enables fast data transfer rates, which is beneficial for modern applications and operating systems.

Functions and Features in Detail
The processor features a 102 MB L3 cache, which supports fast data processing, especially for applications accessing frequently used data. The L1 cache size is 0.384 MB, while the L2 cache comprises 6144 KB. This cache structure supports efficient data retrieval and reduces access times. The maximum internal memory capacity supported by the processor is 128 GB, with the memory type being DDR5-SDRAM. Support for two memory channels enables higher bandwidth and improves system performance.

Technology Explained Simply
5-nm lithography is an advanced manufacturing technology that allows for higher transistor density, resulting in better energy efficiency and lower heat generation. The TDP (Thermal Design Power) is 65 W, meaning the processor generates a maximum heat output of 65 watts under normal operating conditions. This is an important value for cooling and selecting appropriate fans or coolers. The integrated graphics unit from the AMD Radeon family enables display output without an additional graphics card, which is advantageous for entry-level or cost-efficient systems.

Compatibility and Accessories
The processor is compatible with motherboards featuring the AM5 socket. It supports PCIe 5.0 with 28 lanes, enabling high bandwidth for storage devices and expansion cards. The use of DDR5-SDRAM with a maximum clock frequency of 5200 MHz requires motherboards that support this specification.

Mounting and Installation
Installation is performed on motherboards with the AM5 socket. The installation requires correct alignment of the processor in the socket and secure locking. The installation is carried out in a desktop computer, with power supplied via the motherboard.

Advantages in Operation
The processor offers balanced performance with a high number of threads, which is beneficial for multitasking and parallel processes. The integrated graphics reduces the need for a separate graphics card, lowering system costs. Support for DDR5-SDRAM and PCIe 5.0 enables high system performance, especially with modern applications. The TDP of 65 W ensures moderate heat generation, simplifying cooling and increasing operational reliability.

General
Processor family	AMD Ryzen 5
Socket	AM5
Cores	6
Threads	12
Base frequency	4.0 GHz
Turbo frequency	4.5 GHz
L3 cache	102 MB
L1 cache	0.384 MB
L2 cache	6144 KB
Lithography	5 nm
TDP	65 W
Memory type	DDR5-SDRAM
Max. memory	128 GB
Memory channels	Dual-channel
Max. storage clock frequency	5200 MHz
PCIe version	5.0
PCIe lanes	28
Integrated graphics	AMD Radeon
Market segment	Desktop

---
