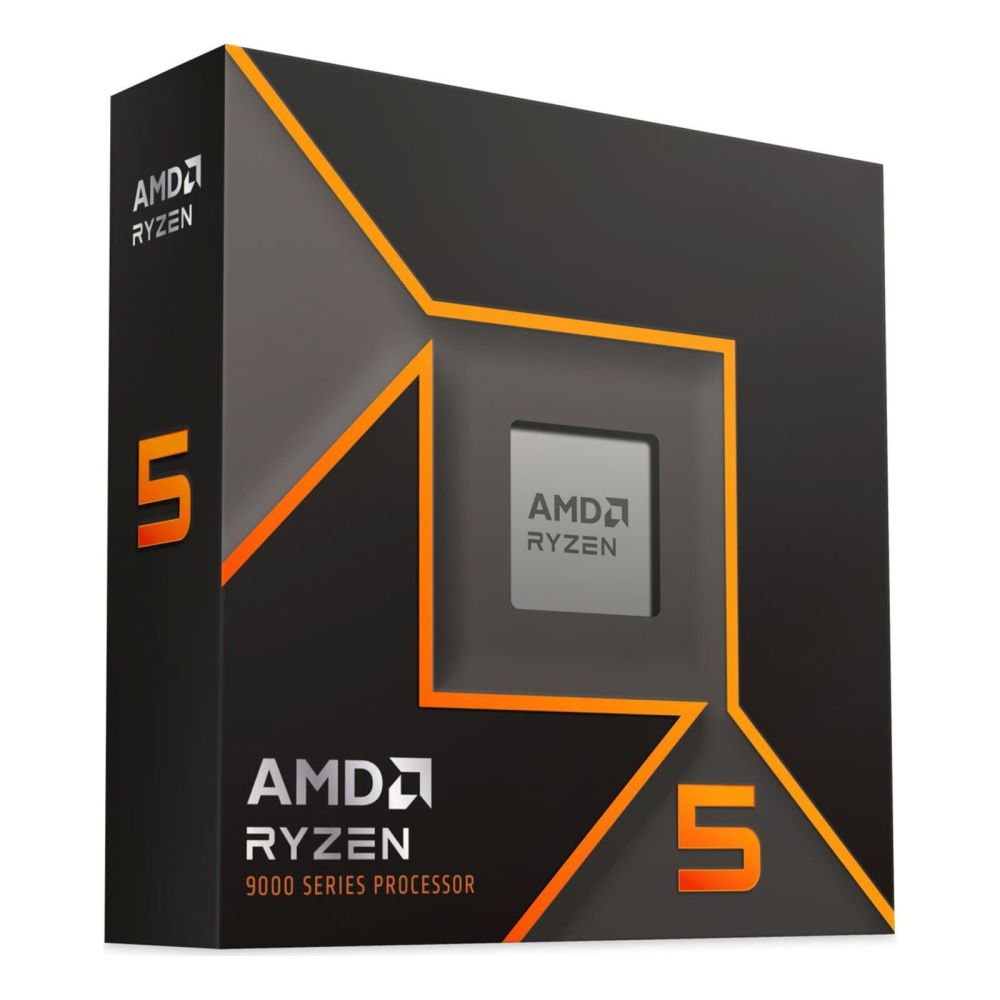

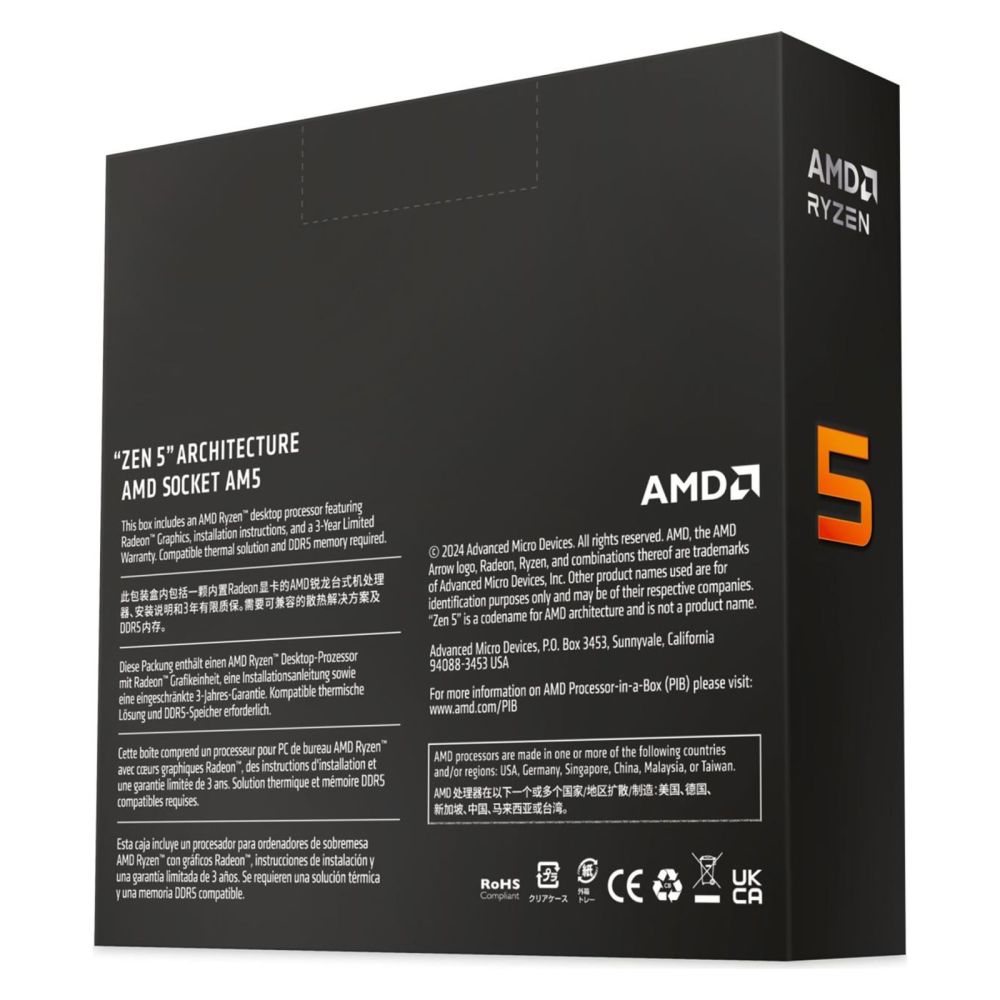

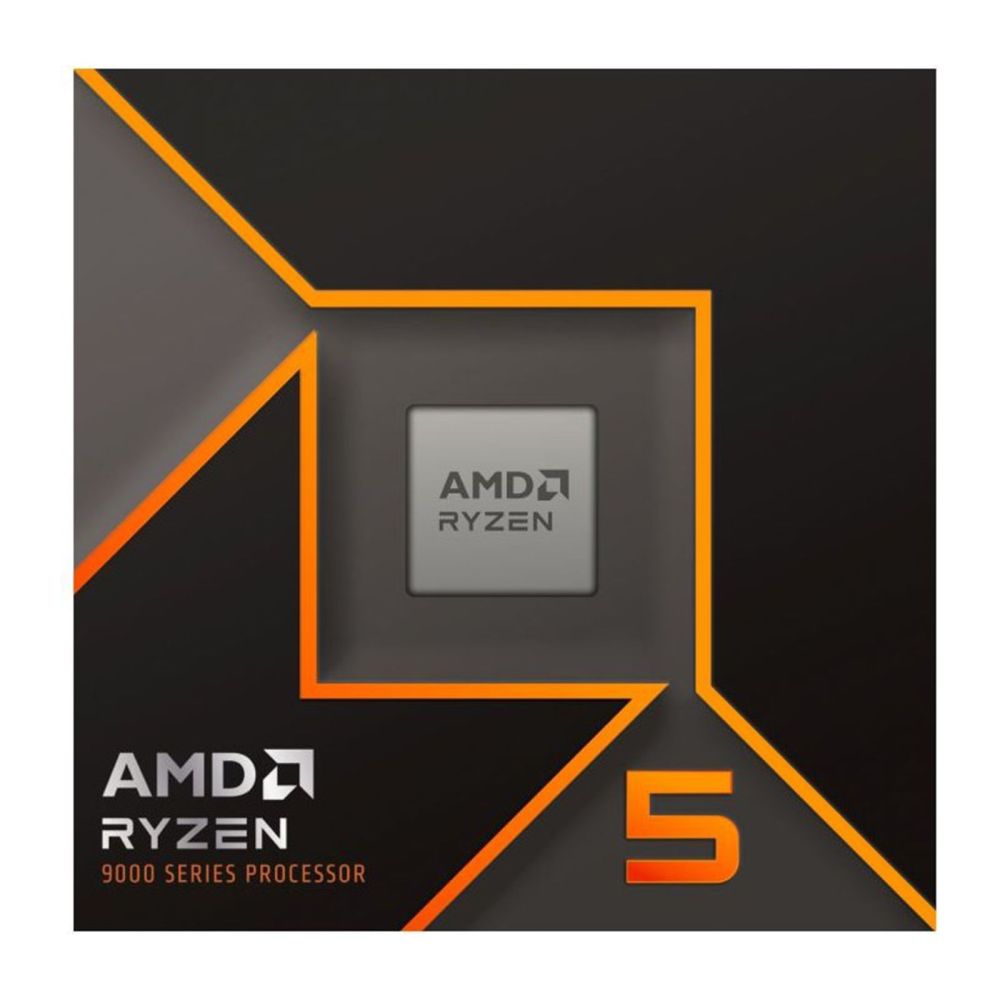

CPU AMD RYZEN 5 9600X / AM5 / WOF AMD RYZEN 5 9600X (6/12x 3.9 GHz) AM5 38MB 65W content_copy

The product is a processor from the AMD Ryzen 5 series, model 9600X, designed for the AM5 socket. It serves as the central computing component for desktop computers and is intended for use in systems with motherboards that support the AM5 socket. The processor features six cores and twelve threads, making it suitable for tasks requiring high parallel processing. It operates at a base frequency of 3.9 GHz and reaches a turbo frequency of 5.4 GHz under load conditions. The integrated graphics are based on AMD Radeon technology and enable screen output without an additional graphics card. Memory support includes DDR5-SDRAM with a maximum clock rate of 5600 MHz, and the processor can manage up to 192 GB of RAM across two channels. The chip's lithography is 4 nm, enabling efficient performance and low heat generation. The thermal design power (TDP) is 65 W, requiring moderate cooling. The processor supports various instruction sets, including AES, AVX, AVX 2.0, AVX-512, SSE, SSE2, SSE3, SSE4.1, SSE4.2, and SSSE3, making it suitable for cryptographic calculations, multimedia applications, and scientific simulations. The integrated graphics operate at a base frequency of 2200 MHz. USB support includes versions 2.0 and 3.2 Gen 2 (also referred to as 3.1 Gen 2). PCIe support is limited to version 4.0 with four lanes. The CPU features a 38 MB L3 cache, enhancing access speed to frequently used data. The processor family is part of the AMD Ryzen 5 series, developed for balanced performance in mid-range systems.

Applications

The processor is designed for use in desktop computers, particularly in systems based on motherboards with the AM5 socket. It is suitable for office applications, multimedia processing, light to moderate graphic editing, and systems utilizing integrated graphics. Support for DDR5-SDRAM and PCIe 4.0 enables a modern system architecture. The integrated Radeon graphics allow operation without an additional graphics card, which is advantageous for entry-level or cost-efficient systems.

Features and Specifications in Detail

The processor has six physical cores and twelve logical threads, enabled by Hyper-Threading technology. The base frequency is 3.9 GHz, with the turbo frequency reaching up to 5.4 GHz depending on load and cooling conditions. The 38 MB L3 cache supports fast access to frequently used data and improves overall performance. The integrated graphics are based on AMD Radeon technology and operate at a base frequency of 2200 MHz, sufficient for basic graphics applications and screen output. Support for DDR5-SDRAM with up to 5600 MHz clock rate and up to 192 GB of memory across two channels ensures high bandwidth and capacity. Support for instruction sets such as AVX-512 and AES expands usability in areas like cryptography and scientific computing.

Technical Explanation

The 4 nm lithography refers to the chip manufacturing technology, enabling higher transistor density and thus more efficient performance. The TDP of 65 W describes the maximum thermal power consumption under full load. This value is crucial for selecting an appropriate heatsink, as the processor is delivered without an integrated cooler. The integrated graphics (Radeon) allow screen output without an additional graphics card, which is beneficial for budget-limited or entry-level systems. Support for DDR5-SDRAM with high clock rates ensures fast data transfer between CPU and RAM. PCIe support at level 4.0 x4 enables connection to fast storage or network devices.

Compatibility and Accessories

The processor is compatible with motherboards featuring the AM5 socket. Use requires a motherboard supporting this socket, as well as a suitable heatsink, since the processor is delivered without cooling. Support for DDR5-SDRAM up to 5600 MHz requires corresponding memory modules. The integrated graphics allow operation without an additional graphics card, although performance is limited. USB support includes versions 2.0 and 3.2 Gen 2, enabling connection to modern peripheral devices. PCIe support at level 4.0 x4 is sufficient for connecting to fast storage or network devices.

Installation and Mounting

Installation involves inserting the processor into the AM5 socket on the motherboard. Correct alignment (usually indicated by a notch or marking) must be ensured. After insertion, the socket is locked. Heatsink mounting follows the manufacturer’s instructions for the specific cooler. Power supply is via the motherboard, with the TDP of 65 W to be considered. Connection to memory modules is done through the motherboard’s DIMM slots, with DDR5-SDRAM support and up to 5600 MHz to be taken into account.

Operational Advantages

The processor offers balanced performance for desktop use with six cores and twelve threads. The high turbo frequency of 5.4 GHz enables fast processing during short load peaks. The integrated Radeon graphics allow operation without an additional graphics card, reducing system costs. Support for DDR5-SDRAM with high clock rates ensures fast data transfer. Support for modern instruction sets expands usability across various application areas.

General
Processor family	AMD Ryzen 5
Socket	AM5
Number of cores	6
Number of threads	12
Base frequency	3,9 GHz
Turbo frequency	5,4 GHz
L3 cache	38 MB
TDP	65 W
Memory type	DDR5-SDRAM
Maximum memory bandwidth	5600 MHz
Maximum internal memory	192 GB
Memory channels	Dual-channel
Integrated graphics	AMD Radeon
Graphics base frequency	2200 MHz
Lithography	4 nm
Supported command sets	AES, AVX, AVX 2.0, AVX-512, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSSE3
USB version	2.0/3.2 Gen 2
PCIe version	4.0
PCIe lanes	4
Type of delivery	WOF

---
