CPU AMD RYZEN 5 8600G AI / AM5 / BOX AMD RYZEN 5 8600G AI (6/12x 4.3 GHz) AM5 22MB 65W 100-100001237BOX content_copy

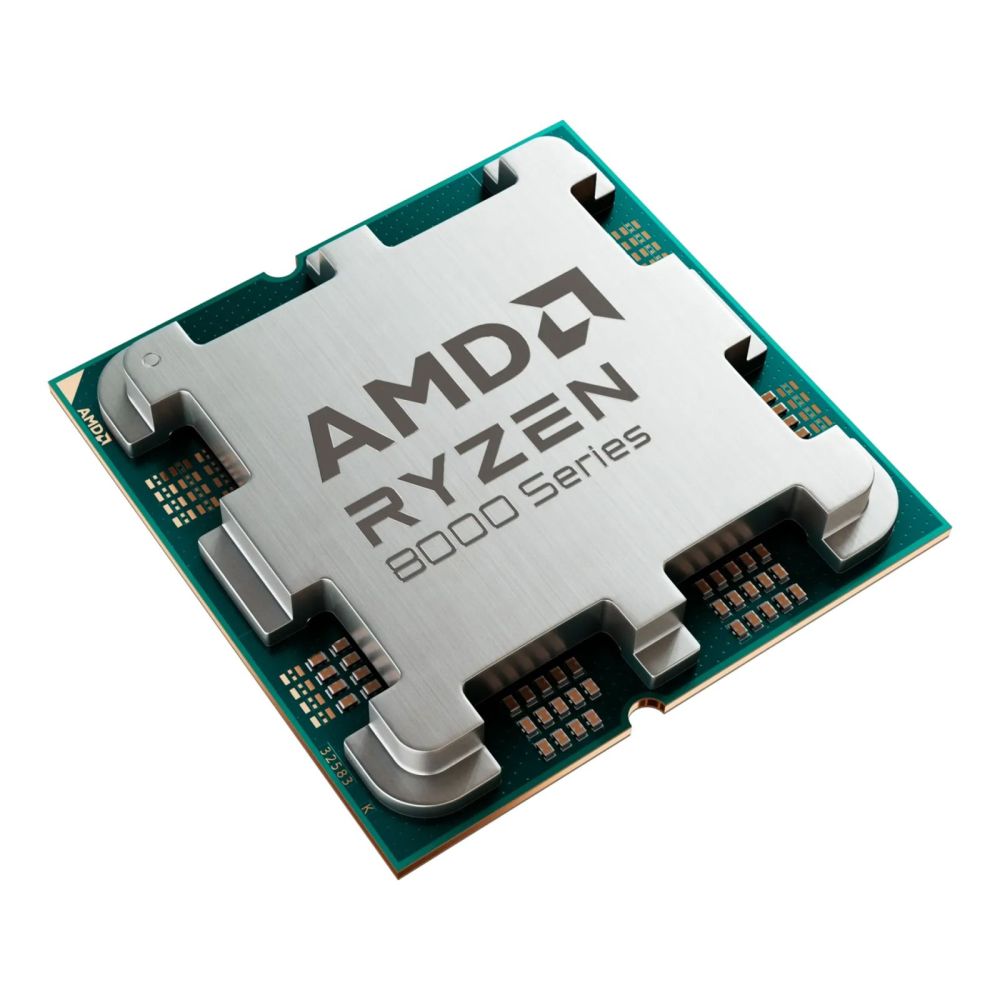

The AMD Ryzen 5 8600G is a desktop processor of the Ryzen 5 series, designed for the AM5 socket. It is intended for use in PC systems based on modern platform technology and offers a combination of CPU performance and integrated graphics. The processor features six cores and twelve threads, making it suitable for various applications in office and home environments. The integrated graphics unit AMD Radeon 760M enables video output without an additional graphics card, making it particularly advantageous for systems without a dedicated graphics chip.

Applications

The processor is designed for use in desktop computers and is suitable for general office applications, multimedia processing, web browsing, as well as light to moderate gaming. The integrated Radeon 760M graphics unit supports modern applications and enables content display in HD and 4K resolution, although performance for more demanding games is limited. Support for operating systems such as Windows 11/10 x64, RHEL x86 64-bit, and Ubuntu x86 64-bit makes it suitable for various use cases in both business and private environments.

Features and Specifications in Detail

The AMD Ryzen 5 8600G features a base frequency of 4.3 GHz and reaches a turbo frequency of up to 5.0 GHz when needed. These clock speeds enable efficient task processing, with the turbo function activated when sufficient cooling and power supply are available. The processor includes a 22 MB L3 cache, which reduces data access times and improves overall performance. The integrated AMD Radeon 760M graphics unit operates at a base frequency of 2800 MHz and supports modern graphics standards.

Technology Explained Simply

The processor is based on 4-nm lithography, enabling higher transistor density and thus more efficient power usage. The TDP (Thermal Design Power) is 65 watts, indicating moderate heat generation and allowing the use of a standard cooler. Support for DDR5-SDRAM with clock speeds up to 5200 MHz ensures fast memory access, which is particularly beneficial for multitasking and applications with high memory requirements. The PCIe 4.0 interface with x16 lanes enables connection to fast storage and graphics components.

Compatibility and Accessories

The processor is designed for motherboards with the AM5 socket and requires a compatible motherboard platform. Support for DDR5-SDRAM with clock speeds up to 5200 MHz is crucial for selecting the appropriate memory. The integrated AMD Radeon 760M graphics unit allows usage without an additional graphics card, enabling systems with reduced hardware complexity. Compatibility with operating systems such as Windows 11/10 x64, RHEL x86 64-bit, and Ubuntu x86 64-bit ensures broad applicability.

Installation and Mounting

The processor is delivered in box packaging, requiring installation on a motherboard with AM5 socket. Mounting involves inserting the processor into the socket and securing it with the retention lever. Installation does not require additional tools, although correct alignment of the processor and secure attachment of the cooling system are necessary to ensure stable operating temperatures.

Advantages in Operation

The AMD Ryzen 5 8600G offers balanced performance for desktop use, with the integrated graphics reducing the need for a separate graphics card. The 4-nm technology and 65-watt TDP ensure efficient power consumption, lowering operating temperatures and power usage compared to older generations. Support for DDR5-SDRAM with high clock speeds improves system responsiveness, especially in applications with high memory demands. Compatibility with various operating systems expands usage possibilities in different environments.

General
Processor family	AMD Ryzen 5
Socket	AM5
Cores	6
Threads	12
Base frequency	4,3 GHz
Turbo frequency	5,0 GHz
L3 cache	22 MB
TDP	65 W
Memory type	DDR5-SDRAM
Memory clock rates	3600, 5200 MHz
Graphics unit	AMD Radeon 760M
Graphics base frequency	2800 MHz
Lithography	4 nm
PCIe version	4.0
PCIe lanes	x16
Market segment	Desktop
Compatible operating systems	Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit

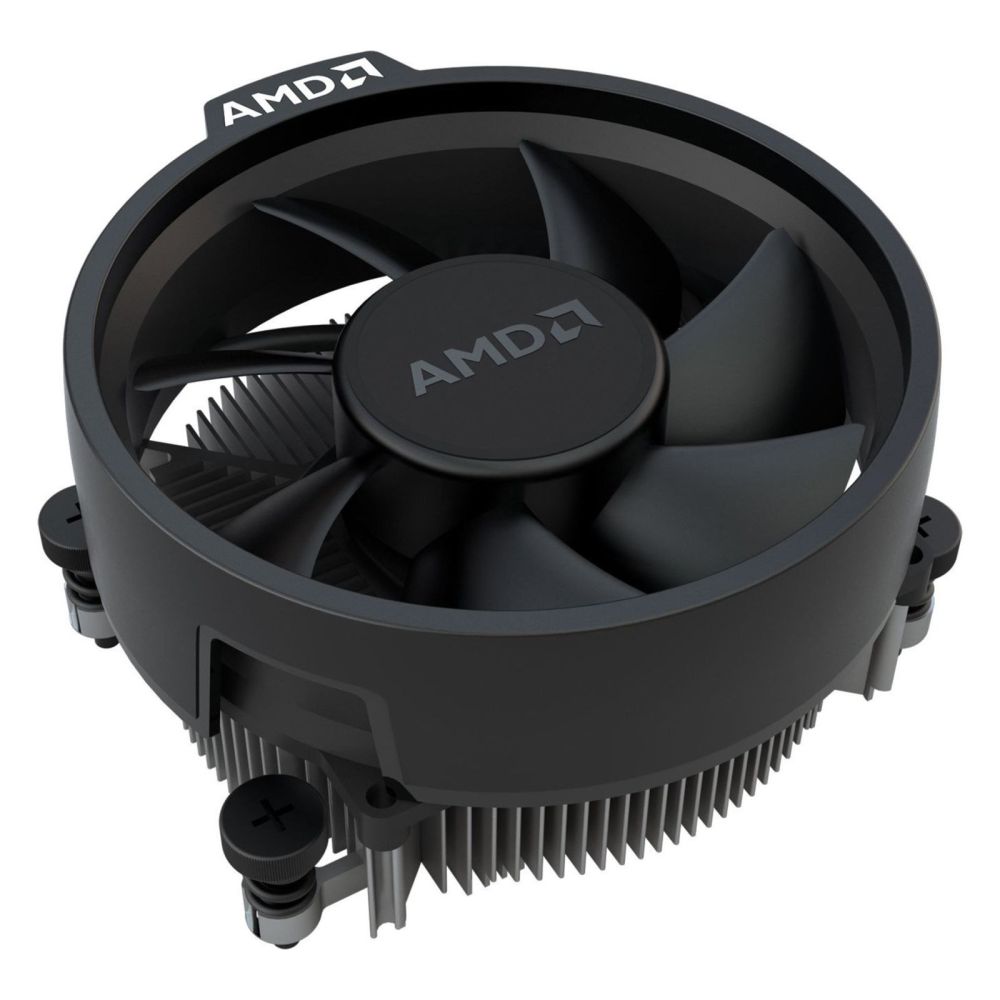

Scope of delivery	Processor, Wraith Stealth Cooler

---
