ALLNET Touch Display Tablet 5 inch PoE with 2GB/16GB, RK3566 Android 11
|
-16% 204,06 EUR 242,10 EUR |
|
|
( 242,83 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1893210 |
|---|---|
| Mfg Part No: | UD5RK3566A13 |
| UPC/EAN: | 4038816208835 |
| Weight: | 0.45 kg |
Product information for ALLNET UD5RK3566A13:

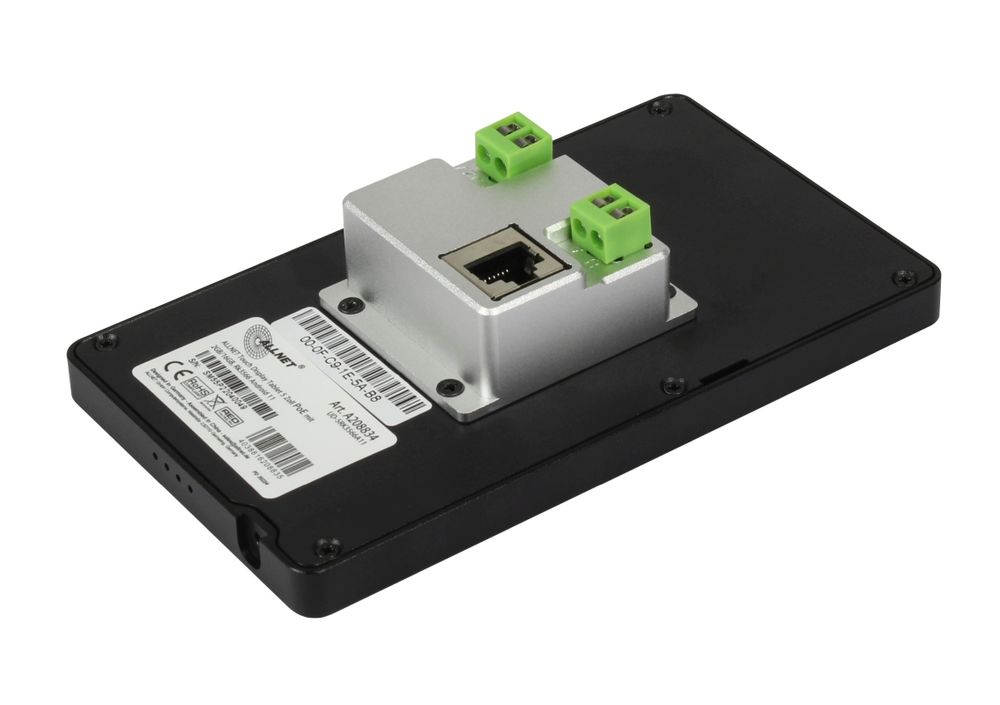

*Information: The light green connection plugs are not tight enough, dark green Phoenix terminals were also included for this. Either press it in very firmly or pinch off the locking lug.*
Built-in touch display with Rockchip RK3566 CPU and Android. 2GB Ram / 16GB Storage. Expandable via USB and SD cards. Resolution 720x1280, PoE (Power over Ethernet). Power supply 12-24V possible.
It can be mounted on round and square flush-mounted boxes.
The display is specially designed for applications in home automation, visualization and building control as well as for installation in control cabinets or for table installation.
If the display is very small, you can change it with the APP Easy DPI Changer. Here change the DPI number from 160 to 180,200,220 or 240. As required.
It is always advisable to test the devices for specific applications over the long term to ensure all required functions. Model NO. UD-5RK3566A11 Product Type 12,7 cm ( 5 inch ) POE Description System CPU/GPU Rockchip RK3566 quad core processor, CPU - Quad-core Arm Cortex-A55, GPU - Mali-G52EE GPU RAM 2GB ROM 16GB System Android 11 Display screen 5.0 inches IPS Panel resolution 1280x720 Wide viewing Contrast 1000 Brightness 350nits Network WiFi 802.11 b/g/n 2.4GHz Ethernet POE 15.4 Watt IEEE802.3af Bluetooth YES 3G Support external 3G USB dongle Jack SD Support SD card (Max 32G) Mini USB Mini USB USB Host USB-C Host 1x RJ-45 built in DC DC input 12V-24V Headset 3.5mm stereo headphone/micro output Multimedia Video Video decode – H.264/H.265/VP9
Video encode – 1080p60 H.264/H .265 Audio MP3/WMA/AAC etc. Picture jpeg, jpg other functions Wireless mouse Support Wireless keyboard Support Speak 1x1W Camera no OSD Language Multi language OSD operation attachment Adapter no Wall Bracket yes Vesa no Measurement LxWxH LxWxH: 146x83x33mm, Distance from Wall 10mm
Built-in touch display with Rockchip RK3566 CPU and Android. 2GB Ram / 16GB Storage. Expandable via USB and SD cards. Resolution 720x1280, PoE (Power over Ethernet). Power supply 12-24V possible.
It can be mounted on round and square flush-mounted boxes.
The display is specially designed for applications in home automation, visualization and building control as well as for installation in control cabinets or for table installation.
If the display is very small, you can change it with the APP Easy DPI Changer. Here change the DPI number from 160 to 180,200,220 or 240. As required.
It is always advisable to test the devices for specific applications over the long term to ensure all required functions. Model NO. UD-5RK3566A11 Product Type 12,7 cm ( 5 inch ) POE Description System CPU/GPU Rockchip RK3566 quad core processor, CPU - Quad-core Arm Cortex-A55, GPU - Mali-G52EE GPU RAM 2GB ROM 16GB System Android 11 Display screen 5.0 inches IPS Panel resolution 1280x720 Wide viewing Contrast 1000 Brightness 350nits Network WiFi 802.11 b/g/n 2.4GHz Ethernet POE 15.4 Watt IEEE802.3af Bluetooth YES 3G Support external 3G USB dongle Jack SD Support SD card (Max 32G) Mini USB Mini USB USB Host USB-C Host 1x RJ-45 built in DC DC input 12V-24V Headset 3.5mm stereo headphone/micro output Multimedia Video Video decode – H.264/H.265/VP9
Video encode – 1080p60 H.264/H .265 Audio MP3/WMA/AAC etc. Picture jpeg, jpg other functions Wireless mouse Support Wireless keyboard Support Speak 1x1W Camera no OSD Language Multi language OSD operation attachment Adapter no Wall Bracket yes Vesa no Measurement LxWxH LxWxH: 146x83x33mm, Distance from Wall 10mm
