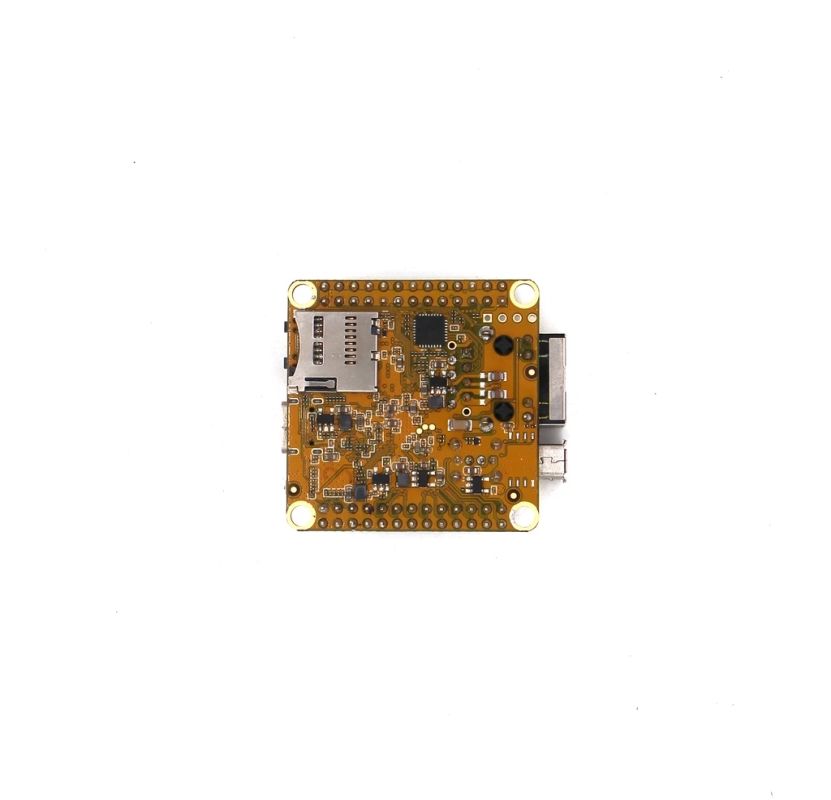

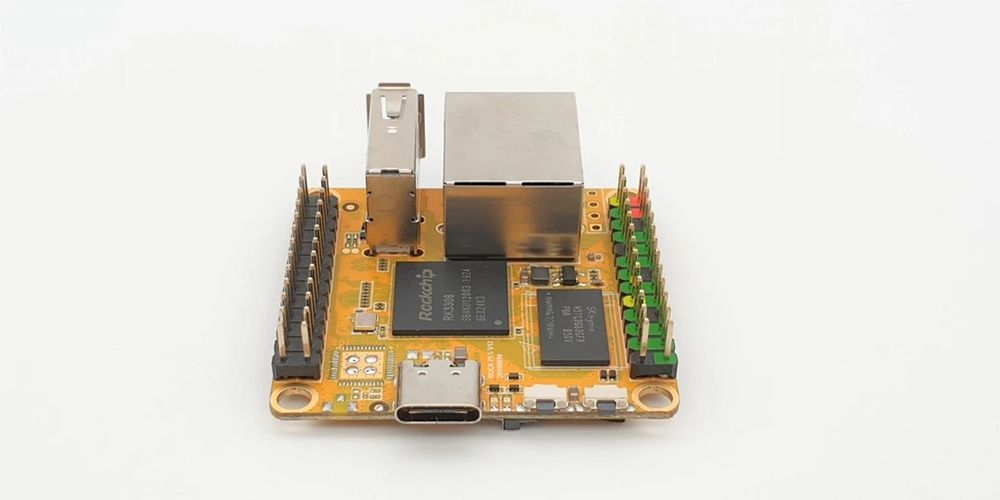

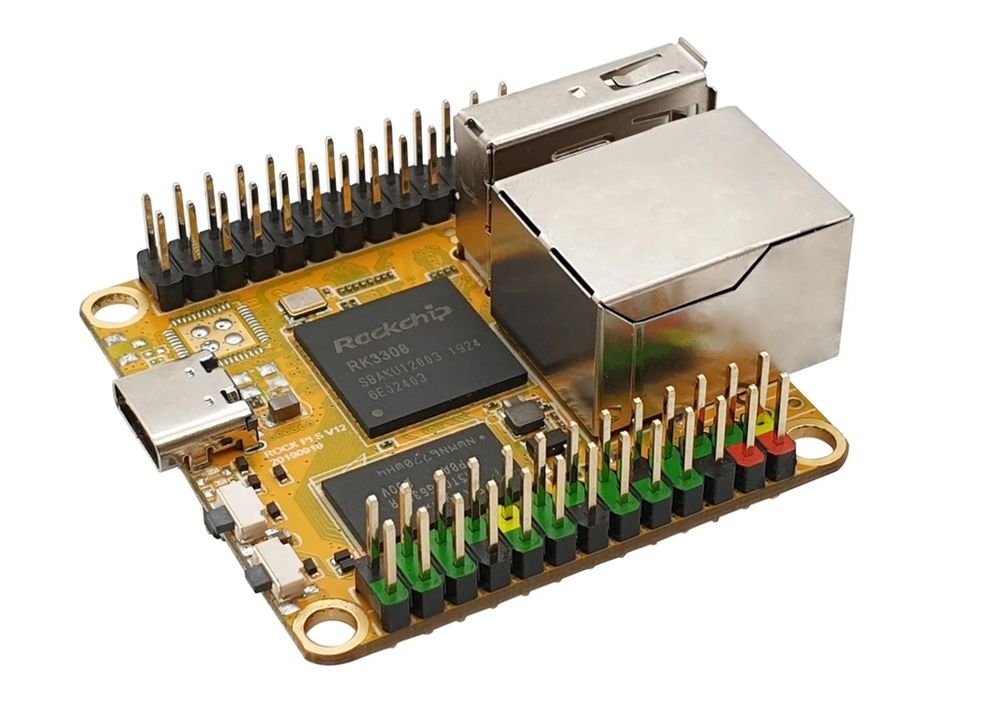

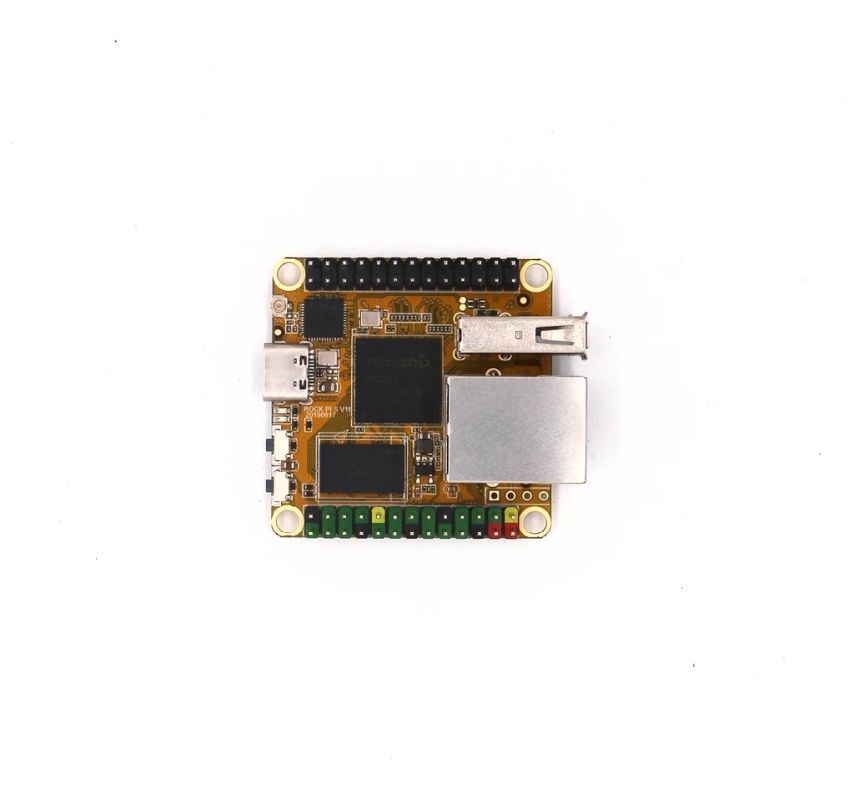

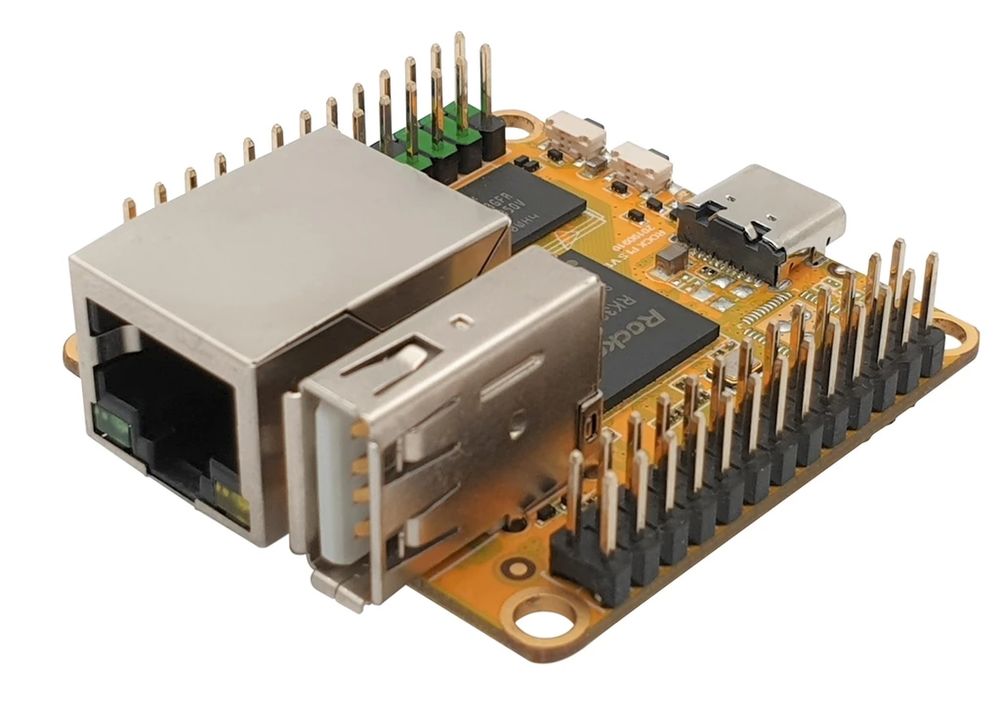

ALLNET RS308-D4WP
Rock Pi S - 512 MB, with BT and WiFi, (POE with POE HAT possible)
|
29,80 EUR |
|
|
( 35,46 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 1786700 |
|---|---|
| Mfg Part No: | RS308-D4WP |
| UPC/EAN: | 4038816091031 |
| Weight: | 0.15 kg |
Product information for ALLNET RS308-D4WP:
Rockchip RK3308 Quad A35 64bit processor with integrated VAD
512MB RAM version
USB 2.0 OTG (Type C) + USB 2.0 HOST (Type A)
RJ45 100MB Ethernet
optional PoE (additional HAT required)
802.11 b/g/n Wifi + Bluetooth 4.0 (rtl8723bs ) with external antenna connection
26-pin. GPIO connector strip
26-pin. Voice/audio connector strip with I2S, PCM, TDM, PDM, SPDIF and HDMI ARC
size 1.5x1.5 inches (~38.1x38.1mm)
Debian and Buildroot tested successfully
Optional - ROCK Pi S on-board memory version with 1Gb/2Gb/4Gb/4Gb/8Gb NAND Flash
PoE additional module is required if PoE is to be used.
4 different types available - please note the variants and the corresponding prices.
512MB RAM version
USB 2.0 OTG (Type C) + USB 2.0 HOST (Type A)
RJ45 100MB Ethernet
optional PoE (additional HAT required)
802.11 b/g/n Wifi + Bluetooth 4.0 (rtl8723bs ) with external antenna connection
26-pin. GPIO connector strip
26-pin. Voice/audio connector strip with I2S, PCM, TDM, PDM, SPDIF and HDMI ARC
size 1.5x1.5 inches (~38.1x38.1mm)
Debian and Buildroot tested successfully
Optional - ROCK Pi S on-board memory version with 1Gb/2Gb/4Gb/4Gb/8Gb NAND Flash
PoE additional module is required if PoE is to be used.
4 different types available - please note the variants and the corresponding prices.
