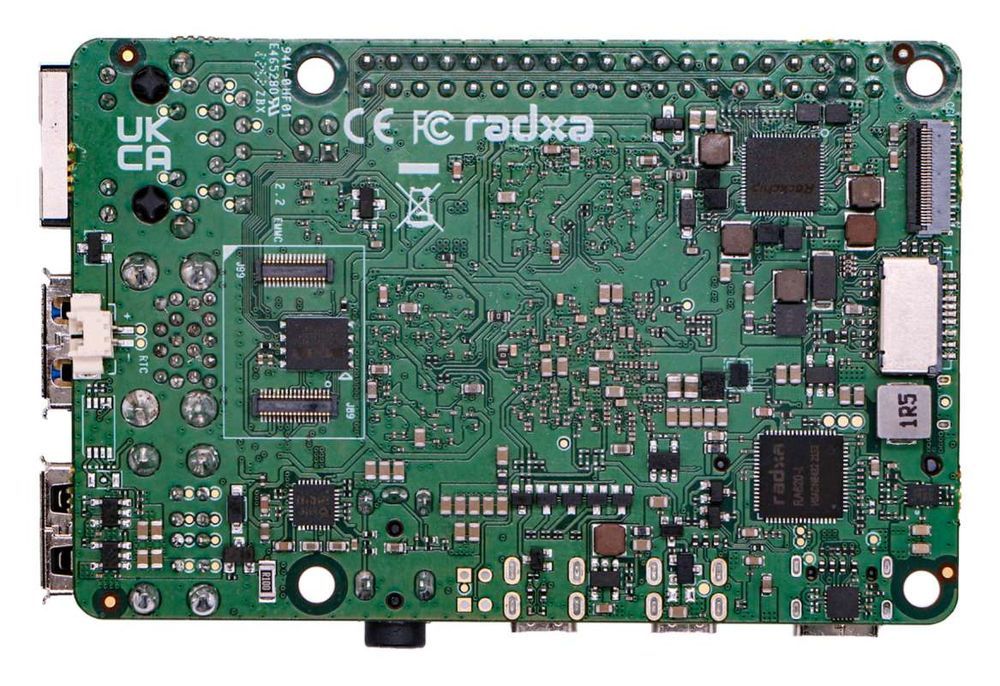

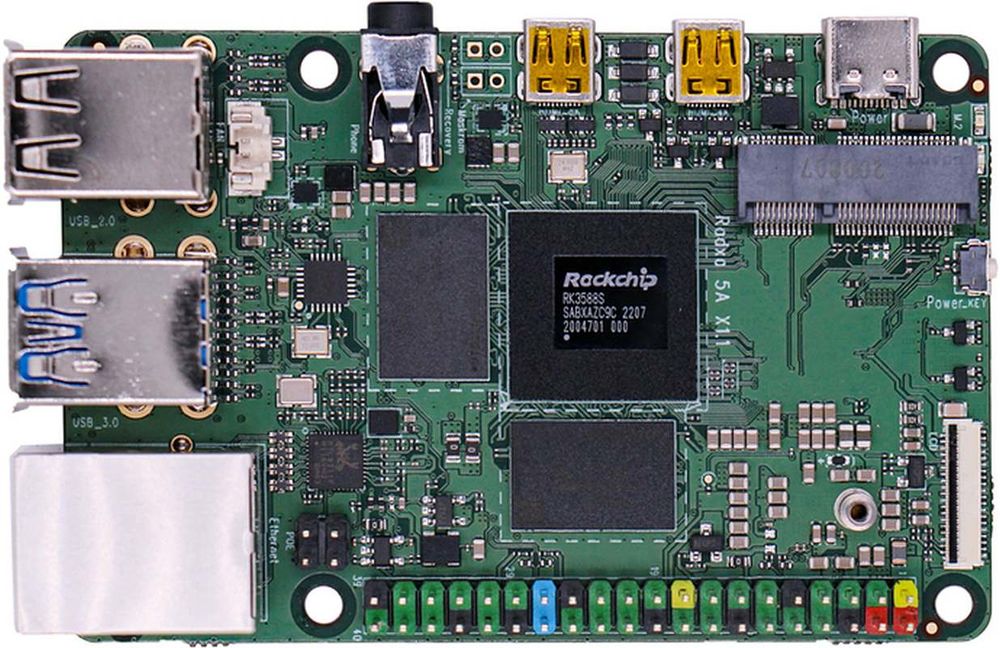

Radxa ROCK 5A RK3588 4GB LPDDR4

Rockchip RK3588 64bit octa core ARM based SBC
RADXA's latest generation SBC based on the Rockchip RK3588 in a compact form factor packed with a wide range of class-leading functionality, features and expansion options. They are available in various LPDDR4x RAM memory options (4, 8 and 16GB).
Rock5 Model A product details
RK3588S64bit octa core processor
Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm®
DynamIQ™ configuration
GPU
Arm Mali™ G610MC4 GPU supporting:
– OpenGL® ES1.1 , ES2.0, and ES3.2
– OpenCL® 1.1, 1.2 and 2.2
– Vulkan® 1.1 and 1.2
– Embedded high performance 2D image acceleration module
NPU
Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing
power is up to 6TOPs
Memory LPDDR4
64bits LPDDR4x RAM with 4, 8 or 16GB
SPI Flash
32MB SPI flash soldered
Display HDMI and MIPI DSI
Triple display support via two HDMI, and one MIPI DSI
H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps
H.264/H.265 multivideo decoder up to 8K@30fps
Interfaces
· 1x USB Type-C™ port for power supporting USB PD 2.0 and QC 2.0
· 1x Micro SD Card
· 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution)
· 2x USB2 Type A HOST ports
· 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
· 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT)
· 1x M .2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support
· 1x eMMC module connector for eMMC 5.1 support
· 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI)
· 1x LCD Display port ( four-lane MIPI DSI)
· Miscellaneous
– 1x RTC battery connector
– 1x PWM fan connector
– 1x Power button
– 1x Recovery pin, 1x Maskrom pin
– 1x Power LED, 1x User LED
·40 pin 0.1” (2.54mm) header supporting a wide range of interface options:
– Up to 5 x UART(2x with ?ow control)
– Up to 3 x SPI bus
– Up to 6 x I2C bus
– Up to 1 x PCM/I2S
– Up to 2 x SPDIF
– Up to 7 x PWM
– Up to 1 x CAN
– Up to 1 x ADC
– Up to 27 x GPIO
– 2 x 5V DC power in/out
– 2 x 3.3V power out
Software
· ArmV8 Instruction Set
· Debian/Ubuntu Linux support
· Android 12 support
· OpenFyde OS(Chromium OS fork) support
· RKNPU2 NPU software stack
· Hardware access/control library for Linux/Android
USB 3.0 HOST x3
1x USB-C
2x USB-A
Network
LAN
1GbE LAN with PoE support
*additional HAT is required for powering via PoE
WIFI
via optional WIFI module
Others
RTC battery connector for time backup
USB Type-C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V /2A
Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A
Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port
ROCK 5A has been designed to operate between 0°C to 50°C
Size 85mm x 56mm
